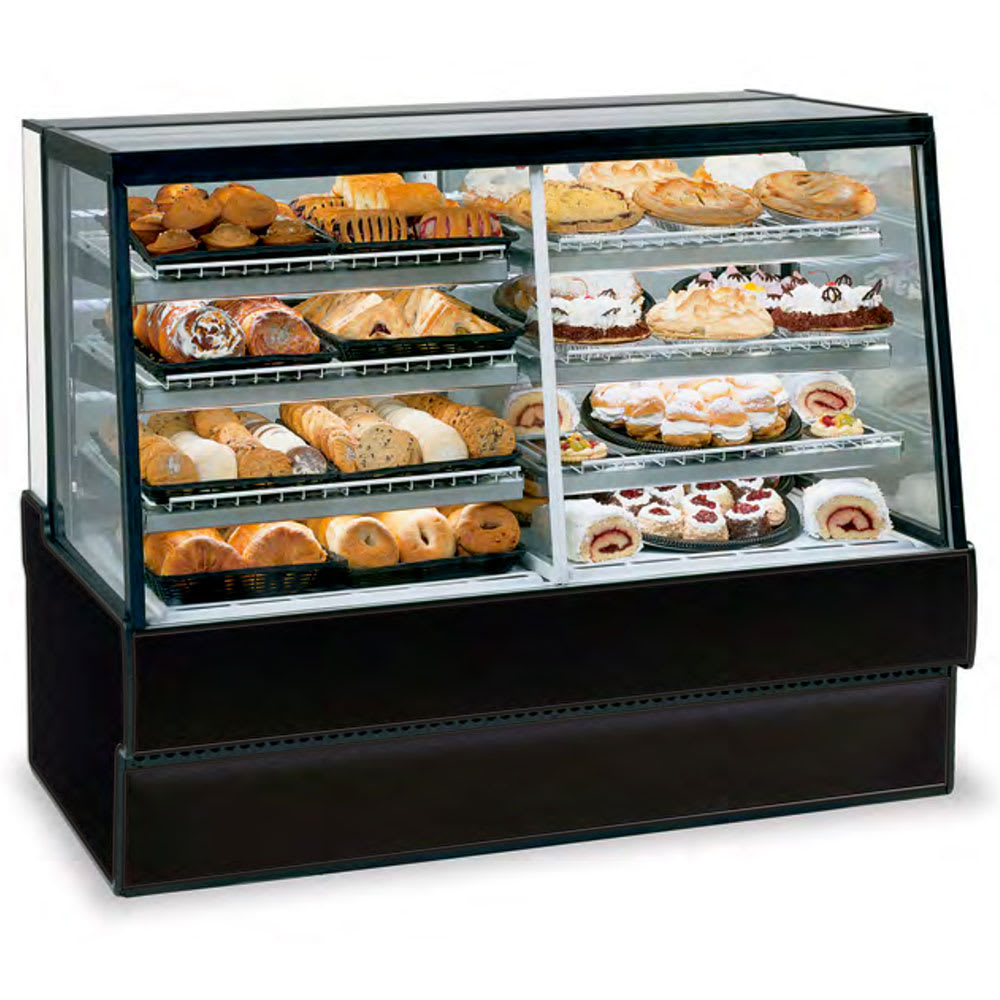

Federal SGR5948DZ 59" Full Service Bakery Case w/ Straight Glass - (4) Levels, 120v

KaTom #: 204-SGR5948DZBLK • MPN: SGR5948DZ BLK
  • 204-SGR5948DZBLK Primary Thumbnail Image

Typically ships in 3 - 4 weeks

Free Shipping Item

$16,250.00 /Each

  • Protect Your Product
  • Coverage starting at $151.65
  • Edit Remove

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

Christian Clark User Image
Ask a Foodservice Equipment Specialist

Federal SGR5948DZ Description

To display cheesecake, mousse, breads, and donuts in the same unit, the Federal SGR5948DZ High Volume bakery case's left side is refrigerated while its right side is non refrigerated. Using R513a refrigerant, the refrigeration system produces and maintains average temperatures between 38 and 40 degrees Fahrenheit. Staff can adjust temperature with the thermal controls, while the case's thermometer provides an accurate readout. To preserve product quality, the oversized coil and low-velocity fan system generate high humidity. This self-contained refrigeration system includes a condenser air filter, condensate evaporator, and rust-resistant insulated evaporator coil compartment—all of which can be accessed from the unit's back.

This dessert case measures 59 13⁄100 inches wide by 35 31⁄100 inches deep by 48 inches high and can be used as a stand-alone unit or be integrated into a continuous case lineup. To complement common decorative themes and case styles, its steel base sports a black trim and laminate finish, and its front, top, ends, and doors are made of durable tempered thermopane glass. For a full view of the LED-illuminated interior, the front glass is subtly sloped.

Both of the Federal SGR5948DZ dual-zone bakery case's sections feature a white, scratch-resistant display deck and three tiers of white wire shelves that can be raised, lowered, or tilted as inventory changes. To minimize shoplifting and product contamination while enhancing customer and employee interactions, two rear sliding glass doors grant access to the case's interior. For simplified cleanup, the front glass panel can be tilted out, and the shelves, shelf supports, shelf lights, and doors can be removed.

  • Part of the High Volume series
  • Dual-zone refrigeration: refrigerated left section and unrefrigerated right side
  • Full-service unit
  • Compatible with continuous case displays
  • 4 display levels
  • 3 tiers of adjustable white wire shelves
  • White, scratch- resistant display deck
  • LED top light and shelf lights
  • Clear tempered thermopane glass front, top, ends, and doors
  • Straight front glass is subtly sloped and can be tilted out
  • 2 rear sliding doors
  • Steel base with black laminate and trim
  • Accessible light switch
  • Adjustable leg levelers
  • Removable display deck, sliding rear doors, shelves, shelf supports, and shelf lights

  • Self-contained unit
  • R513a refrigerant
  • Average operating temperature: 38-40 degrees F
  • Thermometer and adjustable temperature control
  • Oversized coil and low-velocity fan generate high humidity
  • Insulated, rust-resistant evaporator coil compartment
  • Condenser air filter
  • Condensate evaporator included
  • Rear access to refrigeration system

  • 59 13⁄100 in. W x 35 31⁄100 in. D x 48 in. H
  • 9 A, 1⁄3 HP
  • 120 V/60 Hz/1 ph, NEMA 5-15P plug included

*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.

*Image may not depict product color, inclusions or accessories.

*Free shipping on Federal SGR5948DZ within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

High Volume Vertical Dual Zone Bakery Case Refrigerated Left Non-Refrigerated Right, 59-1/8"W x 35-5/16"D x 48”H, self contained refrigeration with condensate evaporator, adjustable temperature control, sloped thermopane tilt-front glass, LED top light &lighted shelves, (3) tiers of adjustable white wire shelves, glass sliding rear doors, white interior, tempered glass ends, black laminate with black trim, designed for continuous lineups, 1/3 HP, cULus, UL EPH Classified, Made In USA, DOE 2017 compliant

Warranty Icon
1-year Parts & Labor; 5-year Compressor
