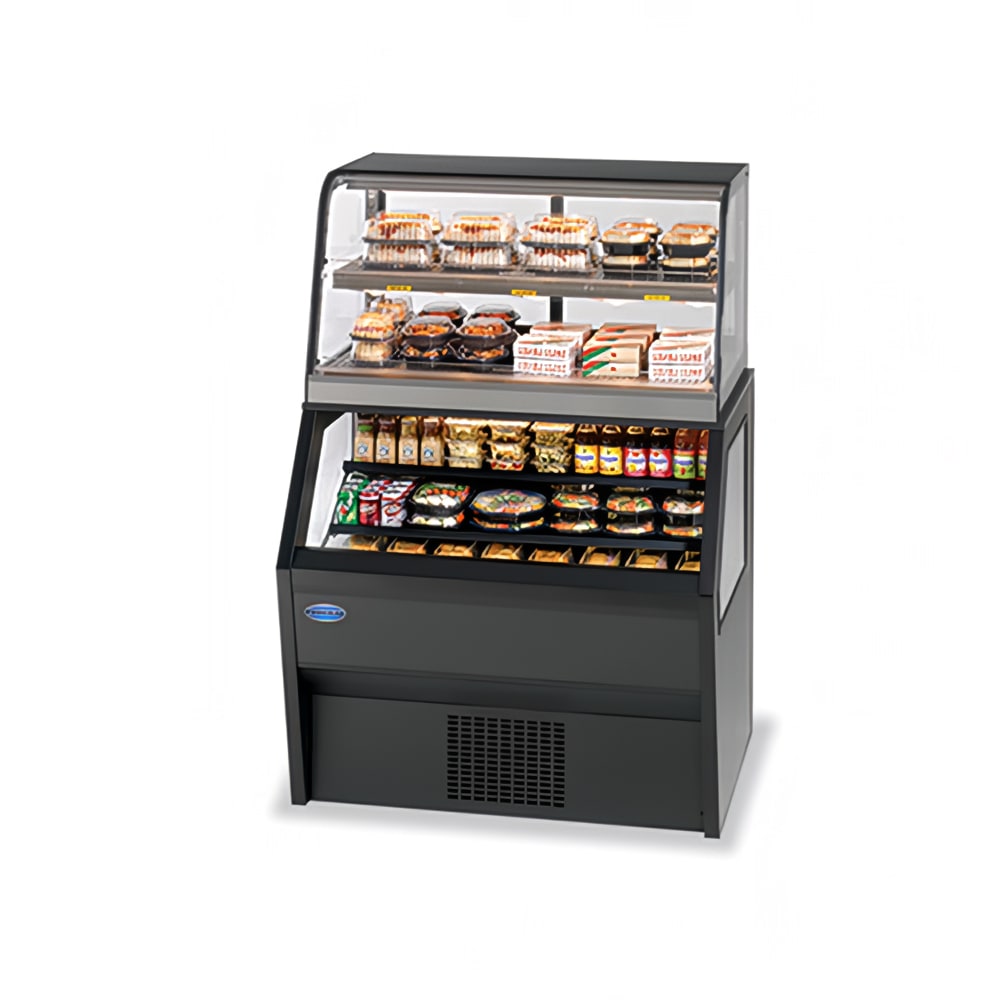

Federal CH4828/RSS4SC 48" Refrigerated Merchandiser w/ Hot Service Top, Black
Typically ships in 3 - 4 weeks
$16,124.00 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Federal CH4828/RSS4SC Description
To display an array of products in one unit, the Federal CH4828/RSS4SC Specialty Display hybrid merchandiser features a refrigerated self-service base and hot service-top display. This 48-inch-wide by 39-inch-deep by 69 3⁄4-inch-high floor model's base features a black laminated exterior with a black trim, black interior, and glass ends for a sleek, neutral look. Horizontal top and front LED lights illuminate product displayed on the self-serve section's two black metal shelves to enhance presentation, and customers can quickly grab their purchase from the refrigerated open front. To hold contents at safe serving temperatures in this section, an integrated electronic control maintains temperatures between 38 and 40 degrees Fahrenheit.
So customers can clearly view hot merchandised foods, this Federal CH4828/RSS4SC vertical hybrid merchandiser's top section is encased in transparent glass and features incandescent top and shelf lights. Contents can be displayed on its two adjustable, heated stainless steel shelves and deck, while its two sliding rear doors grant direct access to stored items. To prevent pastries, pizzas, and donuts from drying out while they're displayed, an integrated humidified air system introduces moist, hot air; operators can monitor this section's temperature with the built-in thermometer.
- Total unit interior volume: 22.22 cu. ft.
- Part of the Specialty Display collection
- Hybrid configuration with refrigerated base and hot food display top
- Floor model
- Interior volume: 9.72 cu. ft.
- Black laminated exterior with black trim
- Black interior
- Transparent tempered glass ends
- Open front
- LED horizontal top and front light
- 2 black metal shelves
- R513a refrigerant
- Electronic temperature control system
- Temperature range: 38-40 degrees F
- For ambient temperatures as high as 75 degrees F and 55 percent relative humidity
- Average product temperature: 38 degrees F
- Interior volume: 12.5 cu. ft.
- 2 adjustable, heated stainless steel shelves
- Stainless steel deck
- Sliding rear doors
- Black trim
- Incandescent top and shelf lights
- Humidified air system prevents dry products
- Thermometer
- Hot service top: 47 in. W x 25 1⁄10 in. H
- Refrigerated base: 47 in. W x 44 5⁄8 in. H
- Overall: 48 in. W x 39 in. D x 69 3⁄4 in. H
- Refrigerated self-serve bottom display:
- 16 A, 1⁄2 HP
- 120 V/60 Hz/ 1 ph, cord with NEMA 5-20P plug
- Hot service top:
- 12.5 A
- 120 V/60 Hz/1 ph, cord with NEMA 5-15P plug
*Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
*Image may not depict product color, inclusions or accessories.
*Free shipping on Federal CH4828/RSS4SC within the 48 contiguous states.
From The Manufacturer
Specialty Display Hybrid Merchandiser Refrigerated Self-Serve Bottom With Hot Service Top, 48"W x 39"D x 69.75”H, refrigerated self-serve bottom: black laminated exterior with black trim, horizontal top & front light, (2) tiers of black metal shelves with black interior, tempered glass ends, Hot top: front glass with black trim, top light with lighted shelves, stainless steel deck with humidified air system, adjustable stainless steel heated shelves, sliding rear doors, 1/2 HP, cULus, UL EPH Classified, Made In USA, DOE 2017 compliant
Watch a video about this product
Federal CH4828/RSS4SC Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Federal |
| Access | Dual Service |
| Color | Black |
| Depth (in) | 39 |
| Door Type | Sliding |
| Height (in) | 69.75 |
| Hertz | 60 |
| Number of Levels | 5 |
| Phase | 1 |
| Product | Deli Cases |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Service Type | Self Service |
| Shelving Type | Metal |
| Style | Curved Glass/Open |
| Use | Packaged Goods |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor; 5-year Compressor |
| Width (in) | 48 |
| Weight | 935.00 |
