Vollrath 3640761 Drop-In Hot Food Well w/ (4) Full Size Pan Capacity, 208 240v/1ph
$4,305.75 /Each
Call for details!
Non Returnable Item
Attention: Order by 07-01-2026 to save before the price increases!
Vollrath 3640761 Description

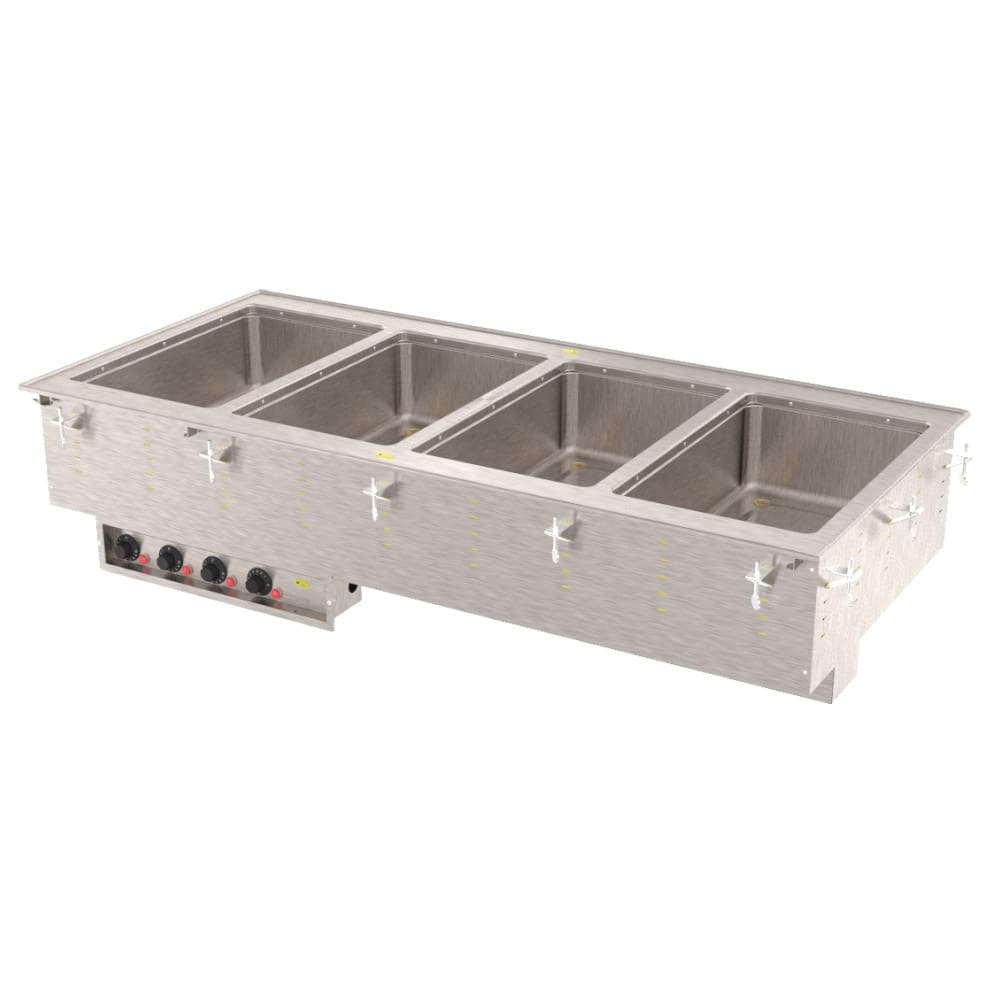

The Vollrath 3640761 drop-in hot food well is a top-mount unit designed for wet operation to maintain consistent temperatures for hot food holding across multiple menu items. Its four full-size pan capacity is supported by individual stainless steel wells that accommodate standard 12-inch by 20-inch pans, while infinite controls with power indicator lights provide adjustable heat for each well. An autofill system helps regulate water levels, and the stainless steel top with a drip-free flange works with the copper manifold drain system to manage water during operation.
- 4 full-size pan capacity
- 4 sealed stainless steel hot food wells
- Wet operation required for even heating
- Infinite controls with power indicator lights
- Autofill system maintains water levels
- Stainless steel top and interior liner
- Galvanized steel exterior housing
- Fully insulated wells
- 1-in. copper manifold drain with individual well shutoffs and manifold shutoff
- Top-mount drop-in installation
- Accommodates 12 in. x 20 in. pans
- Includes positioning clips
- 14.4-16.7 A, 4,000 W
- 208-240 V/60 Hz/1 ph, cord with a NEMA 6-30P plug
*Image may not depict product color, inclusions or accessories.
*Free shipping on Vollrath 3640761 within the 48 contiguous states.
From The Manufacturer
Hot Food Well Unit, Drop-In, electric, (4) 12" x 20" individual 20 gauge stainless steel insulated wells, 54-3/4"W x 26"D x 21-1/2"H (overall), wet operation only, auto-fill, individual infinite controls mounted in panel with cord, power indicator light, drip-free flange, 1" copper manifold drain with individual well shutoffs & manifold shutoff, 18 gauge stainless steel top, 18 gauge galvanized exterior housing, includes positioning clips, 4000 watts, 208-240v/60/1-ph, 14.4-16.7 amps, cord with NEMA 6-30P, NSF, cULus, Made in USA (54"W x 25-1/4"D cutout size, requires 7/8" corner radius)
Vollrath 3640761 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Vollrath |
| Accommodates | Full Size Pans |
| Controls | Infinite |
| Hertz | 60 |
| NEMA | 6-30P |
| Operation | Wet |
| Phase | 1 |
| Product | Hot Food Wells |
| Product Type | Food Bars & Buffets |
| Special Features | With Drain |
| Type | Hot |
| Voltage | 208/240 |
| Warranty | 1-year Parts & Labor |
| Weight | 187.00 |
