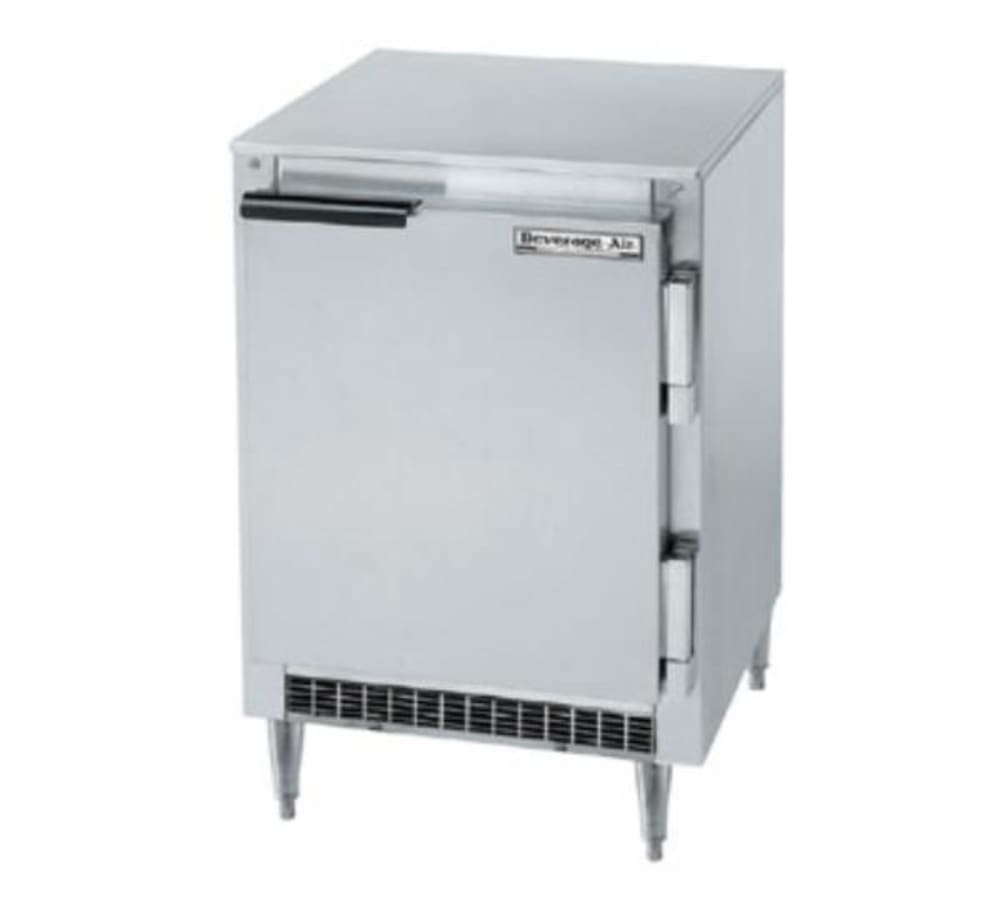

20in Undercounter Freezer, 1 Section/Door, 1/4 HP
Beverage Air - Model 118-UCF20
On 10/15/08, Beverage Air has a 4-7% price increase depending on product series.
 |
 |
| Model: UCF20 |
20" Undercounter Freezer,
1 Section/Door, 1/4 HP |
| General Specifications |
UCF- SERIES UNDERCOUNTER UNITS:
Whenever space is a limiting factor and health inspection approval is critical, compact, shallow-depth refrigerators and freezers have provided the answer. Single door freezers are only 20" wide by 21" deep. Overall, height on 6" legs supplied is 31".
|
CABINET CONSTRUCTION:
Models feature construction with stainless steel exteriors and anodized aluminum interiors. Doors are mounted on gravity self-closing hinges with 120 degree stay open position. Magnetic door gaskets are used to accomplish positive door sealing. Two epoxy coated wire shelves are provided behind each door.
|
REFRIGERATION:
Freezer models temperature is held below zero. Freezer model includes automatic electric defrosting. Refrigerant used is 404A in the freezer and is CFC free providing full compliance with environmental concerns.Cabinet insulation is foamed-in-place polyurethane for maximum energy conservation and structural integrity. It also is CFC free in providing compliance with environmental concerns.
|
Energy Efficiency/Compliance:
The manufacturer of this product has NOT
certified it to meet the California Energy Commission currently applicable
efficiency standards. Please
contact customer service for assistance in finding a similar product
that is certified to meet these standards if you desire a compliant product.
|
WARRANTY:
This product carries a 1 year parts and labor warranty with an additional 4 year warranty on the compressor.
|
|
|
|
|
Photo May Include Optional Accessories!
THIS PRODUCT TYPICALLY SHIPS
WITHIN 5 - 10 Days
|
| DIMENSIONAL DATA: UCF20 |
| Net Capacity (cubic ft.) |
2.7 |
| Net Capacity (liters) |
76 |
| Length overall (inches) |
20" |
| Length overall (mm) |
508 |
| Depth overall (inches) - Less Handle |
21" |
| Depth overall (mm) - Less Handle |
584 |
| Height overall - on 6" casters (inches) |
31" |
| Height overall - on 6" casters (mm) |
787 |
| Depth with door open 90" (inches) |
39 1/2 |
| Clear door opening (inches) |
16 x 18 1/2 |
| Number of Shelves |
2 |
| Number of Doors |
1 |
| ELECTRICAL DATA |
| Full load amperes 115/60/1 |
6.5 |
| Full load amperes 220/50/1 |
- |
| REFRIGERATION DATA |
| Refrigerant |
404A |
| Horsepower |
1/4 |
| WEIGHT DATA |
| Gross Weight (crated lbs) |
119 |
| Gross Weight (crated kg) |
54 |
|
Features, Options & Specifications Subject to Change Without Notice. |
|
|
|
|
|
State and local sales tax will be collected on the sale of Beverage-Air products
in all 50 states per the requirements from the Carrier Corporation and it's subsidiary Beverage-Air. The
sales tax will show on the automated invoice only for sales within the state of Tennessee. Read more about
sales tax collection by KaTom. |
Product Specifications
- Product Spec Sheet
- Crated Weight: 119.00 lbs.
- Category: Undercounter Refrigeration
- Doors/Drawers: 1 Door
- Door Type: Solid
- Length (in): 20
- Type: Freezers
- Manufacturer: Beverage Air
