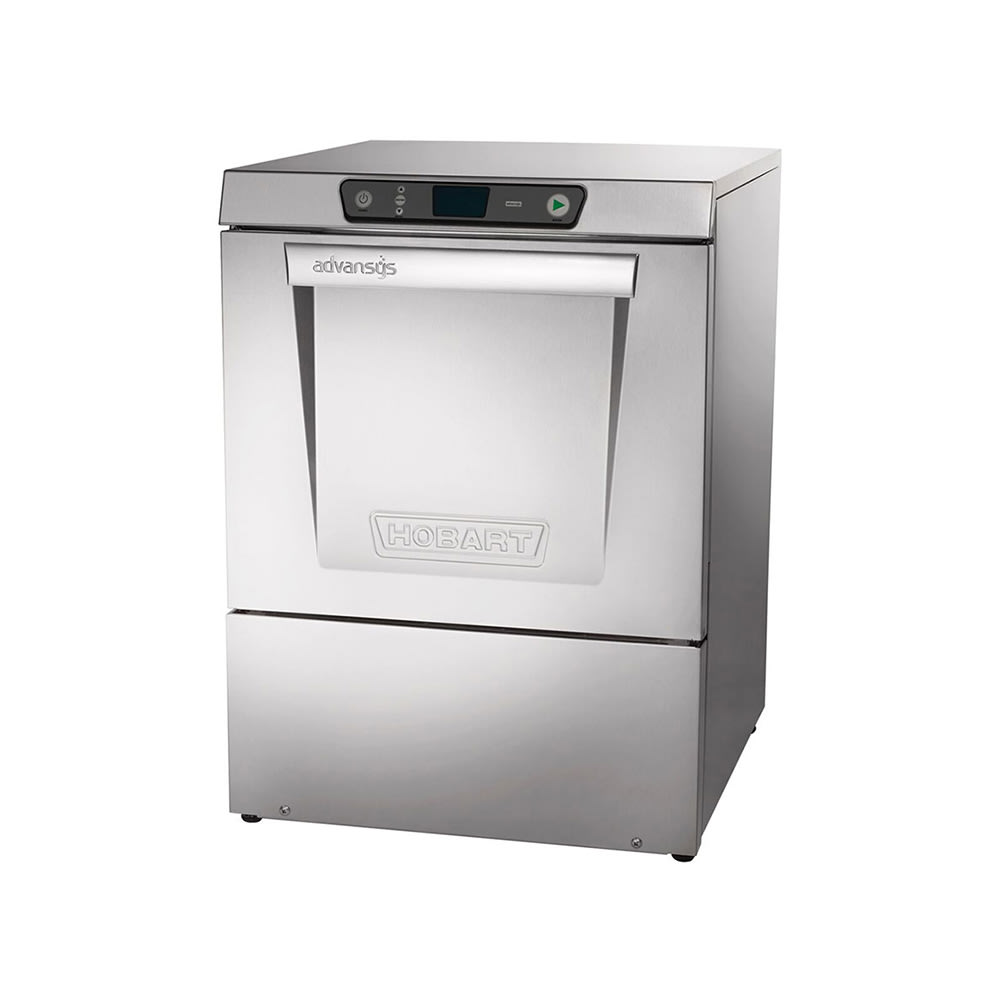

Hobart LXER-1 High Temp Rack Undercounter Dishwasher - (30) Racks/hr, 208-240v/1ph
Non Returnable Item
Hobart LXER-1 Description

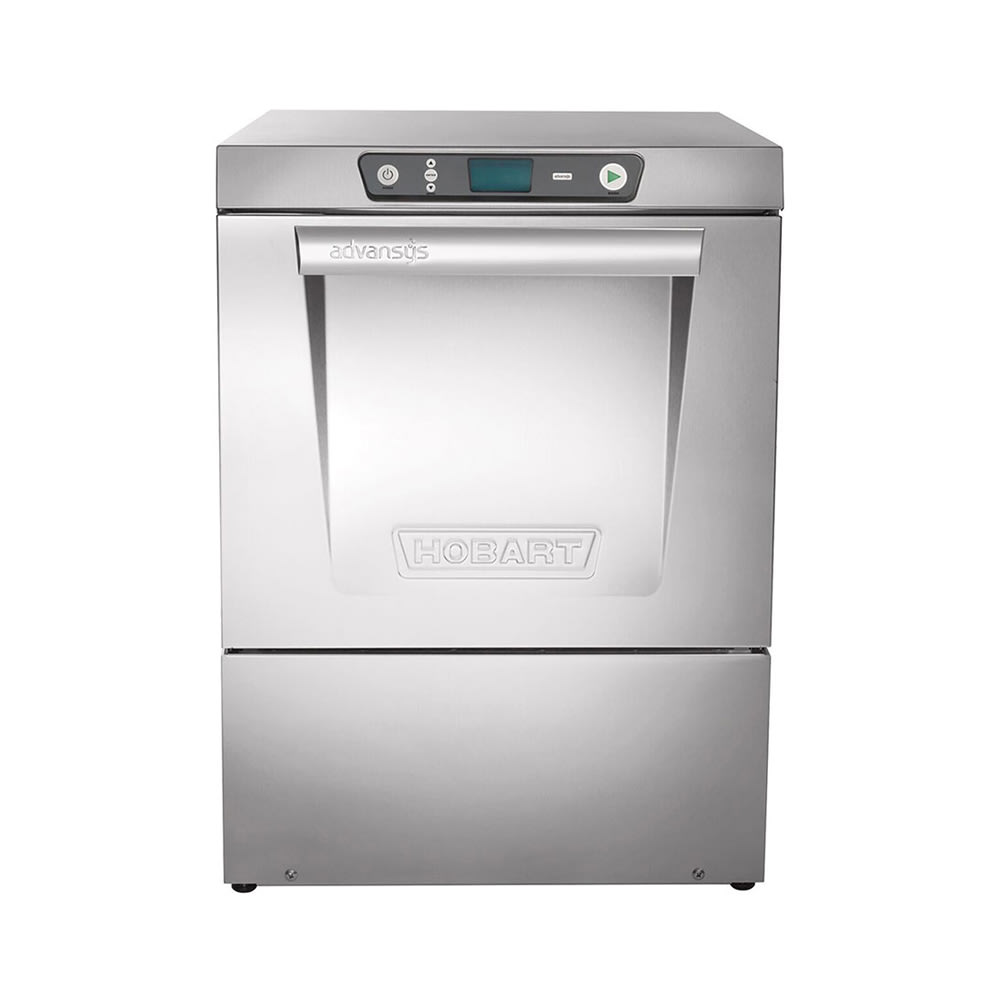

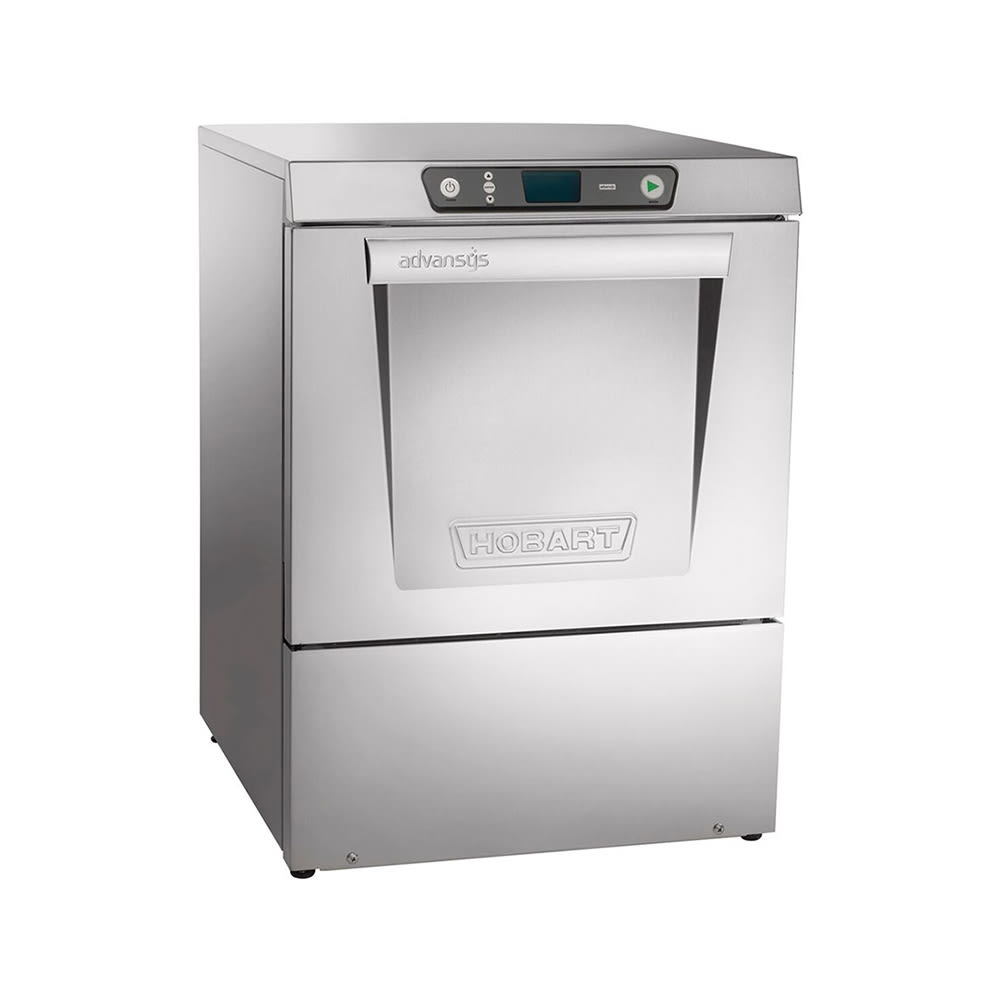

Using only 0.62 gallons of water per rack, the Hobart LXER-1 Advansys dishwasher can clean 30 racks per hour on its light wash setting. For more soiled wares, it features normal and heavy wash cycles, and operators can adjust the settings using top-mounted controls. A low-chemical indicator alerts users when replenishment is needed. As an undercounter model, this unit holds 20-inch by 20-inch racks and measures 23 15⁄16 inches wide by 26 13⁄16 inches deep by 32 1⁄2 inches high.

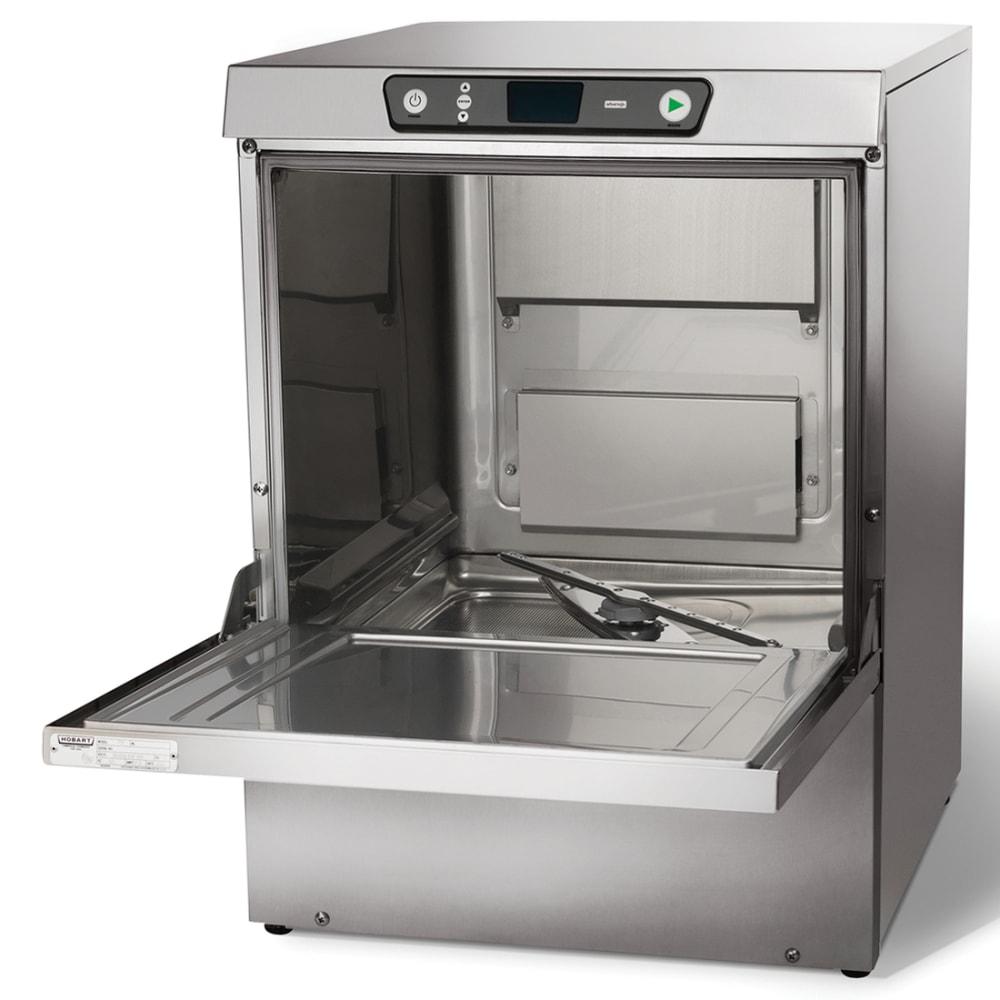

Built to support high-volume use, the Hobart LXER-1 undercounter dishwasher features a deep-drawn stainless steel tank and a corrosion-resistant pump. A stainless steel scrap screen traps food debris, and it can be removed, rinsed off, and replaced. To optimize sanitation and performance, it’s equipped with a dirty-water indicator and a sensor that detects clogs in the wash arm. Upon shutdown, it executes an automatic wash cycle of the machine’s interior. This unit fills automatically and features an automatic pumped drain to remove water after each cycle.
Product Details
- For undercounter placement
- Light wash cycle: 30 racks per hour
- Normal wash cycle: 24 racks per hour
- Heavy wash cycle: 13 racks per hour
- Uses 0.62 gal. of water per rack

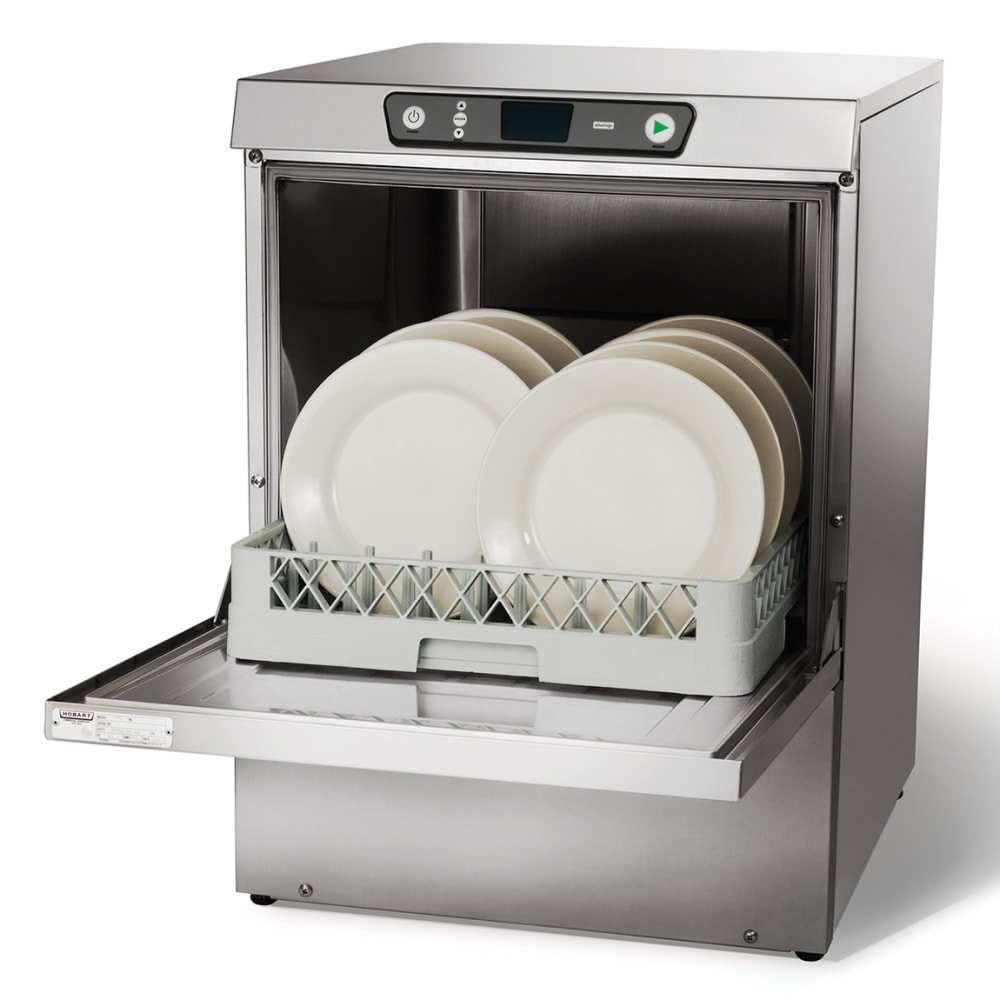

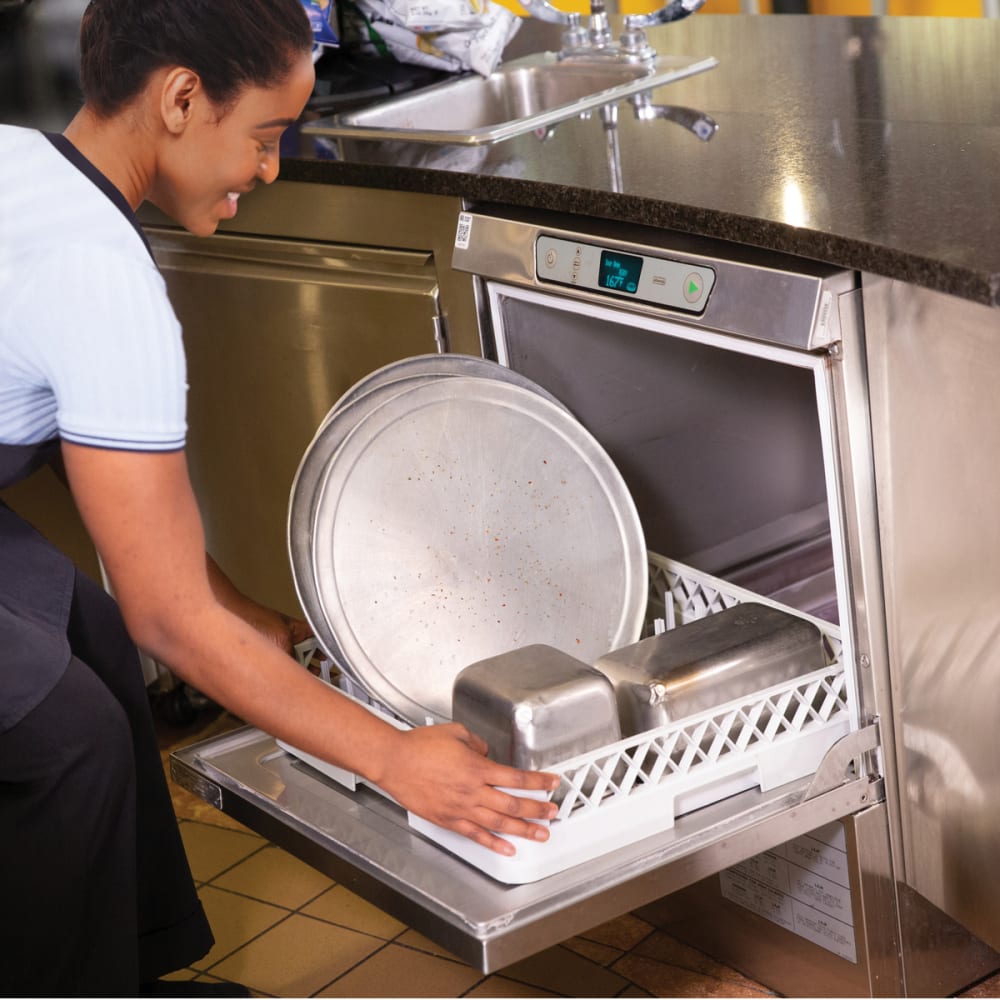

- Accommodates standard 20-in. x 20-in. racks
- Deep-drawn stainless steel tank
- Corrosion-resistant pump
- Stainless steel scrap screen is removable
- Automatic fill
- Energy-saver mode
- Dirty-water indicator
- Low-chemical alert indicators

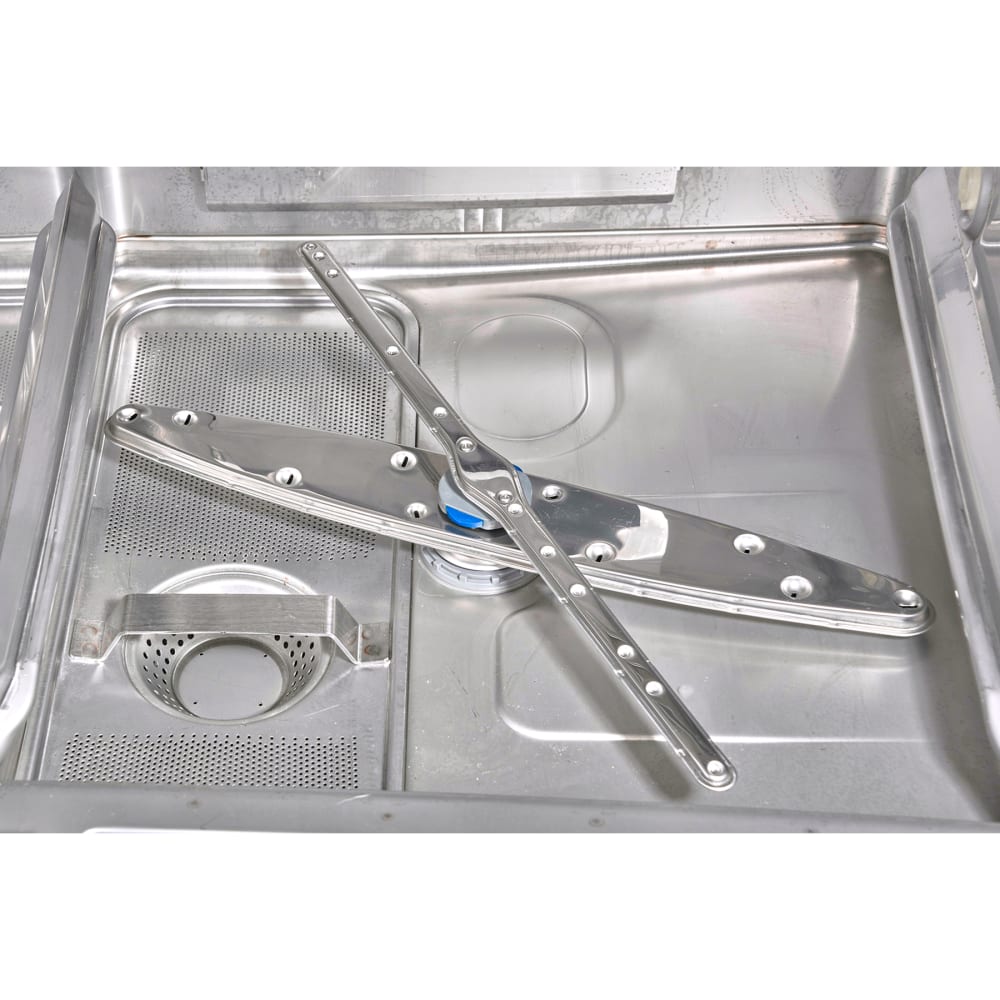

- Senses clogged wash arm

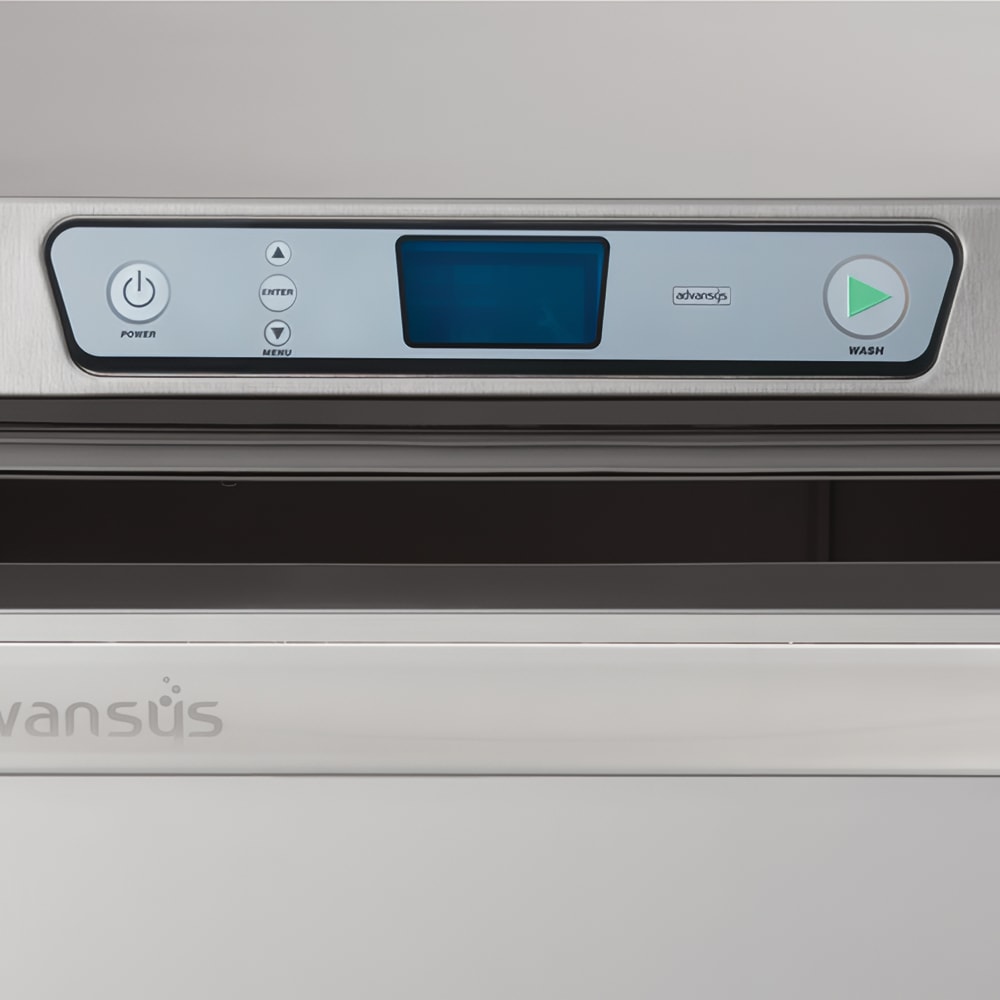

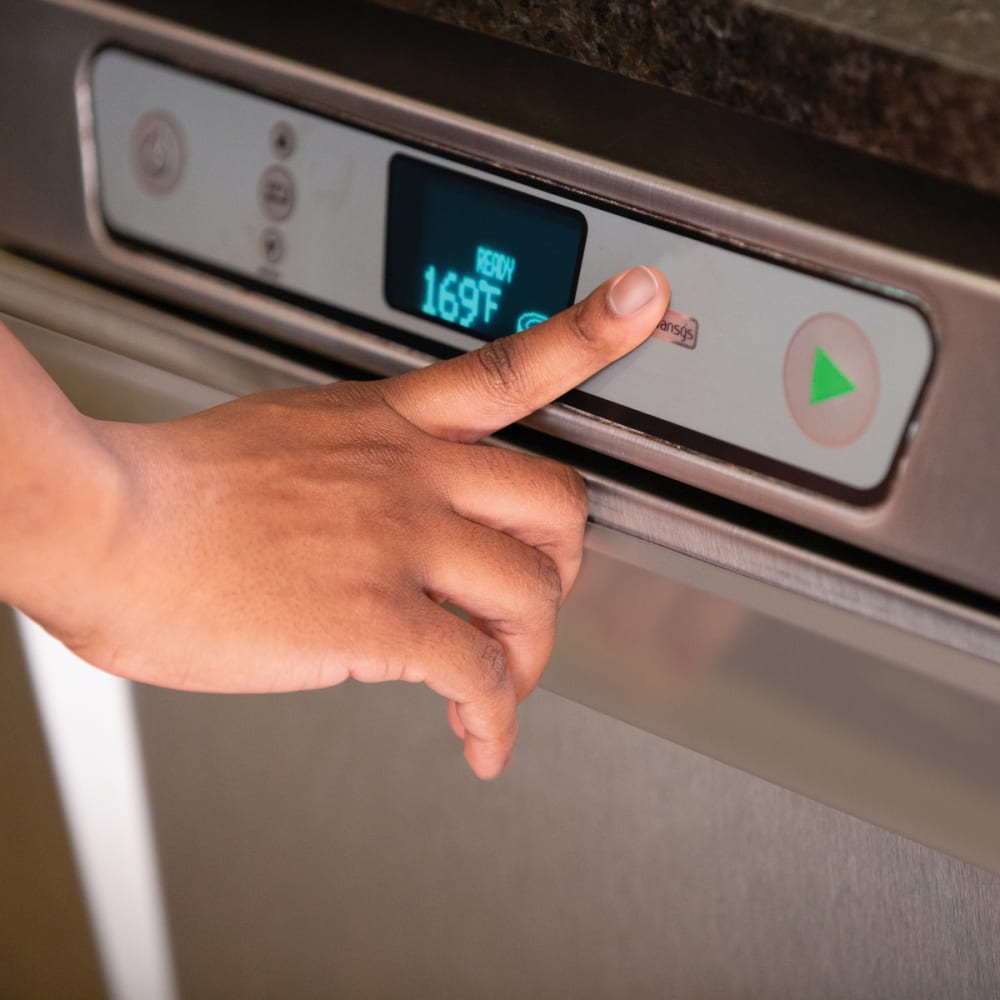

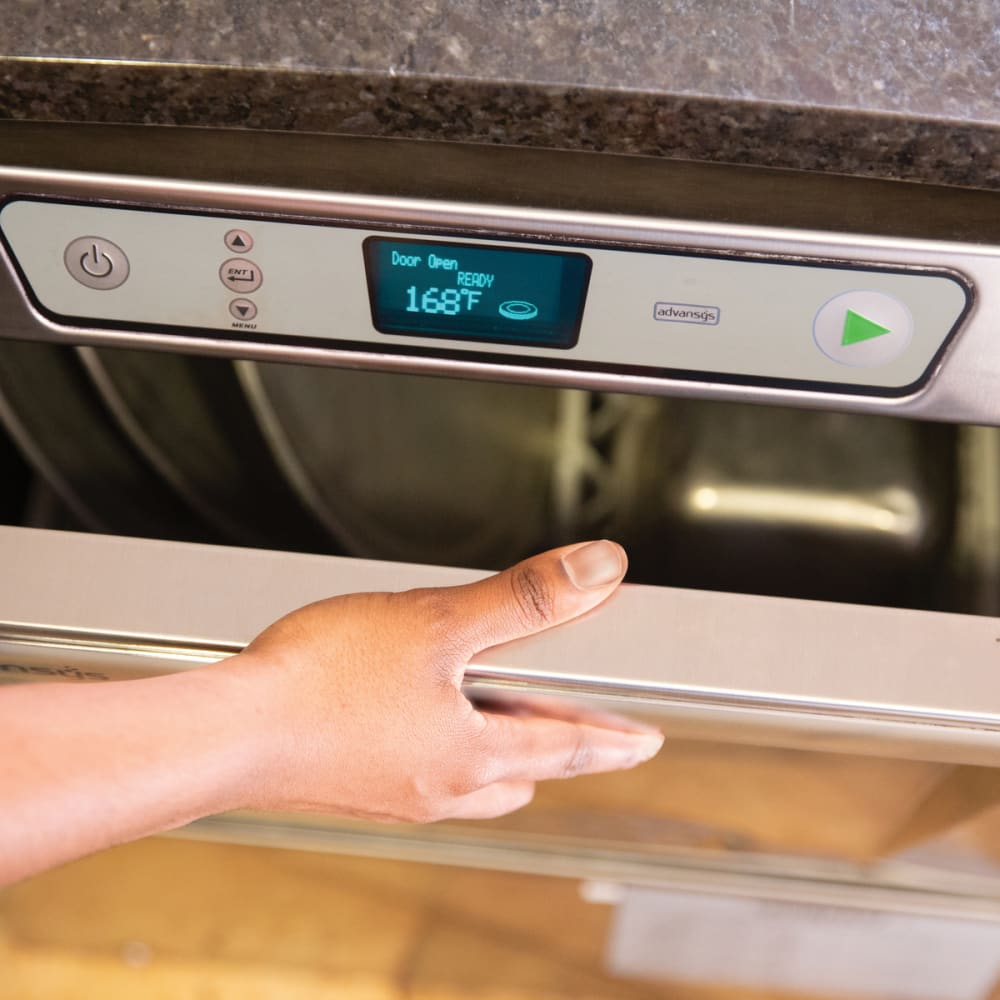

- Top-mounted controls with advanced digital cycle and temperature display
- Automatic pumped drain
- Steam elimination and energy recovery
- Advanced service diagnostics
- Rinse aid, detergent, and delime pumps
- Automatic clean cycle washes inside of machine upon shutdown
- 17-in. door opening
- Recommended incoming water temperature: 55-80 degrees F
- Ideal minimum water operating temperature: 150 degrees F
- Ideal minimum rinse operating temperature: 180 degrees F
Dimensions & Utilities
- 23 15⁄16 in. W x 26 3⁄4 in. D x 32 1⁄2 in. H
- 30.5 A, 1.8 kW tank heat, 4.9 kW booster
- 208-240 V/60 Hz/1 ph
Product Features
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hobart LXER-1 within the 48 contiguous states.
From The Manufacturer
LXe Advansys™ Dishwasher, undercounter, 208-240v/60/1ph(2W), accommodates optional two-level racking accessory, 23-15/16"W x 26-13/16"D x 32-1/2"H, high temperature sanitizing, Energy Recovery, 30, 24, 13 Racks/Hour, Fresh Water Rinse, .62 gal/rack, Automated Delime Cycle, Clogged Wash Arm Alert, 3 selectable cycles - light, normal, heavy (Pot & Pan cycle on heavy cycle), Advanced Service Diagnostics, Detergent, Rinse Aid & Delimer Pump, ENERGY STAR®, Free factory startup for installations within a 100 mile radius of a Hobart service office; installation beyond 100 miles will be charged at the quoted rate by the local Hobart service office
Watch a video about this product
Hobart LXER-1 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hobart |
| Cycle Period | 2 min 26 sec |
| Depth (in) | 26.81 |
| Design | Rack |
| Drain Type | Pump |
| For Use With | Glass Only |
| Glasses per hour | 1080 |
| Height (in) | 34.38 |
| Hertz | 60 |
| Includes | Rack |
| Phase | 1 |
| Product | Glass Washers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 24 |
| Series | LXe Advansys |
| Special Features | Auto Delime |
| Special Features | Built In Booster |
| Special Features | Cleaning Cycle |
| Special Features | Dual Wash Arms |
| Special Features | Steam Reducer |
| Type | High Temp |
| Voltage | 208/240 |
| Warranty | 1-year Parts & Labor |
| Water Inlet (in) | 3/4 |
| Width (in) | 23.94 |
| Weight | 185.00 |
