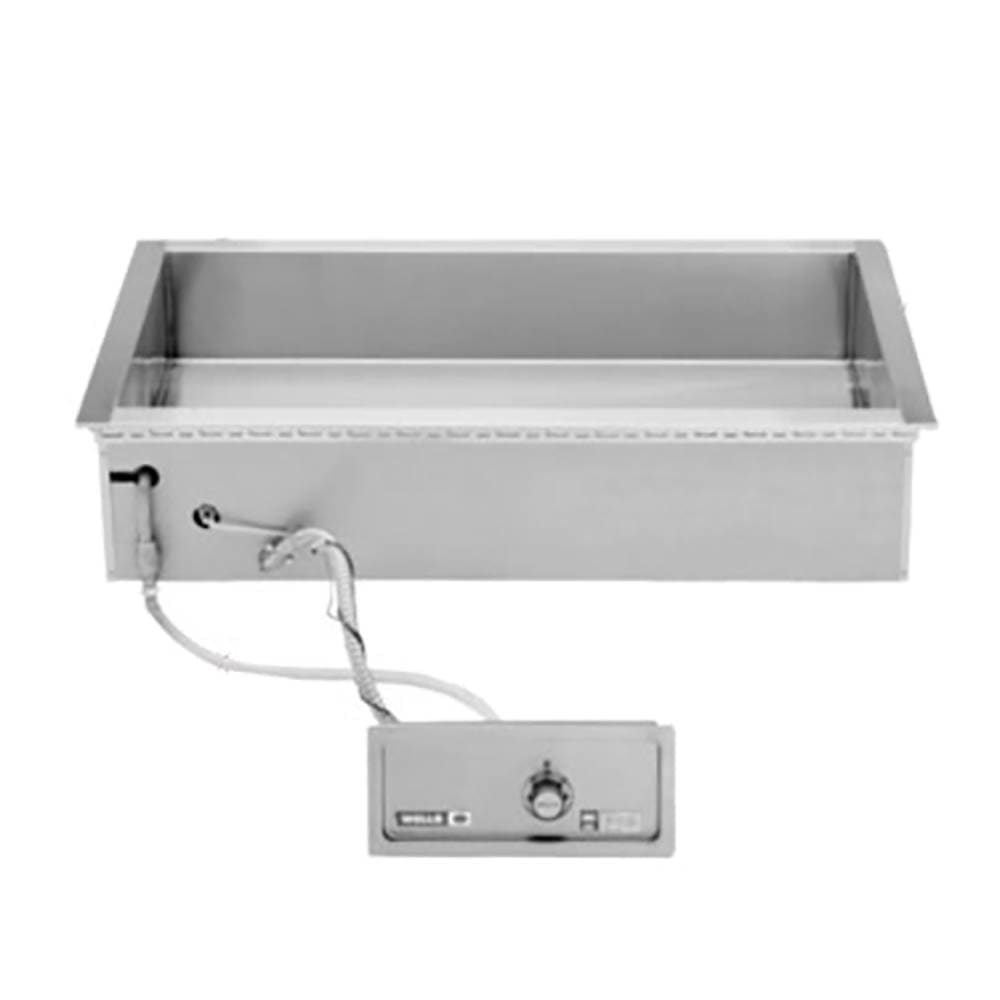

Wells HT-500AF Drop-In Hot Food Well w/ (5) Full Size Pan Capacity, 208-240v
$6,116.00 /Each
Call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Wells HT-500AF Description
Built to endure heavy use, the Wells HT-500AF heated tank is made of stainless steel and is fully insulated to maintain proper conditions. It’s designed to be dropped into cabinetry—hardwiring or cord installation is required to operate. The Wellsloks™ secure the tank in place quickly to streamline installation, and a phase converter is included with this unit to switch from a single to a triple as needed.
The Wells HT-500AF warming tank holds five 12-inch-by-20-inch pans, which is ideal for large establishments. For quick setup, this unit is equipped to fill automatically; a water connection via the 1⁄4-inch NPT fill connection is required. To set the desired holding temperature, staff must use the thermostatic controller, which is simple to use and features an indicator light to notify users when the unit is warming.
- HT series
- Drop-in ready
- Bain Marie style operation
- Holds (5) 12 in. x 20 in. pans
- Made of stainless steel
- Wellsloks included
- Tubular heating elements
- Fully insulated
- Positive-off thermostatic controls
- Single light indicator
- 1⁄2-in drain
- 1⁄4-in. NPT water fill connection
- Automatic filling system
- Opening: 67 3⁄4 in. x 26 7⁄8 in. W
- Overall: 71 1⁄2 in. W x 23 5⁄8 in. D x 9 3⁄4 in. H
- 25 A, 6kW
- 208/240 V/60 Hz/1 ph (convertible to 3 ph)
*Image may not depict product color, inclusions or accessories.
*Free shipping on Wells HT-500AF within the 48 contiguous states.
From The Manufacturer
Bain Marie Style Heated Tank, built-in, electric, automatic water fill, opening 67 3/4" x 19 7/8", wet operation, thermostatic control, fully insulated, stainless steel construction, adapter bars provided, cULus, 208-240v/60/1ph/3ph
Wells HT-500AF Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Wells |
| Accommodates | Full Size Pans |
| Controls | Thermostatic |
| Hertz | 60 |
| Operation | Wet |
| Phase | 1 |
| Phase | 3 |
| Product | Hot Food Wells |
| Product Type | Food Bars & Buffets |
| Type | Hot |
| Voltage | 208/240 |
| Warranty | 2-year Limited Parts; 1-year Labor |
| Weight | 117.00 |
