American Panel AP12BCF150-2-P HURRiCHiLL™ 32 5/16" Floor Model Blast Chiller/Shock Freezer - (24) Pan Capacity, 208v/3ph
$32,683.30 /Each
Contact us for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

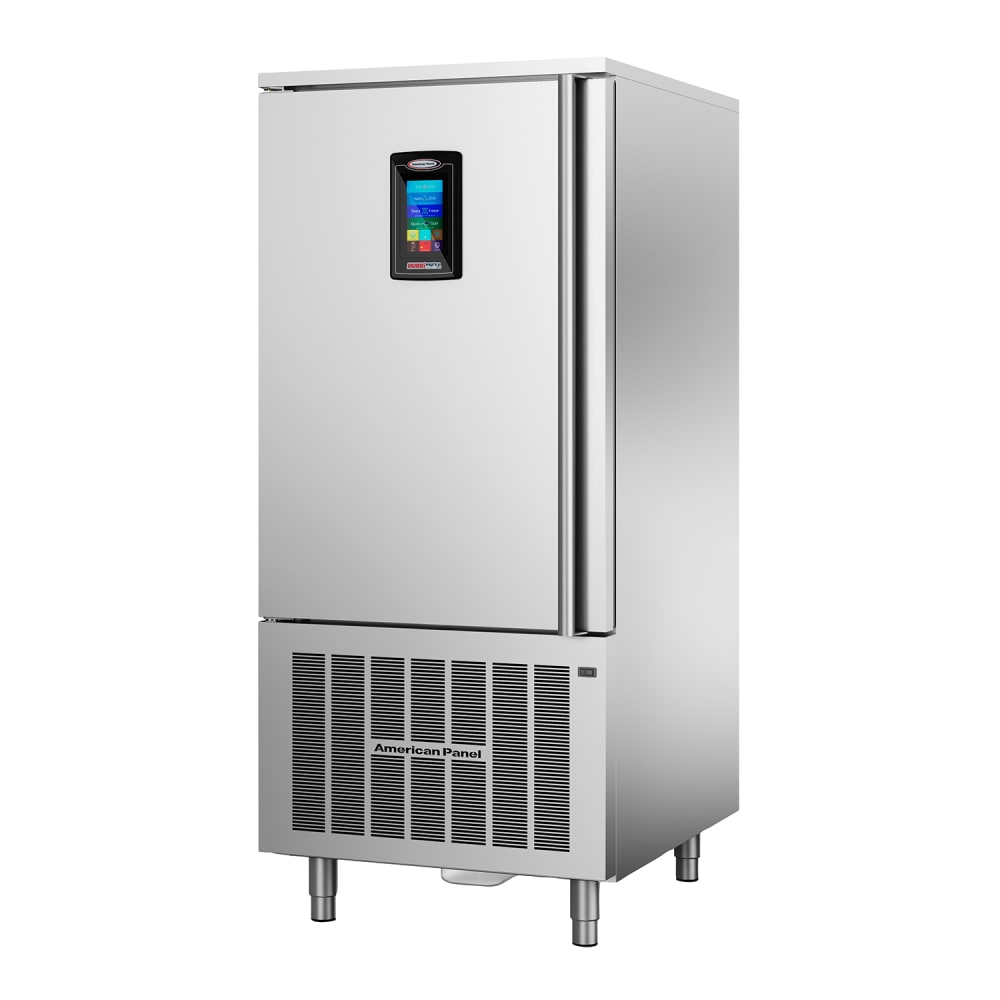

American Panel AP12BCF150-2-P Description
The American Panel AP12BCF150-2-P HURRiCHiLL™ blast chiller and shock freezer is a reach-in floor model designed for rapid chilling and freezing of prepared foods in commercial kitchens and food production environments. Equipped with a 7-inch LCD touchscreen controller, the unit offers Quick Start and A la Carte functionality for programmable cycle operation and streamlined control. This model can blast chill 150 pounds of product from 160 degrees Fahrenheit to 38 degrees Fahrenheit within 90 minutes and shock freeze 150 pounds from 160 degrees Fahrenheit to 0 degrees Fahrenheit in 240 minutes. A heated food probe tracks internal product temperatures during operation, while the high-velocity airflow pattern promotes consistent cooling throughout the cabinet.
Constructed for heavy-duty commercial use, the American Panel AP12BCF150-2-P blast chiller and shock freezer is built of stainless steel on the interior and exterior and incorporates high-density polyurethane insulation to support temperature retention during chilling cycles. The reach-in cabinet accommodates up to (24) 12-inch by 20-inch by 2 1⁄2-inch pans or (12) 18-inch by 26-inch sheet pans. A rounded interior bottom supports sanitation procedures, while the removable magnetic gasket can be detached for maintenance. This unit is mounted on 6-inch stainless steel legs and uses a bottom-mounted, self-contained refrigeration system for dependable blast chilling performance.
- Part of the HURRiCHiLL series
- Holds (24) 12 in. x 20 in. x 2 1⁄2 in. pans
- Accommodates (12) 18-in. x 26-in. sheet pans
- Blast chills 150 lbs. from 160 degrees F to 38 degrees F in 90 minutes
- Shock freezes 150 lbs. from 160 degrees F to 0 degrees F in 240 minutes

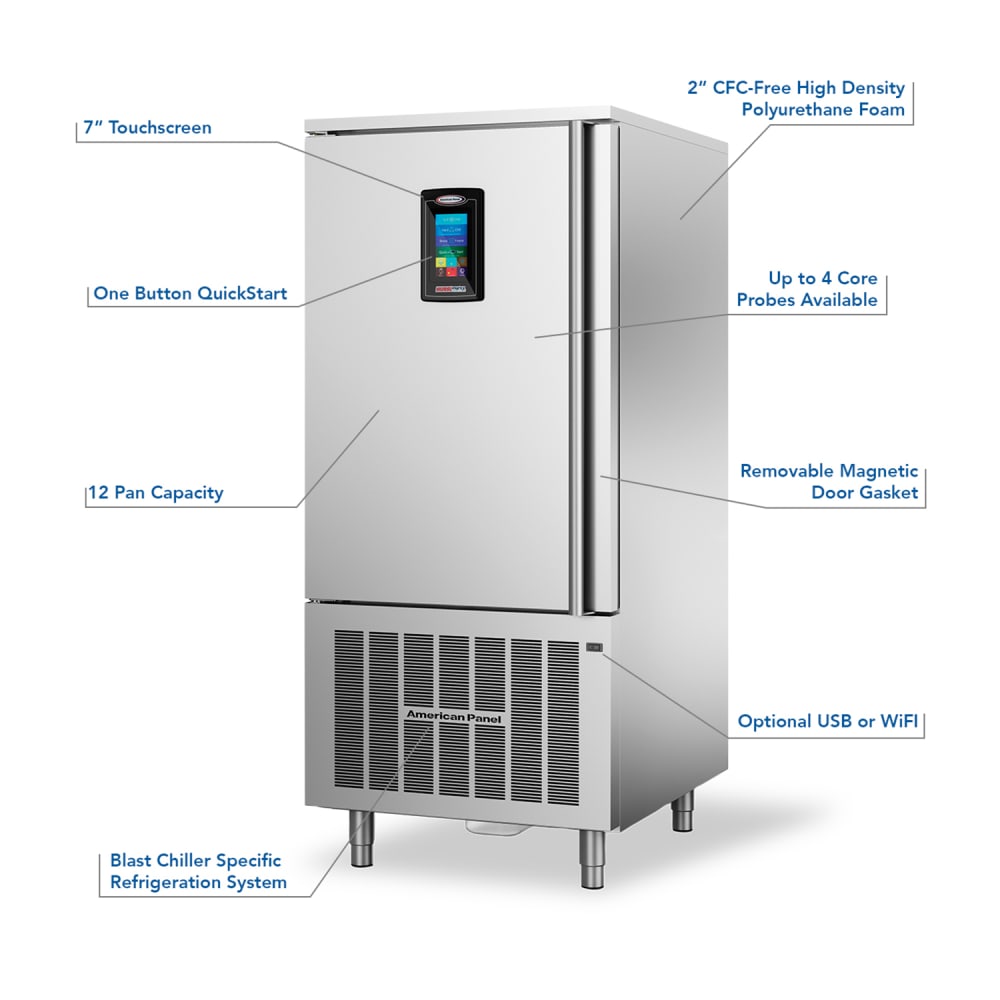

- 7-in. LCD touchscreen controller with Quick Start and A la Carte modes
- Includes 1 heated food probe
- Stainless steel interior and exterior construction
- Rounded interior bottom
- Removable magnetic door gasket
- 6-in. stainless steel legs
- Uses R404A refrigerant
- Bottom-mounted configuration
- Multi-circuit evaporator for blast chilling applications
- Washdown-capable motorized impeller fans
- Swing-out access panel
- 32 5⁄16 in. W x 41 1⁄8 in. D x 75 in. H
- 18 A, 3 HP
- 208 V/60 Hz/3 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on American Panel AP12BCF150-2-P within the 48 contiguous states.
From The Manufacturer
HURRiCHiLL™ Blast Chiller/Shock Freezer, Reach-in, self-contained, (24) 12" x 20" x 2.5" or (12) 18" x 26" pan capacity, 110 lbs. from 160° F to 38° F blast chill capacity/90 minutes, 90 lbs. 160° F to 0° F freeze capacity/240 minutes, 7" LCD touch screen controller with Quick Start & A La Carte functionality, (1) heated food probe, stainless steel interior & exterior, 6" stainless steel legs, 3 HP, UL CLASSIFIED EPH, cUL, ANSI/NSF
American Panel AP12BCF150-2-P Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | American Panel |
| Also Known As | AP12BCF110-3 |
| Compressor Location | Bottom |
| Depth (in) | 41.13 |
| Height (in) | 75 |
| Hertz | 60 |
| NEMA | L15-20P |
| Pan Capacity | 24 |
| Phase | 3 |
| Product | Blast Chillers |
| Product Type | Commercial Refrigeration |
| Refrigerant | R404A |
| Series | HURRiCHiLL™ |
| Special Features | Auto Defrost |
| Special Features | HACCP Record Keeping |
| Special Features | Probe |
| Special Features | Programmable |
| Special Features | Shock Freezer Performance |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 3-year Parts & Labor; 5-year Compressor Parts |
| Width (in) | 32.31 |
| Weight | 770.00 |
