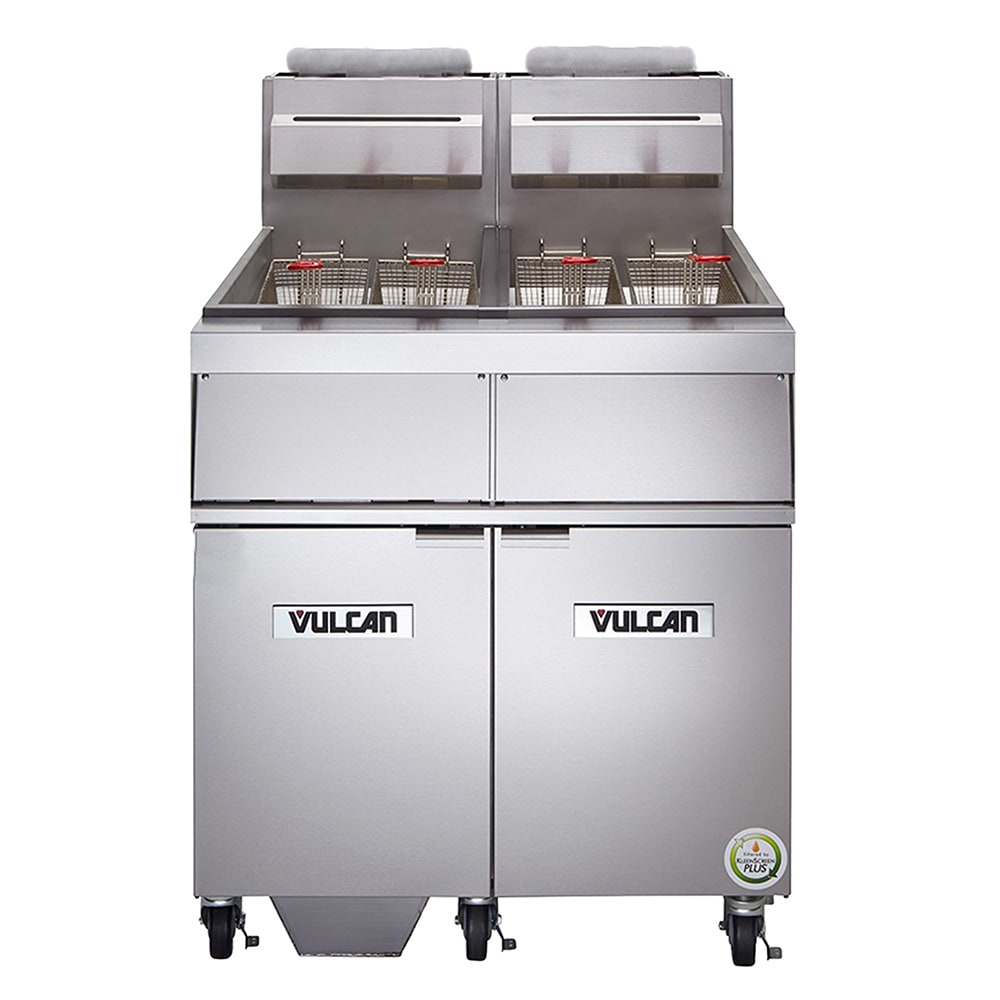

Vulcan 4GR45MF Gas Fryer - (4) 50 lb Vats, Floor Model, Natural Gas

KaTom #: 207-4GR45MFNG • MPN: 4GR45MF NG
  • 207-4GR45MFNG Primary Thumbnail Image

Typically ships in 9 - 13 Business Days

Free Shipping Item

Retail Price: $108,726.00

$40,772.07 /Each

Selected Gas Type: Natural Gas

Liquid PropaneLiquid Propane
Cory Sanning User Image
Ask a Foodservice Equipment Specialist






Vulcan 4GR45MF Description

The Vulcan 4GR45MF gas fryer measures 62 inches wide by 30 1⁄4 inches deep by 46 1⁄4 high and comes mounted on four 6-inch casters to simplify placement in existing equipment lineups. This four-battery unit features four 14-inch-wide by 14-inch-deep vats that hold 45 to 50 pounds of oil each. Each tank fits 6 1⁄2-inch-wide by 13 1⁄4-inch-deep by 6-inch-high twin baskets, which minimize burn risks with their plastic-coated handles. Its tank and cabinet are made of stainless steel, so this unit is both durable and corrosion resistant to prolong service life.

To adjust temperatures between 200 and 390 degrees Fahrenheit, the Vulcan 4GR45MF gas fryer features a millivolt thermostat control behind the cabinet door to prevent inadvertent temperature changes. For even, thorough heating, each vat has four heat exchanger tubes. If this fryer unit exceeds its maximum temperature, it activates its hi-limit shut-off system, and in case of emergency, its gas shut-off valve and pilot safety system are combined. With its KleenScreen PLUS® filtration system—which circulates frying compounds at 8 gallons per minute—the oil maintains quality to reduce premature replacement and flavor transfer. To streamline cleaning after operation, its Boil Out ByPass™ function removes boil-out solution without contacting the drain manifold, filter pan, motor, or pump, and it ships with a tank brush, stainless steel crumb scoop, and clean-out rod.

  • Part of the 1GR45 series
  • 4 frypots
  • (4) 50-lb.-capacity vats
  • Temperature range: 200-400 degrees F
  • Twin baskets feature plastic-coated handles (2 per frypot)
  • Millivolt thermostat controls located behind door
  • Includes tank brush, stainless steel crumb scoop, and clean-out rod
  • Hi-limit shut off
  • Combination gas shut-off valve and pilot system
  • 36 1⁄4 in. working height
  • 1 1⁄4-in. full port ball-type drain valve
  • Includes tank brush, stainless steel crumb scoop, and clean-out rod
  • (4) 6-in. swivel casters (2 locking & 2 non-locking)
  • Stainless steel cabinet and fry tank

  • 1⁄3-horsepower motor and pump circulate compound at 8 gal. per minute
  • 18-ga. stainless steel filter pan holds 70 lb. of oil
  • Stainless steel filter mesh screen
  • Boil Out ByPass function
  • Includes high-temperature discard hose

  • Twin baskets: 6 1⁄2 in. W x 13 1⁄4 in. D x 6 in. H
  • Fry tanks: 14 in. W x 14 in. D
  • Overall: 62 in. W x 30 1⁄4 in. D x 46 1⁄4 in. H
  • 6.0 A, 1⁄3 HP 120 V/60 Hz/ 1 ph - Natural gas
  • 480,000 BTU

*Image may not depict product color, inclusions or accessories.

*Free shipping on Vulcan 4GR45MF within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Fryer, gas, 62" W, (4) battery, 45-50 lb. capacity per vat, millivolt thermostat controls, KleenScreen Plus® filtration system, twin baskets, stainless steel cabinet and fry tank, adjustable casters (2 swivel locking & 2 non-locking), 480,000 BTU, CSA Star, CSA Flame, NSF

Warranty Icon
1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 4GR45MF Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
