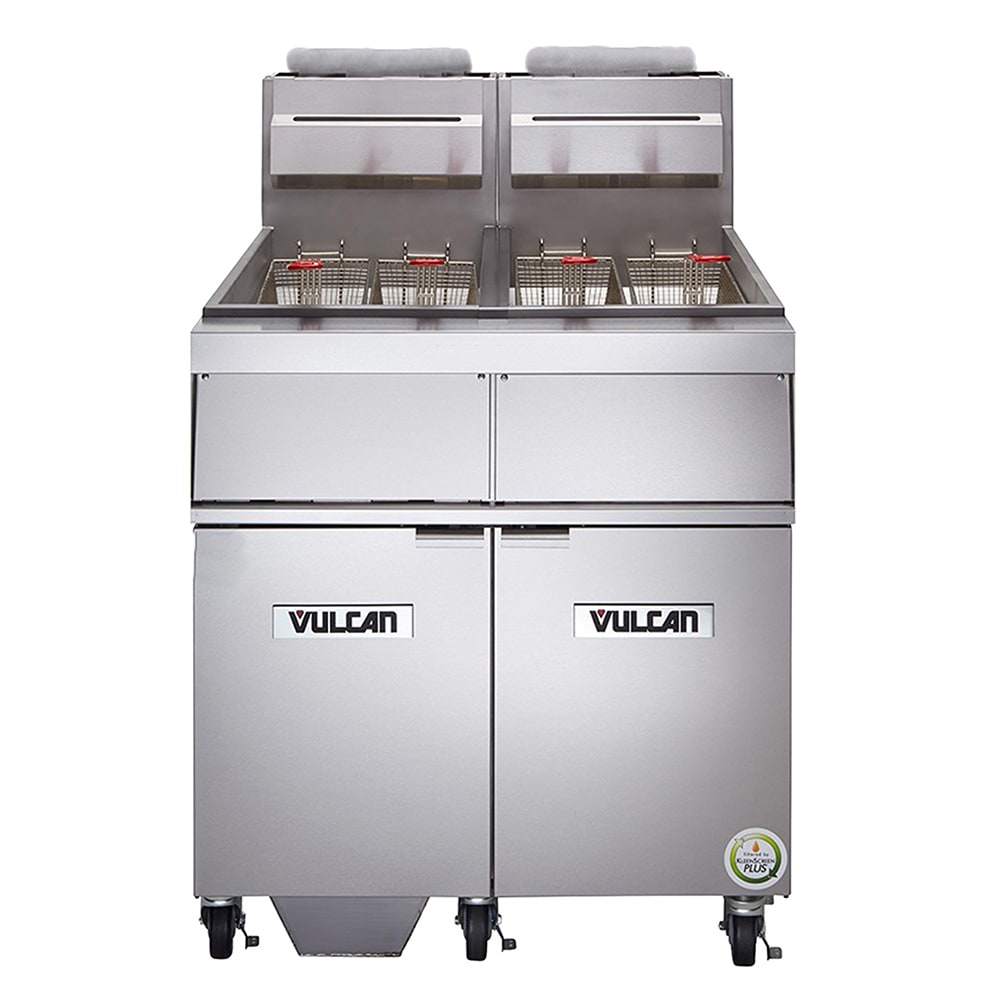

Vulcan 4GR45MF Gas Fryer - (4) 50 lb Vats, Floor Model, Liquid Propane

KaTom #: 207-4GR45MFLP • MPN: 4GR45MF LP
  • 207-4GR45MFLP Primary Thumbnail Image

Typically ships in 9 - 13 Business Days

Free Shipping Item

Retail Price: $108,726.00

$40,772.07 /Each

Selected Gas Type: Liquid Propane

Natural GasNatural Gas
Cory Sanning User Image
Ask a Foodservice Equipment Specialist






Vulcan 4GR45MF Description

The Vulcan 4GR45MF gas fryer is part of the 1GR45 series and features four vats that each have a 45- to 50-pound oil capacity. Each tank measures 14 inches wide by 14 inches deep to hold the included 6 1⁄2-inch-wide by 13 1⁄4-inch-deep by 6-inch-high twin fryer baskets; these baskets feature plastic-coated handles to decrease burn risks. For high-intensity use, it's made of durable stainless steel that resists corrosion. Overall, this heavy-duty unit measures 62 inches wide by 30 13⁄100 inches deep by 46 1⁄4 inches high and sits on four 6-inch swivel casters—two of which lock—to simplify transport.

To simplify and streamline frying of high-volumes of breaded meats or vegetables, this fryer's behind-the-door millivolt controls can be adjusted to set temperatures between 200 and 390 degrees Fahrenheit. This unit's heat exchanger tubes are designed to distribute heat evenly throughout the oil, and if temperatures become too hot, it has a hi-limit shutoff to minimize fire risks. For additional safety, this unit has a combination gas shut-off valve and pilot safety system.

To extend oil life, the Vulcan 4GR45MF gas fryer is installed with the KleenScreen PLUS® filtration system, which is capable of removing miniscule particulate by sifting oil through a duel-sided filter that establishes a 270-350-square-inch filter area. Its 1⁄3-horsepower motor and pump can circulate 8 gallons of frying compound per minute, while its 1 1⁄4-inch ball-type drain valve facilitates oil drainage. To further streamline cleaning, this unit includes a tank brush and clean-out rod.

  • Part of the 1GR45 series
  • (4) 45-50-lb.-capacity fry vats
  • Temperature range: 200-400 degrees F
  • Includes 2 twin baskets with plastic-coated handles per frypot (8 total)
  • (4) 6-in. swivel casters (2 locking, 2 non-locking)
  • Stainless steel cabinet and fry tank
  • 36 1⁄4-in. working height
  • Millivolt thermostat controls located behind door
  • Combination gas shut-off valve and pilot system
  • Hi-limit shut off
  • Includes tank brush, stainless steel crumb scoop, and clean-out rod
  • 1 1⁄4-in. full port ball-type drain valve

  • 1⁄3-horsepower motor and pump circulate compound at 8 gal. per minute
  • 18-ga. stainless steel filter pan holds 70 lb. of oil
  • Stainless steel filter mesh screen
  • Boil Out ByPass™ function removes boil-out solution without contacting drain manifold, filter pan, motor, or pump
  • Includes high-temperature discard hose

  • Twin baskets: 6 1⁄2 in. W x 13 1⁄4 in. D x 6 in. H
  • Fry tanks: (4) 4 in. W x 14 in. D
  • Overall: 62 in. W x 30 1⁄4 in. D x 46 1⁄4 in. H
  • 6.0 A, 1⁄3 HP
  • Requires 120 V/60 Hz/1 ph power supply
  • 480,000 BTU
  • LP gas

*Image may not depict product color, inclusions or accessories.

*Free shipping on Vulcan 4GR45MF within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Fryer, gas, 62" W, (4) battery, 45-50 lb. capacity per vat, millivolt thermostat controls, KleenScreen Plus® filtration system, twin baskets, stainless steel cabinet and fry tank, adjustable casters (2 swivel locking & 2 non-locking), 480,000 BTU, CSA Star, CSA Flame, NSF

Warranty Icon
1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 4GR45MF Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
