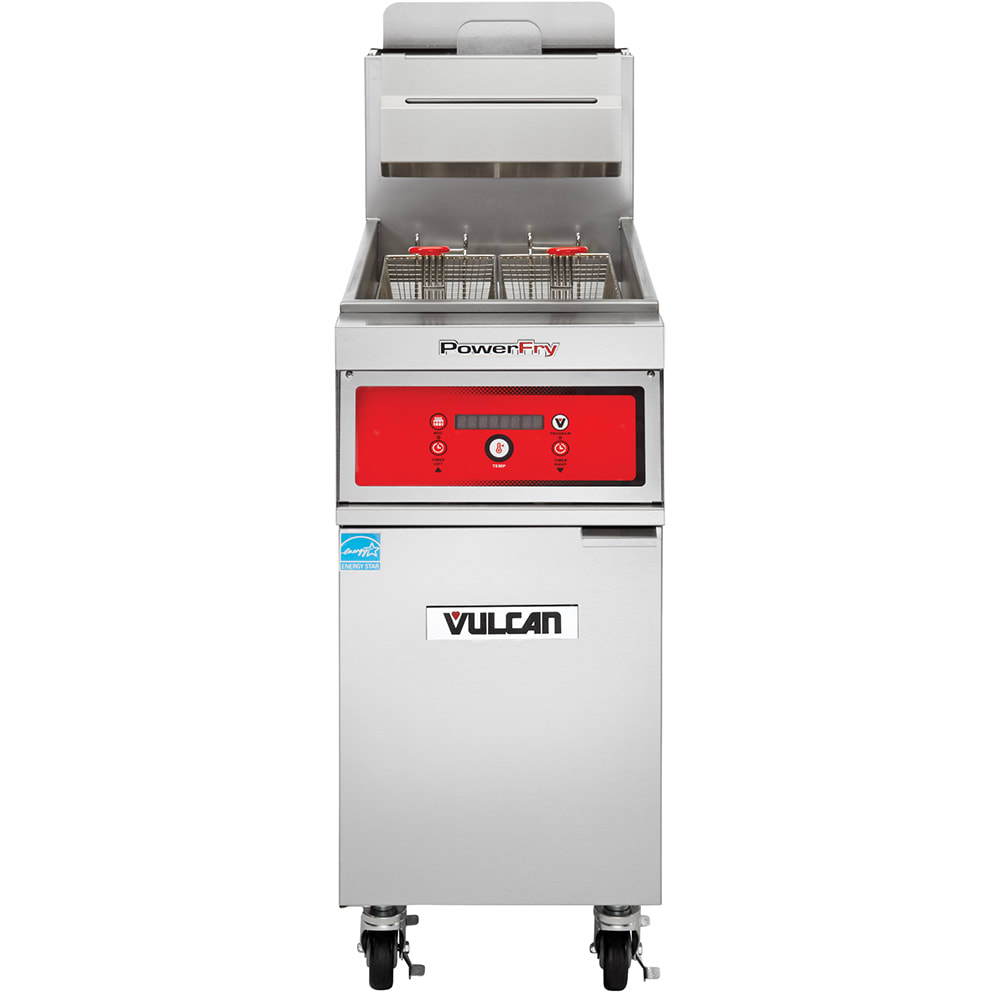

Vulcan 1VK45DF Gas Fryer - (1) 50 lb Vat, Floor Model, Natural Gas

KaTom #: 207-1VK45DFNG • MPN: 1VK45DF NG
  • 207-1VK45DFNG Primary Thumbnail Image

Typically ships in 2 - 3 weeks

Free Shipping Item

Retail Price: $50,577.00

$18,966.29 /Each

  • Protect Your Product
  • Coverage starting at $125.25
  • Edit Remove

Selected Gas Type: Natural Gas

Liquid PropaneLiquid Propane

Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.

Cory Sanning User Image
Ask a Foodservice Equipment Specialist

Vulcan 1VK45DF Description

The Vulcan 1VK45DF gas fryer sports one vat capable of holding 50 pounds of oil to produce high volumes of fried chicken, onion rings, and french fries. It utilizes a KleenScreen PLUS® filtration system to remove food debris and particulates, extending the efficiency of each batch of oil. This unit includes two 6 1⁄2-inch wide by 13 1⁄4-inch-deep by 6-inch-high twin baskets, each with a plastic-coated handle to protect hands from extreme heat. This unit can be set to a temperature between 200 and 390 degrees Fahrenheit using the integrated solid-state digital control that provides three melt modes. To ease use during operation, it has two countdown timers and an auto-boil mode; with its Five Pass&trade ignition, it produces energy-efficient heat transfer, yielding 66 percent cooking and 78 percent thermal efficiency.

Overall, the Vulcan 1VK45DF NG gas fryer measures 15 1⁄2 inches wide by 30 1⁄8 inches deep by 47 1⁄8 inches high. For simple cleaning and increased durability, its cabinet and fry tank is constructed of stainless steel. Furthermore, its 1 1⁄4-inch full port ball type drain valve ensures efficient dispersal of oil from the 14-inch-wide by 14-inch-deep fry tank. For easy placement on level or irregular floors, it's mounted on four 6-inch adjustable casters, two of which can be locked in place to stop the unit from moving while in use.

  • Part of the PowerFry5™ series
  • 50-lb. frypot
  • Twin baskets featuring plastic coat handles
  • Electronic SoftStart™ ignition slowly warms oil to prevent scorching
  • Stainless steel cabinet and fry tank
  • Set of (4) 6-in. adjustable casters (2 swivel & 2 non-locking)
  • Establishes 36 1⁄4 in. working height
  • 6-in. clearance required at sides and rear when placed near combustible construction
  • 16-in. minimum clearance to adjacent open-top burner units
  • FivePass™ heat transfer system
  • Freestanding unit
  • Hi-limit shutoff
  • 1 1⁄4-in. full port ball type drain valve
  • 70,000 BTU

  • Electronic ignition
  • Temperature control: 200-390 degrees F
  • Displays in Fahrenheit or Celsius
  • 3 melt modes
  • 2 countdown timers
  • Auto-boil out mode
  • Cooks with compensating time or actual time

  • Push-button activated motor and pump
  • Drain valve interlock switch shuts off burners during oil draining
  • 18-ga. stainless steel filter pan with 70-lb. capacity
  • Stainless steel mesh filter screens from 2 sides to create 270-sq-in. filter area
  • Motor and pump circulate oil at 8 GPM
  • Oil-return tube is hands free

  • Fry tank: 14 in. W x 14 in. D
  • Fry basket:(2) 6 1⁄2 in. W x 13 1⁄4 in. D x 6 in. H
  • Overall: 15 1⁄2 in. W x 30 1⁄8 in. D x 47 1⁄8 in. H
  • 7.0 A, 1⁄3 HP
  • 115 V/60 HZ/1 ph, cord with NEMA 5-15P plug
  • Powered by natural gas

*Image may not depict product color, inclusions or accessories.

*Free shipping on Vulcan 1VK45DF within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

PowerFry5™ Fryer, natural gas, high efficiency, 15-1/2" W, free-standing, 45-50 lbs. capacity, solid state digital control with melt cycles, FivePass™ heat transfer system, electronic ignition, KleenScreen PLUS® filtration system, twin baskets, stainless steel cabinet & fry tank, adjustable casters (2 swivel locking & 2 non-locking), 70,000 BTU, CSA, CSA STAR, NSF, ENERGY STAR®

Warranty Icon
1-year Limited Parts & Labor; 10-year Fry Tank

Vulcan 1VK45DF Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
