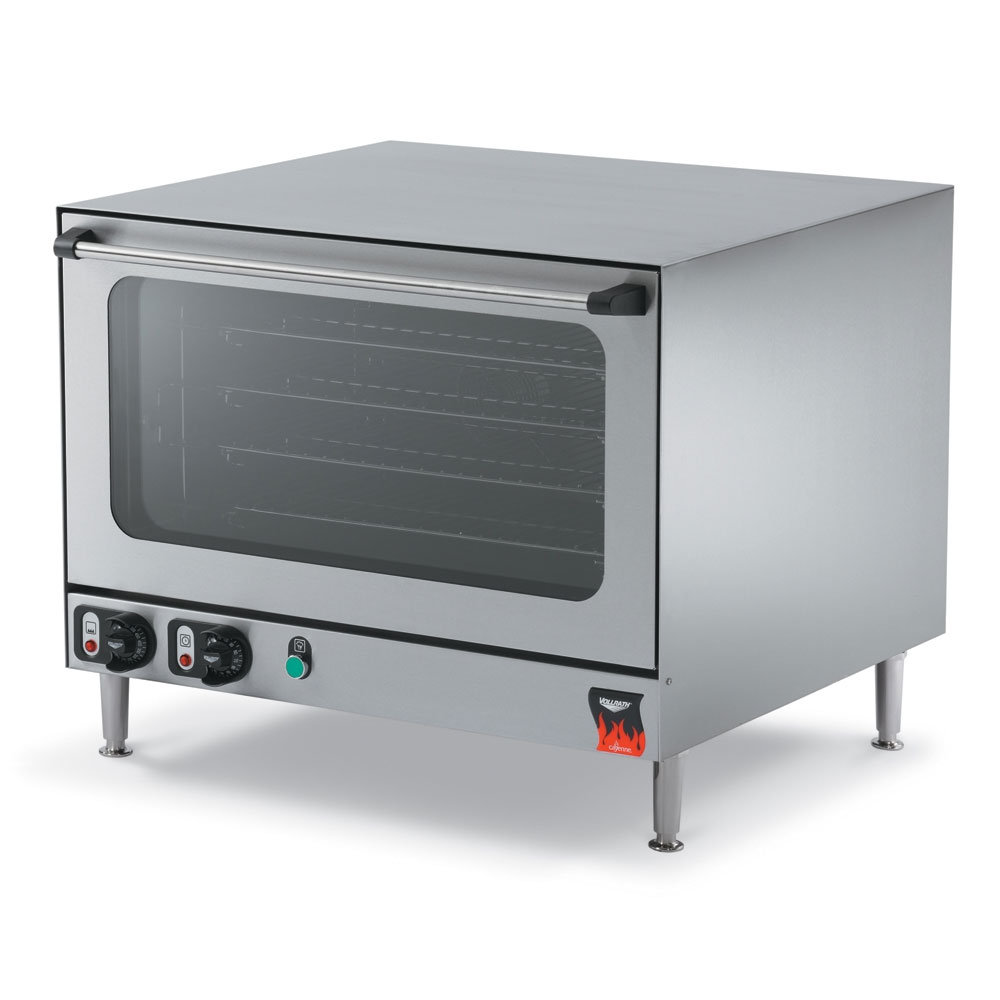

Vollrath 40702 Description

Great for pastries, cakes, and dough products, the Vollrath 40702 Cayenne® full-size countertop convection oven has a unique baffle fan and diffuser plate that create a consistent airflow to produce uniform results. Its dual, self-reversing fans further improve circulation, ensuring baking is even in every part of the oven. A steam injector enables users to manually control the humidity and add steam to brown and crisp baked goods. To track the cooking process, operators can set the 120-minute timer, and at the end of a bake cycle, the timer automatically shuts heat off.

The interior and exterior of this Vollrath 40702 countertop convection oven are made of stainless steel—a material that resists rusting and provides durability. Also made of stainless steel, the door is removable for cleaning and stays cool to the touch as the oven is heating. Its interior is illuminated by a light and has coved corners that eliminate dirt-trapping crevices, streamlining the cleaning process. Double-wall insulation is integrated into the oven, retaining heat to maintain the set temperature. Because this unit is certified for ventless operation, it does not need to be placed under a ventilation hood.

Product Details

  • Part of the Cayenne series
  • 4 full-size sheet pan capacity
  • Baffle fan and diffuser plate create a consistent airflow pattern to ensure baking is even and reliable
  • Dual, self-reversing fans provide advanced circulation for uniform cooking
  • Steam injector offers manual humidity control to brown and crisp pastries
  • Temperature range: 150-570 degrees F
  • 120-min. timer automatically turns power off at the end of a cycle
  • Thermostat and timer knobs have guards to prevent damage and accidental adjustments
  • Detachable stainless steel door stays cool to reduce burn risks
  • Interior light increases product visibility
  • Removable shelf runners and coved interior corners streamline cleaning
  • Stainless steel interior and exterior construction
  • Double-wall insulation retains heat
  • UL-listed for ventless operation

Dimensions & Utilities

  • Interior: 27 5⁄8 in. W x 19 7⁄16 in. D x 13 3⁄4 in. H
  • Overall: 32 7⁄8 in. W x 32 in. D x 26 1⁄2 in. H
  • 20.8-24 A, 4330-5760 W
  • 208-240 V/60 Hz/1 ph, 4-ft. cord with a NEMA 6-30P plug

*Image may not depict product color, inclusions or accessories.

*Free shipping on Vollrath 40702 within the 48 contiguous states.

Additional Product Information

Additional Product Information

From The Manufacturer

Cayenne® Convection Oven, counter top, electric, steam injector, manual humidity control, (4) grid shelves fit (4) full size sheet pans, double wall insulated, removable shelf runners, cool touch door, interior light, stainless steel construction, 4330-5760 watts, 20.8-24 amps, 208-240v/60/1-ph, NEMA 6-30P, cETLus, NSF, model# COA8005 (Refer to vollrathfoodservice.com for full warranty policy)

Warranty Icon
1-year Against Defects in Material & Workmanship

Vollrath 40702 Specifications

Residential Users: This unit is not to be installed or operated in a residential or other non-commercial setting. Check local codes to ensure your foodservice kitchen is properly equipped for this piece. Use in an improper setting will void the warranty and the manufacturer will not provide parts or labor coverage for damage, failure, or other issues with the product. While this product may be covered by a manufacturer's warranty, vendor assumes no liability for product failure or any damages/injuries.
