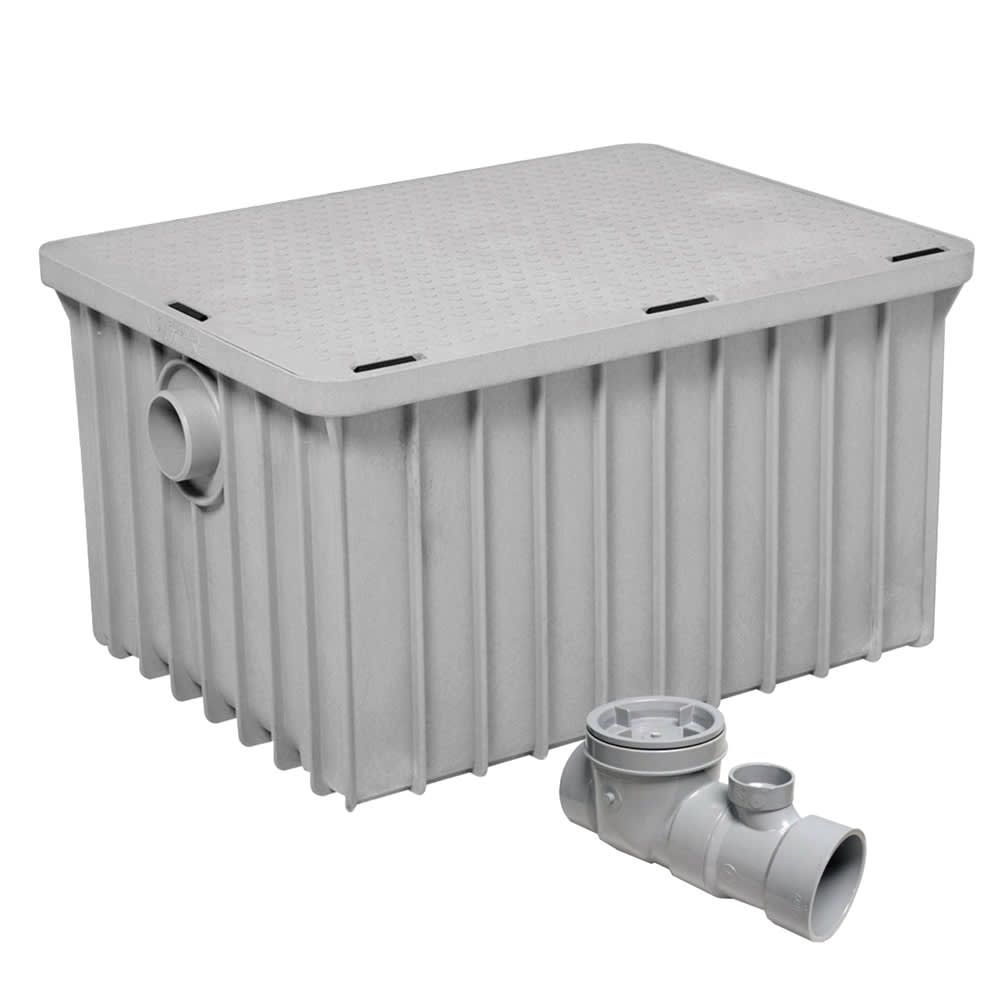

The precision molded Canplas
Endura Grease Interceptor offers an effective alternative to
traditional metal grease interceptors and is engineered to
conform to strict plumbing codes and is certified by the
Plumbing and Drainage Institute.
Injection molded in high quality
thermoplastics the Endura Grease Interceptor provides the best
combination of lightweight and strength. Both the tank and lid
utilize integral reinforcing ribs to enhance rigidity and impact
resistance.
Unlike traditional grease
interceptors, the injection molding process provides the Endura
Grease Interceptor with a completely integrated surface that
will not corrode, chip or
peel.
The unique, patent pending baffle
design provides superior grease retention and removal of solids,
even under the most severe applications.
Performance
An integral ramp is molded into the bottom of
the tank by the inlet baffle. The slope of the ramp is designed
to direct the lighter than water components (grease and
entrained air) upwards to the retention area facilitating faster
and more efficient grease separation.
This unique, patent pending baffle design
provides superior grease retention, outperforming other
interceptors, even under the most severe applications.
Removable
Baffles
Both the Inlet and outlet baffles are removable
making tank cleaning quicker and easier.
The inlet baffle is designed to enhance standard
grease separation by slowing the inlet flow and entraining air
into the water. The entrained air helps the grease rise to the
surface of the water in the grease retention area.
The outlet baffle assists in the removal of food
particles as they fall to the bottom of the tank. This design
removes up to 90% of the solids from the tank allowing for less
time spent during cleaning and increased time between cleanings.
All Canplas Endura Grease
Interceptors are tested and certified to Standard PDI-G101 of
the Plumbing and Drainage Institute.
Strength
The tank and baffles of the Endura
Grease Interceptor are injection molded in polypropylene
providing the best combination of light weight and strength.
External reinforcing ribs on the one-piece,
molded tank provide additional strength and rigidity for
"in-floor" installations.
The grease interceptor cover has a light duty
loading classification when tested to CSA Standard B79 .1. The
design load of 440 pounds is sufficient for foot and light
traffic only.
Strengthening cross ribs have been designed into
the cover for maximum load bearing capability. The cover is
injection molded in nylon reinforced polypropylene to further
enhance rigidity and impact resistance. A nonskid surface is
standard.
Durability
Unlike traditional grease interceptors, the
Endura Grease Interceptor is injection
molded in engineered thermoplastics providing a completely
integrated surface that will not corrode, chip or peel.
The cover is secured by quick disconnect
latching system.
The lid contains a replaceable, o-ring sealing
gasket to provide a positive, airtight seal. This o-ring is
installed in a channel within the lid virtually eliminating the
possibility of pinching and tearing.
With a continuous use operating temperature of
220° F (104° C) maximum, the Endura
Grease Interceptor is able to withstand even the most severe
operating conditions.
Quick disconnect latching
system
Nylon reinforced
polypropylene cover
Removable o-ring gasket
Removable outlet baffle
Removable inlet baffle
One-piece tank
Flow Control Fitting:
Every grease interceptor must have a flow control fitting in order to
ensure proper operation and maximum grease interceptor efficiency.
Entrained Air
is an integral part of the process of grease separation as the air
bubbles within the interceptor help the grease rise to the surface
quickly.
Each Endura Grease
Interceptor is shipped complete with an appropriately
sized flow control fitting designed with an integral orifice to ensure
optimum flow rates and efficiency.

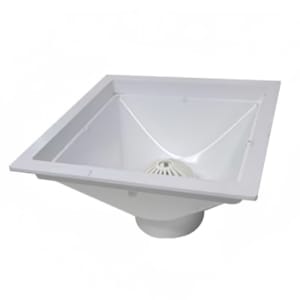

Endura InLine Drain Strainer, ABS Material
