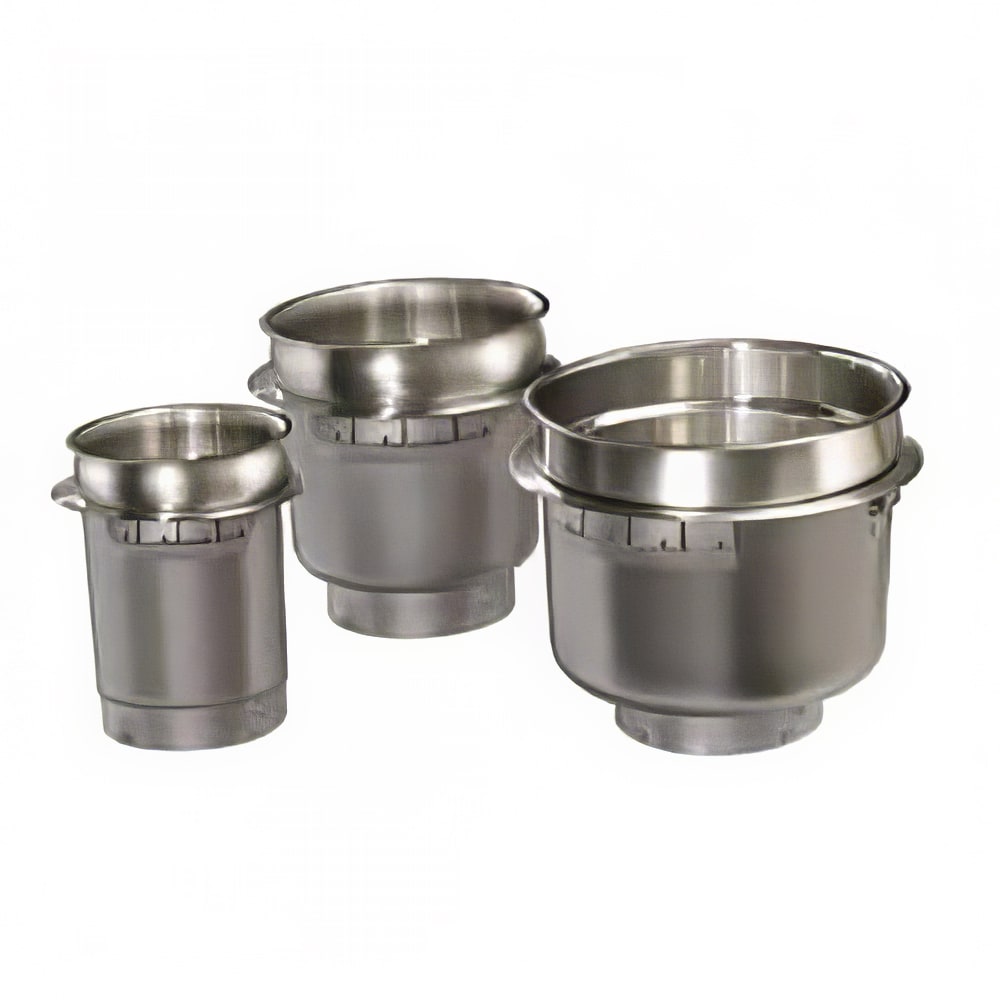

Hatco HWBRT-4QTD 4 qt Drop In Soup Warmer w/ Thermostatic Controls, 120v
Retail Price: $933.00
$513.15 /Each
Selected Voltage: 120V, 1 Phase
| 120V, 1 Phase |
| 208V, 1 Phase |
| 240V, 1 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Hatco HWBRT-4QTD Description
For low-volume holding, this Hatco HWBRT-4QTD drop-in soup warmer has a 4-quart capacity, and its metal-sheathed heating element generates heat to hold prepared soup, stews, chilis, and sauces at safe serving temperature for hours. Users can set temperatures with the thermostatic control dial, and the thermostat monitors real-time temperatures, adding or reducing heat to ensure contents remain at set temperatures throughout holding. Because its power switch illuminates during use, operators can quickly gauge when the unit is on for safety. This control panel can be simply accessed for maintenance because it lacks an enclosure.
Intended for installation in specifically designed steam tables, the Hatco HWBRT-4QTD circular heated well measures 8 17⁄50 inches in diameter by 10 31⁄50 inches high and can be installed into a countertop cutout between 7 1⁄8 and 7 9⁄16 inches in diameter. EZ locking hardware is included to expedite setup. This aluminized and stainless steel unit resists corrosion and wear from daily use and can be wiped clean. To remove leftover water after wet operation, its base includes a 3⁄4-inch NPT drain.
- Accommodates 4 qt. of prepared soup, stew, chili, or sauce
- Fabricator component only
- Drop-in, top-mount design
- Can be installed in a noncombustible countertop cutout between 7 1⁄8 and 7 9⁄16 in. diameter
- Fits into square combustible countertop cutout measuring from 9 in. x 9 in. to 9 1⁄4 in. x 9 1⁄4 in. (accessory mounting kit not included)
- Includes EZ locking hardware
- Resilient stainless and aluminized steel housing
- Uninsulated
- Drain included
- Metal-sheathed heating element
- No conduit or control box enclosure
- Thermostatic control
- On/off illuminated rocker switch
- 36-in. lead cords
- Control box can be installed into a 2 1⁄8-in.-wide x 3 3⁄8-in.-high cutout
- Thermostatic control: 2 3⁄4 in. W x 4 in. H
- Overall: 8 17⁄50 in. dia. x 10 31⁄50 in. H
- 4.2 A, 500 W
- 120 V/60 Hz/1 ph
- 3⁄4-in. NPT drain
*Image may not depict product color, inclusions or accessories.
*Free shipping on Hatco HWBRT-4QTD within the 48 contiguous states.
From The Manufacturer
(Fabricator component only) Drop-In Heated Well, with drain, round, non-insulated, top mounted, 4 quart, thermostatic controls with lit rocker switch & leads, stainless steel construction (standard watt), cURus, 120v/60/1ph
Hatco HWBRT-4QTD Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Hatco |
| Capacity (qt) | 4 |
| Controls | Thermostatic |
| Diameter (in) | 8.34 |
| Height (in) | 10.62 |
| Hertz | 60 |
| Installation Type | Drop In |
| Lid Type | None |
| Number of Insets | 1 |
| Operation | Wet |
| Phase | 1 |
| Product | Soup Warmers |
| Product Type | Food Bars & Buffets |
| Special Features | With Drain |
| Voltage | 120 |
| Warranty | 1-year Parts & Labor; 2-year Element Parts |
| Weight | 9.00 |
