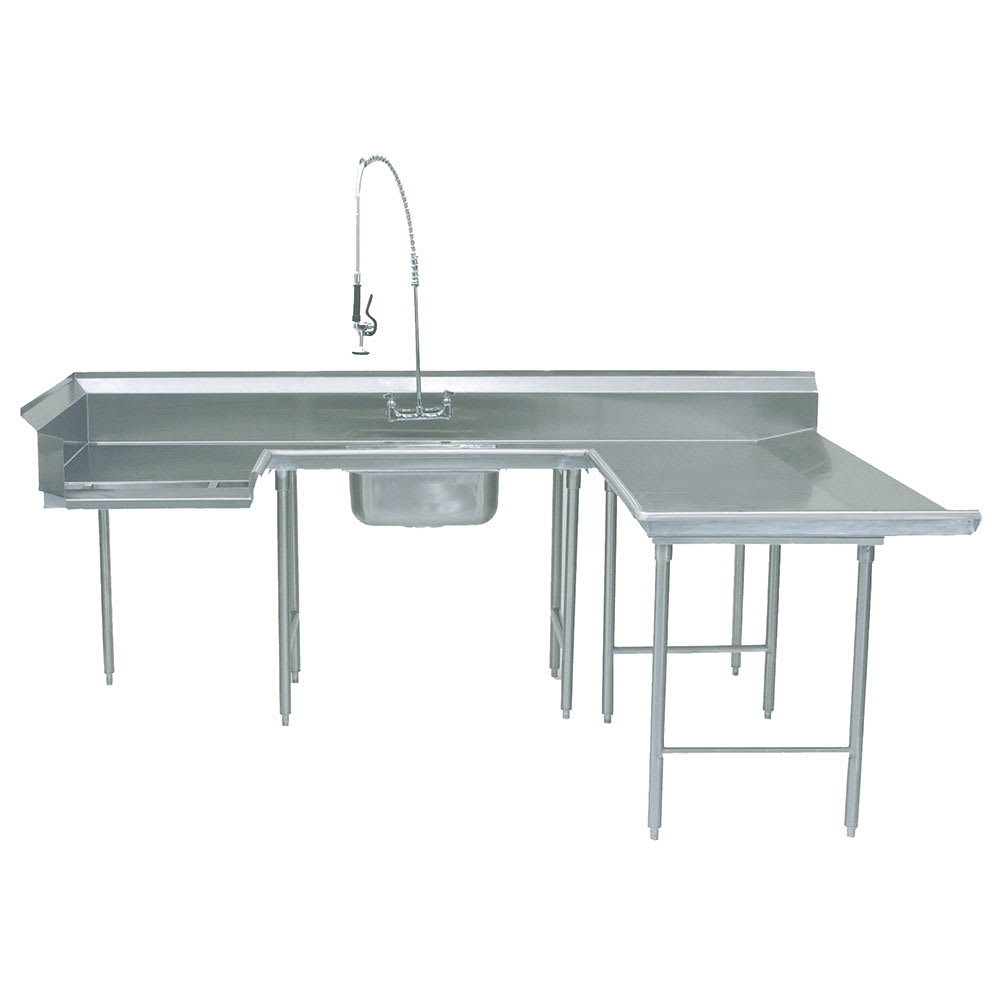

Advance Tabco DTS-U30-72R 71" U Shaped Dish Table - Right to Left, (1) 20" x 20" x 8" Sink Bowl
Typically ships in 4 - 6 weeks
$6,954.62 /Each
Advance Tabco DTS-U30-72R Description
The welded structure provides a steady, reliable frame that supports daily use in busy dish areas. Welded joints are polished to match nearby surfaces, creating a consistent, clean look on the Advance Tabco DTS-U30-72R soiled dishtable. Adjustable stainless steel bullet feet help keep the table level, even on uneven floors.
For an efficient setup, the Advance Tabco DTS-U30-72R soiled dishtable connects to the right side of the dish machine operator. Its U-shaped layout keeps the sink and landing space close together, helping staff maintain a steady pace. A tile edge along the top lines up neatly with nearby walls to create a clean, secure fit.
- DTS series
- U-shaped soil dishtable
- Attaches to right of dish machine operator
- 14-ga. type 304 stainless steel top
- 16-ga. type 304 stainless steel legs with crossrails front to back
- 10 1⁄2-in. backsplash with 2-in. return and tile edge
- 1 1⁄2-in. I.P.S. basket-type waste drain and dishlanding
- Pre-rinse basket with slide bar (slide bar included only when K-461 or K-461A disposer adapter is specified)
- 8-in. on-center faucet holes
- All TIG-welded construction with gussets welded to stainless steel channels
- Welded areas blended to match adjacent surfaces and finished to a satin appearance
- Custom table lengths available on all sides; additional leg height available using DTA-56
- Note: faucet not included
- Stainless steel bullet feet
- Bowl: 20 in. L x 20 in. W x 8 in. D
- Overall: 108 in. L x 71 in. W x 44 1⁄2 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Dishtable, soiled, u-shaped, attaches to right of dish machine operator, 59" x 108" x 71" with landing, 10-1/2"H backsplash, with pre-rinse sink, 16/304 stainless steel legs with crossrails front-to-back, 14/304 stainless steel, stainless steel bullet feet, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified), NSF
Advance Tabco DTS-U30-72R Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Backsplash Height (in) | 10.5 |
| Base | Open |
| Bowl Depth (in) | 8 |
| Bowl Length (in) | 20 |
| Bowl Width (in) | 20 |
| Construction | Best - 14 ga SS Top, 16 ga. SS Legs |
| Direction | Right to Left |
| Height (in) | 44.5 |
| Includes | Backsplash |
| Includes | Pre-Rinse Sink |
| Length (in) | 71 |
| Material | Stainless Steel |
| Product | Dish Tables |
| Product Type | Commercial Work Tables & Stations |
| Series | DTS Series |
| Size | 6 ft |
| Style | U Shaped |
| Type | Soil Dishtables |
| Warranty | 90-day Parts |
| Width (in) | 108 |
| Weight | 450.00 |
