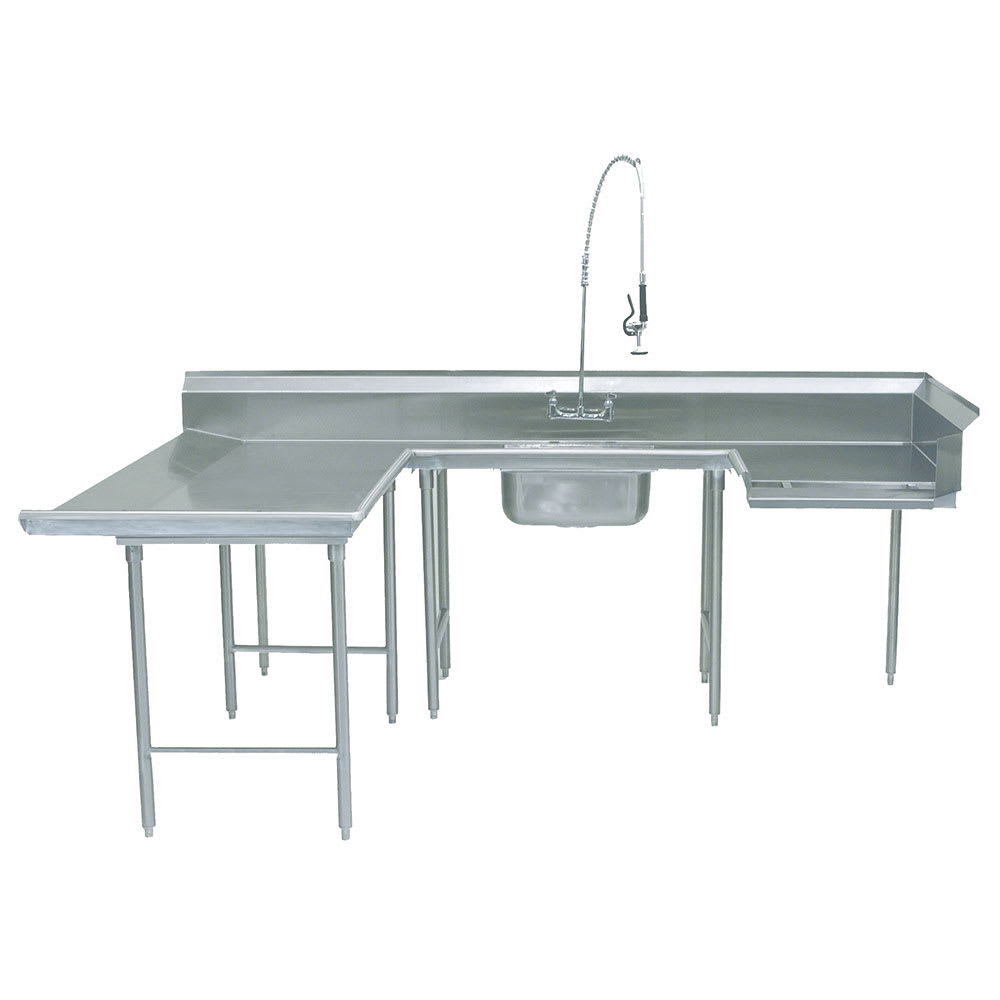

Advance Tabco DTS-U30-144L 144" U Shaped Dish Table - Left to Right, (1) 20" x 20" x 8" Sink Bowl
$7,998.08 /Each
Advance Tabco DTS-U30-144L Description
Positioned to the left of the dish machine operator, the Advance Tabco DTS-U30-144L soiled dishtable supports a smooth transfer of items for rinsing. A pre-rinse sink basket and slide bar help manage scraps and organize utensils before washing. A tile edge lines up cleanly with adjacent walls, giving the station a tidy, built-in appearance.
Building on that workflow, welded construction on the Advance Tabco DTS-U30-144L soiled dishtable delivers lasting strength you can count on. Every seam is finished smooth to blend with the surface and reduce catch points for debris. Field joint capability supports longer spans, keeping the table stable and aligned through frequent daily use.
- DTS series
- U-shaped soil dishtable
- Attaches to left of dish machine operator
- 14-ga. type 304 stainless steel top
- 16-ga. type 304 stainless steel legs with crossrails front to back
- 10 1⁄2-in. backsplash with 2-in. return and tile edge
- 1 1⁄2-in. I.P.S. basket-type waste drain and dishlanding
- Pre-rinse basket with slide bar (slide bar included only when K-461 or K-461A disposer adapter is specified)
- 8-in. on-center faucet holes
- All TIG-welded construction with gussets welded to stainless steel channels
- Welded areas blended to match adjacent surfaces and finished to a satin appearance
- Includes field joint to be welded in field
- Custom table lengths available on all sides; additional leg height available using DTA-56
- Note: faucet not included
- Stainless steel bullet feet
- Bowl: 20 in. L x 20 in. W x 8 in. D
- Overall: 108 in. L x 143 in. W x 44 1⁄2 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Advance Tabco DTS-U30-144L within the 48 contiguous states.
From The Manufacturer
Dishtable, soiled, u-shaped, attaches to left of dish machine operator, 59" x 108" x 143" with landing, 10-1/2"H backsplash, with pre-rinse sink, 16/304 stainless steel legs with crossrails front-to-back, 14/304 stainless steel, stainless steel bullet feet, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified) (NOTE: this dish table supplied in two pieces with a K-57 welded field joint included in the cost - field welding by others), NSF
Advance Tabco DTS-U30-144L Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Backsplash Height (in) | 10.5 |
| Base | Open |
| Bowl Depth (in) | 8 |
| Bowl Length (in) | 20 |
| Bowl Width (in) | 20 |
| Construction | Best - 14 ga SS Top, 16 ga. SS Legs |
| Direction | Left to Right |
| Height (in) | 44.5 |
| Includes | Backsplash |
| Includes | Pre-Rinse Sink |
| Length (in) | 143 |
| Material | Stainless Steel |
| Product | Dish Tables |
| Product Type | Commercial Work Tables & Stations |
| Series | DTS Series |
| Size | 12 ft |
| Style | U Shaped |
| Type | Soil Dishtables |
| Warranty | 90-day Parts |
| Width (in) | 108 |
| Weight | 600.00 |
