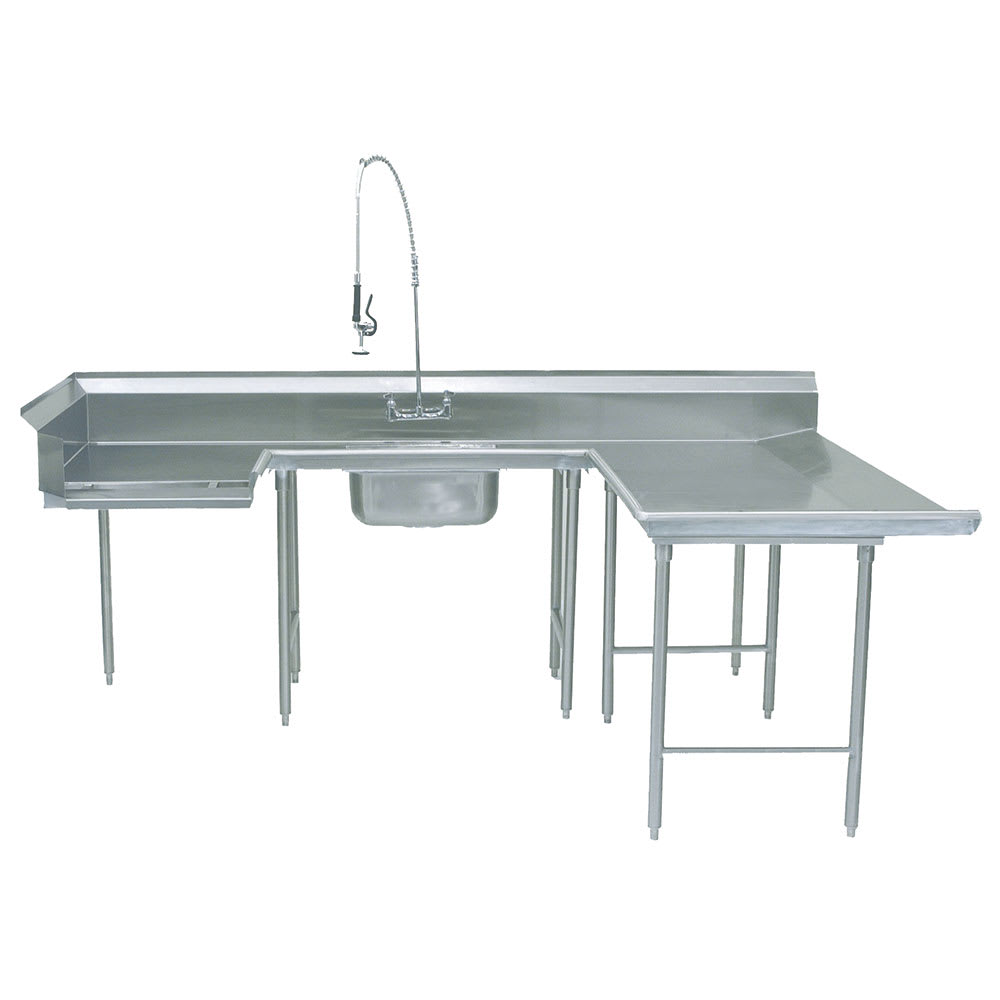

Advance Tabco DTS-U30-108R 107" U Shaped Dish Table - Right to Left, (1) 20" x 20" x 8" Sink Bowl
Typically ships in 4 - 6 weeks
$7,550.17 /Each
Advance Tabco DTS-U30-108R Description
Equipped with a prerinse sink that includes a basket and slide bar, the Advance Tabco DTS-U30-108R DTS soiled dish table enables debris separation before washing. The 1 1⁄2-inch IPS waste drain basket directs water to the center, while the dish landing creates a transfer point between rinsing and warewashing. A 10 1⁄2-inch backsplash protects walls from splashing, and the open base offers unrestricted cleaning access beneath the unit.
Supported by 16-gauge 304 stainless steel legs with cross rails, the Advance Tabco DTS-U30-108R dish table's adjustable bullet feet provide uniform leveling on uneven floors. The 14-gauge 304 stainless steel work surface prevents deformation through frequent use, and the faucet holes on 8-inch centers ensure quick fixture setup. With a right-to-left, U-shaped configuration that supports a continuous flow, this unit measures 108 inches long by 108 inches wide by 44 1⁄2 inches high.
Product Details
- DTS series
- U-shaped, right-to-left configuration
- 14-ga. 304 stainless steel construction
- 10 1⁄2-in. backsplash
- Faucet holes on 8-in. centers
- Prerinse sink with basket and slide bar
- 1 1⁄2-in. IPS waste drain basket
- 16-ga. 304 stainless steel legs with cross rails
- Adjustable bullet feet
- Overall: 108 in. L x 108 in. W x 44 1⁄2 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Dishtable, soiled, u-shaped, attaches to right of dish machine operator, 59" x 108" x 107" with landing, 10-1/2"H backsplash, with pre-rinse sink, 16/304 stainless steel legs with crossrails front-to-back, 14/304 stainless steel, stainless steel bullet feet, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified) (NOTE: this dish table supplied in two pieces with a K-57 welded field joint included in the cost - field welding by others), NSF
Advance Tabco DTS-U30-108R Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Backsplash Height (in) | 10.5 |
| Base | Open |
| Bowl Depth (in) | 8 |
| Bowl Length (in) | 20 |
| Bowl Width (in) | 20 |
| Construction | Best - 14 ga SS Top, 16 ga. SS Legs |
| Direction | Right to Left |
| Height (in) | 44.5 |
| Includes | Backsplash |
| Includes | Pre-Rinse Sink |
| Length (in) | 107 |
| Material | Stainless Steel |
| Product | Dish Tables |
| Product Type | Commercial Work Tables & Stations |
| Series | DTS Series |
| Size | 9 ft |
| Style | U Shaped |
| Type | Soil Dishtables |
| Warranty | 90-day Parts |
| Width (in) | 108 |
| Weight | 525.00 |
