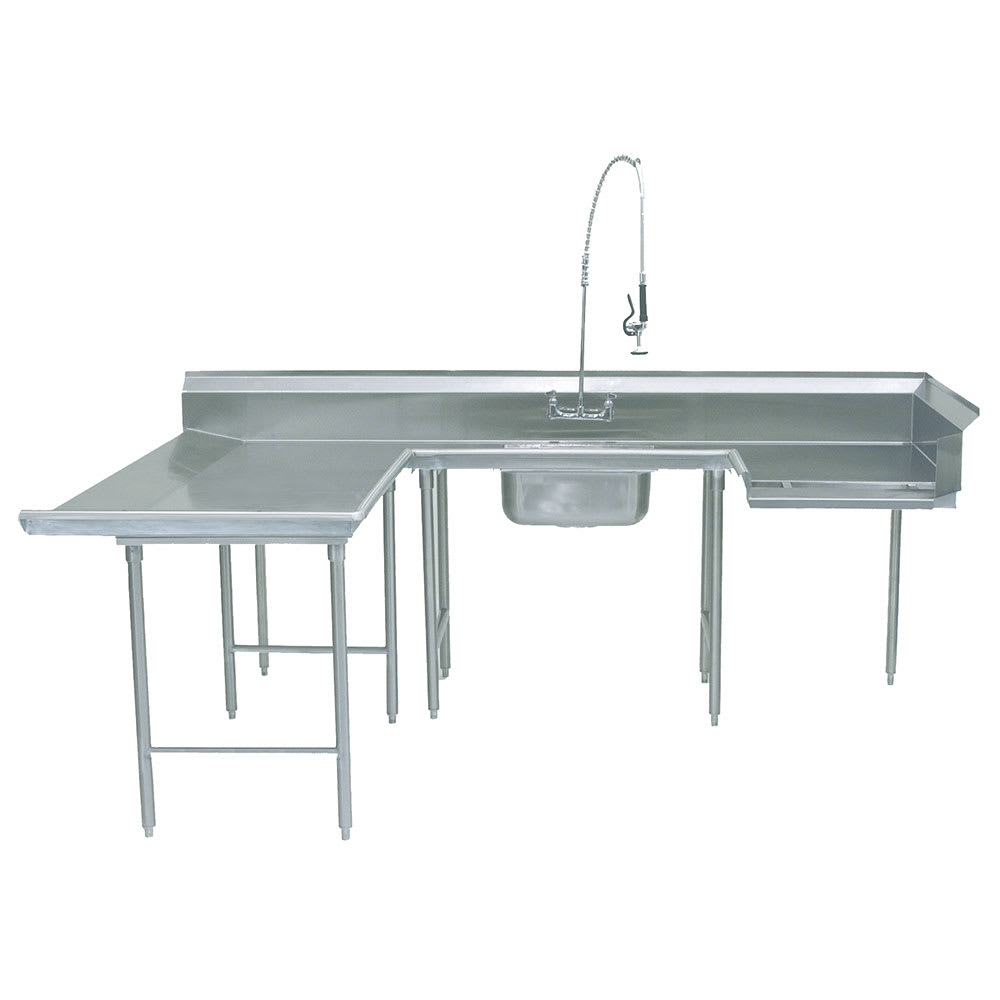

Advance Tabco DTS-U30-108L 107" U Shaped Dish Table - Left to Right, (1) 20" x 20" x 8" Sink Bowl
Typically ships in 4 - 6 weeks
$7,550.17 /Each
Advance Tabco DTS-U30-108L Description
The Advance Tabco DTS-U30-108L DTS soiled dish table features a left-to-right, U-shaped configuration that positions a dish landing alongside a sink to streamline soiled ware handling. An open base maximizes floor clearance, while the 10 1⁄2-inch backsplash contains splashes to maintain a clean work area. Working with a 1 1⁄2-inch IPS waste drain basket to capture debris and direct water away, the prerinse sink includes a basket and slide bar.
For stabilization through heavy use, the Advance Tabco DTS-U30-108L table is made of 14-gauge 304 stainless steel and supported by 16-gauge 304 stainless steel legs with cross rails. Adjustable bullet feet enable leveling on different surfaces, and faucet holes are punched on 8-inch centers to speed up fixture installation. Measuring 108 inches long by 108 inches wide by 44 1⁄2 inches high, this build offers strength and adaptability for busy dishroom environments.
Product Details
- Part of the DTS series
- U-shaped, left-to-right configuration
- 14-ga. 304 stainless steel construction
- 10 1⁄2-in. backsplash
- Faucet holes on 8-in. centers
- Prerinse sink with basket and slide bar
- 1 1⁄2-in. IPS waste drain basket
- 16-ga. 304 stainless steel legs with cross rails
- Adjustable bullet feet
- Overall: 108 in. L x 108 in. W x 44 1⁄2 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Dishtable, soiled, u-shaped, attaches to left of dish machine operator, 59" x 108" x 107" with landing, 10-1/2"H backsplash, with pre-rinse sink, 16/304 stainless steel legs with crossrails front-to-back, 14/304 stainless steel, stainless steel bullet feet, Includes prerinse basket with slide bar (slide bar only when K-461 or K-461A disposer adapter is specified) (NOTE: this dish table supplied in two pieces with a K-57 welded field joint included in the cost - field welding by others), NSF
Advance Tabco DTS-U30-108L Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Backsplash Height (in) | 10.5 |
| Base | Open |
| Bowl Depth (in) | 8 |
| Bowl Length (in) | 20 |
| Bowl Width (in) | 20 |
| Construction | Best - 14 ga SS Top, 16 ga. SS Legs |
| Direction | Left to Right |
| Height (in) | 44.5 |
| Includes | Backsplash |
| Includes | Pre-Rinse Sink |
| Length (in) | 107 |
| Material | Stainless Steel |
| Product | Dish Tables |
| Product Type | Commercial Work Tables & Stations |
| Series | DTS Series |
| Size | 9 ft |
| Style | U Shaped |
| Type | Soil Dishtables |
| Warranty | 90-day Parts |
| Width (in) | 108 |
| Weight | 525.00 |
