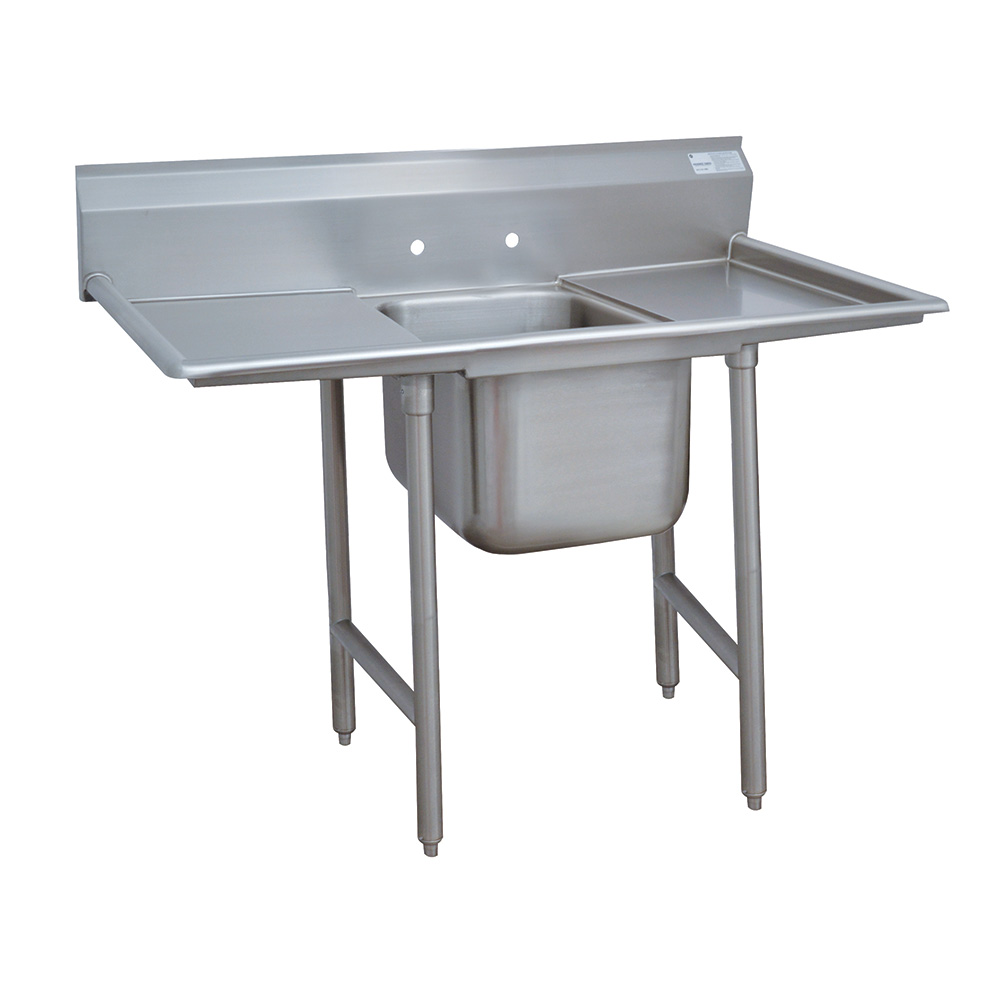

Advance Tabco 9-1-24-18RL 54" 1 Compartment Sink w/ 16"L x 20"W Bowl, 12" Deep
Typically ships in 3 - 4 weeks
$1,920.54 /Each
Advance Tabco 9-1-24-18RL Description
Featuring dual drainboards on the left and right sides, the Advance Tabco 9-1-24-18RL Regaline 1-compartment sink supports both prep and drying operations in a single unit. Each drainboard measures 18 inches long and is formed from the same piece as the 16-inch by 20-inch sink bowl; this bowl measures 12 inches deep and includes 3-inch-radius corners for simplified rinsing and maintenance. The unit is topped with an 8-inch backsplash that includes splash-mounted faucet holes on 8-inch centers, and the tile edge ensures close wall alignment during installation. Centered in the bowl is a 1 1⁄2-inch IPS basket-type waste drain for efficient water discharge.
Manufactured of 18-gauge 304 stainless steel, the Advance Tabco 9-1-24-18RL sink balances strength and corrosion resistance for light-duty environments. It is mounted on 1 5⁄8-inch tubular stainless steel legs, which are stabilized by welded gussets and side cross rails. The open frame base keeps the area beneath the sink accessible while maintaining rigidity. All seams are TIG welded and blended to a satin finish for a cohesive appearance. With an overall footprint of 54 inches left to right by 28 inches front to back, this model is sized for small dish stations requiring integrated wash and drain zones.
- Part of the Regaline series
- 18-ga. 304 stainless steel construction
- Includes (2) integral 18-in. drainboards (left and right)
- 3-in. radius bowl corners
- 8-in. backsplash with splash-mounted faucet holes on 8-in. centers
- Tile edge enables flush installation
- Includes 1 1⁄2-in. IPS basket-type waste drain
- All TIG welded with satin-blended seams
- Open frame base with side cross rails
- 1 5⁄8-in. tubular stainless steel legs with welded gussets
- 1-in.-diameter adjustable stainless steel bullet feet
- Sink bowl: 16 in. L x 20 in. W x 12 in. D
- Overall dimensions: 54 in. W x 28 in. L
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Regaline Sink, 1-compartment, with left & right-hand drainboards, 20" front-to-back x 16"W sink compartment, 12" deep, with 8"H backsplash, stainless steel open frame base, side cross rails, 18" drainboards, 18 gauge 304 stainless steel, 1" adjustable bullet feet, overall 28" F/B x 54" L/R, NSF
Advance Tabco 9-1-24-18RL Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Backsplash Height (in) | 8 |
| Construction | Stainless Steel |
| Depth (in) | 28 |
| Drainboard Length (in) | 18 |
| Drainboard Location | Both Sides |
| Faucet Centers (in) | 8 |
| Faucet Mount | Splash |
| Length (in) | 54 |
| Product | Compartment Sinks |
| Product Type | Commercial Sinks |
| Series | Regaline |
| Sink Depth (in) | 12 |
| Sink Length (in) | 16 |
| Sink Width (in) | 20 |
| Stainless Steel Gauge | 18 gauge |
| Warranty | 90-day Parts |
| Weight | 71.00 |
