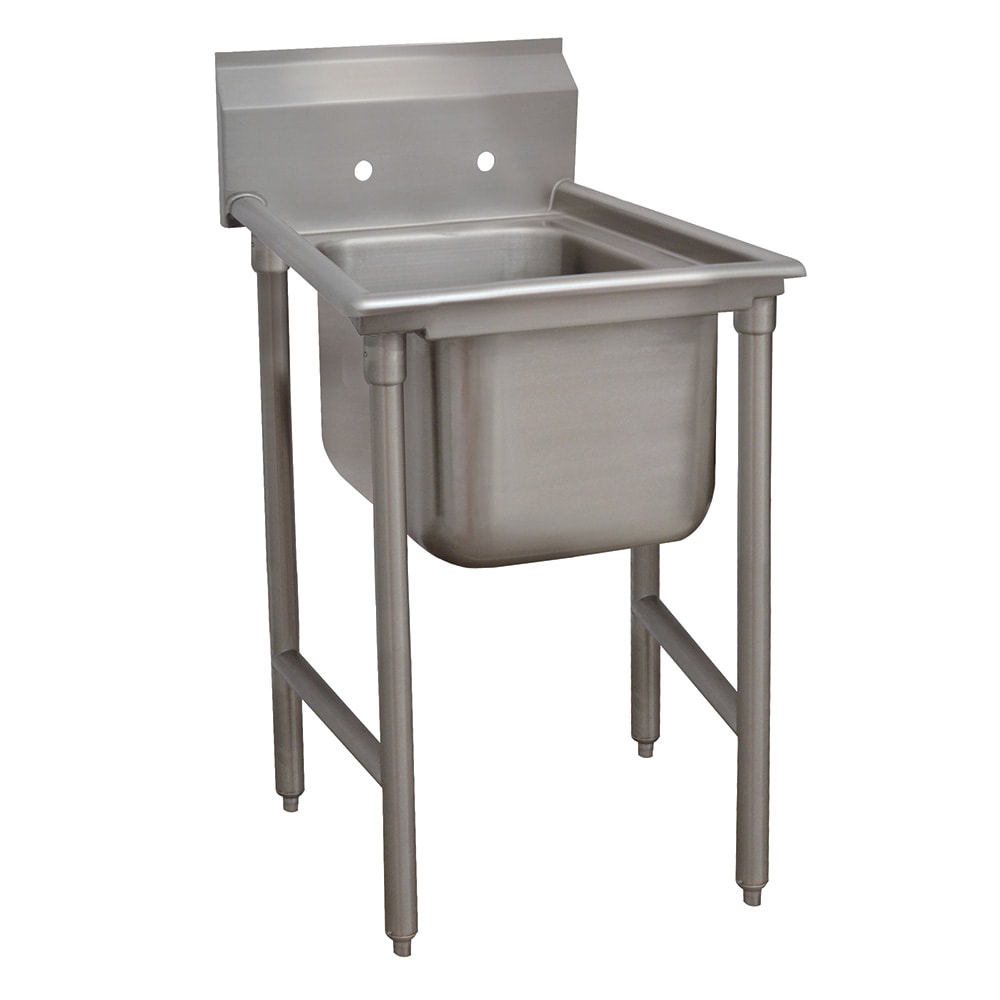

Advance Tabco 9-1-24 27" 1 Compartment Sink w/ 16"L x 20"W Bowl, 12" Deep
Typically ships in 3 - 4 weeks
$1,294.00 /Each
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Advance Tabco 9-1-24 Description
Designed with an 8-inch backsplash and a tile edge for streamlined installation, the Advance Tabco 9-1-24 Regaline 1-compartment sink integrates into compact prep and dish areas. Its 16-inch-wide by 20-inch front-to-back bowl measures 12 inches deep and includes large 3-inch-radius corners that improve accessibility during cleaning. Splash-mounted faucet holes are spaced on 8-inch centers to accommodate common commercial faucet types, while a 1 1⁄2-inch IPS stainless steel basket-type waste drain is centered in the compartment to manage water runoff. TIG-welded seams are blended to a satin finish for a smooth, cohesive appearance across all surfaces.
The Advance Tabco 9-1-24 sink features an 18-gauge 304 stainless steel bowl, supported by a 1 5⁄8-inch tubular stainless steel open-frame base. Side cross rails increase structural integrity, while gussets are welded to a die-embossed reinforcing channel for long-term stability. Adjustable 1-inch stainless steel bullet feet help secure the unit on uneven floors. Measuring 27 inches wide by 28 inches front to back overall, this model fits operations needing a compact, corrosion-resistant sink option.
- Part of the Regaline series
- 18-ga. 304 stainless steel bowl
- 3-in. radius bowl corners
- Tile edge for wall-mounted installation
- 8-in. backsplash with splash-mounted faucet holes on 8-in. centers
- Includes 1 1⁄2-in. IPS basket-type waste drain
- All TIG welded with satin-blended seams
- 1 5⁄8-in. tubular stainless steel legs with stainless gussets
- Stainless steel open frame base with side cross rails
- 1-in. adjustable stainless steel bullet feet
- Sink compartment: 16 in. L x 20 in. W x 12 in. D
- Overall dimensions: 27 in. W x 28 in. D
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Regaline Sink, 1-compartment, 20" front-to-back x 16" W compartment, 12" deep, with 8" high splash, stainless steel open frame base, side cross rails, 18 gauge 304 stainless steel bowl, overall 28" F/B x 27" L/R
Advance Tabco 9-1-24 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Backsplash Height (in) | 8 |
| Construction | Stainless Steel |
| Depth (in) | 28 |
| Drainboard Location | None |
| Faucet Centers (in) | 8 |
| Faucet Mount | Splash |
| Length (in) | 27 |
| Product | Compartment Sinks |
| Product Type | Commercial Sinks |
| Series | Regaline |
| Sink Depth (in) | 12 |
| Sink Length (in) | 16 |
| Sink Width (in) | 20 |
| Stainless Steel Gauge | 18 gauge |
| Warranty | 90-day Parts |
| Weight | 54.00 |
