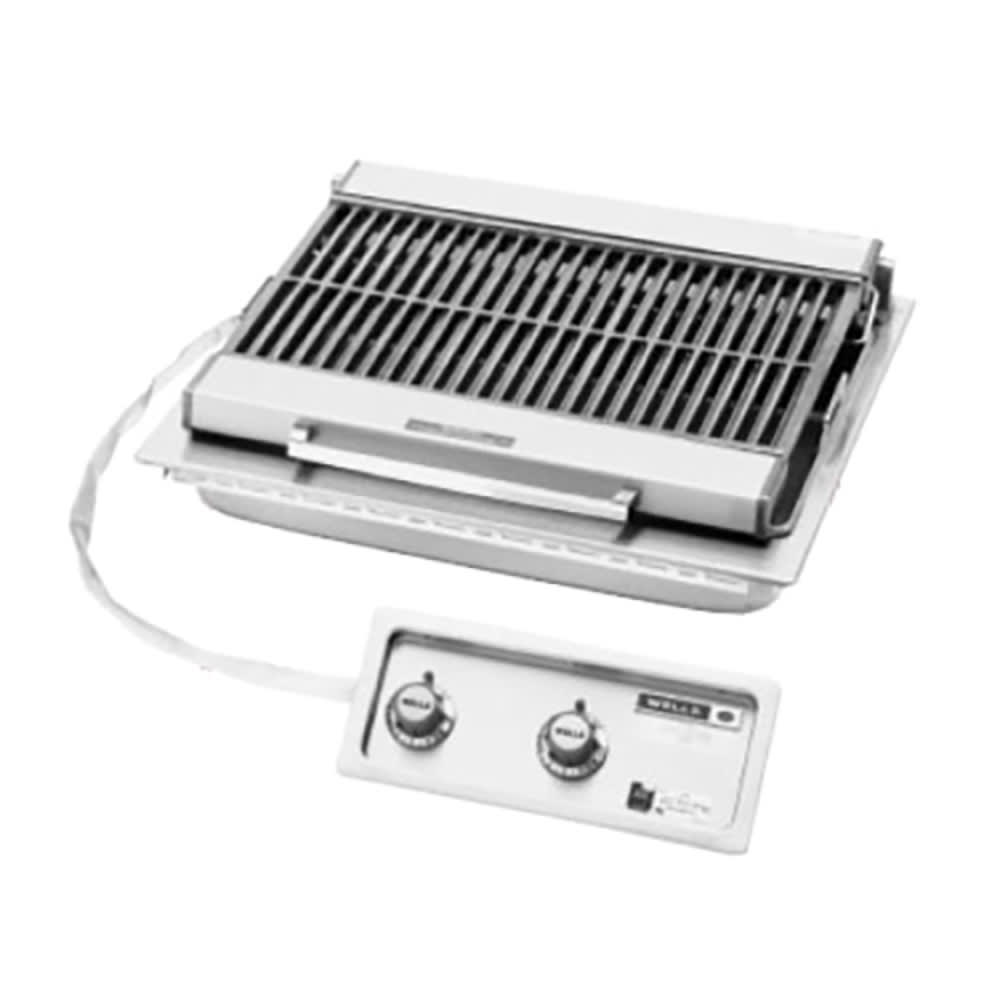

Wells B-406 25" Built In Radiant Charbroiler w/ Cast Iron Grate, 208v
$5,867.00 /Each
Call for details!
Selected Voltage: 208V, 1/3 Phase
| 208V, 1/3 Phase |
| 240V, 1/3 Phase |
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Wells B-406 Description
With a stainless steel top and heavy-duty cast iron grate, the Wells B-406 built-in radiant charbroiler can withstand consistent use because of its rust and corrosion resistance. This unit can reach 600 degrees Fahrenheit in a 10-minute period and is equipped with one-piece, drawn, recessed controls that are built on a stainless steel panel. The cooking surface is split into two zones to permit versatile cooking, and to streamline the cooking process, this unit has a self-cleaning element between the broiler grate ribs. To maintain cleanliness during heavy-use and ease the cleaning process, this unit has a lift-out, drawn drip pan with a handle for safe and efficient use.
- Built-in design
- Stainless steel top
- Heavy-duty cast-iron grate
- B-406 broiler
- Element frame assembly with spring-loaded support rod
- Lift-out, drawn drip pan with handle
- 2 infinite controls with a positive-off position and power-on signal lights
- Self-cleaning element between the broiler grate ribs
- Grease pan and scraper/brush
- Recessed controls on a one-piece, drawn, stainless steel panel
- 10-minute pre-heat time to 600 degrees F
- Grid surface: 21 1⁄2 in. W x 14 1⁄2 in. D
- Overall: 24 3⁄4 in. W x 23 1⁄2 in. D
- 26/22.4 A, 5.4 kW
- 208 V/60 Hz/1 ph (convertible to 3 ph)
- Terminal block for field connection to power supply
*Image may not depict product color, inclusions or accessories.
*Free shipping on Wells B-406 within the 48 contiguous states.
From The Manufacturer
Charbroiler, built-in, electric, cast iron grate, 25" wide, stainless steel construction, with grease pan and scraper/brush, RU, CE, 208v/60/1ph/3ph
Wells B-406 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Wells |
| Cooking Surface | Cast Iron |
| Function | Heavy Duty |
| Heat | Electric |
| Hertz | 60 |
| Number of Burners | 2 |
| Phase | 1 |
| Phase | 3 |
| Product | Charbroilers |
| Product Type | Countertop Cooking Equipment |
| Rating | Better |
| Type | Radiant |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor; 1-year Cast Iron Grates, Burners, & Burner Shields |
| Width (in) | 23.75 |
| Weight | 68.00 |
