Jackson AJ-86CE 102" High Temp Conveyor Dishwasher w/ 287 Racks/hr Capacity, 208v/3ph
Typically ships in 8 - 10 weeks
$65,477.00 /Each
Call for details!
Selected Voltage: 208V, 3 Phase
| 208V, 3 Phase |
| 208V, 1 Phase |
Attention: Order by 07-01-2026 to save before the price increases!
Jackson AJ-86CE Description
The Jackson AJ-86CE AJ-86 Vision high-temperature conveyor dishwasher integrates adjustable bullet feet that compensate for floor irregularities, ensuring stable positioning in high-traffic setups. Made of corrosion-resistant stainless steel, its 102-inch-long by 25-inch-wide by 75 1⁄2-inch-high body endures constant heat and moisture exposure without warping. Through the 25-inch opening, racks move along an Adjust-A-Peak™ conveyor that shifts travel speed to match soil load and rack density. Its electric, dual-tank design splits wash and power rinse cycles to create defined stages that handle 287 racks per hour.
The Jackson AJ-86CE dishwasher features a 22-inch recirculating prewash that captures and redistributes water to break down debris. EnergyGuard™ controls maintain tank heat and minimize active draw, while self-draining pumps purge residual water during shutdown. An automatic cleaning setting rinses the interior at the end of service, and 8-inch vent cowls with a splash shield pair with vent fan control to direct steam away from the chamber.
- AJ-86 Vision series
- Dual-tank design
- Washes 287 racks per hr.
- Stainless steel construction
- High-temperature sanitizing
- EnergyGuard controls
- Adjust-A-Peak adjustable conveyor speed
- Automatic clean cycle
- Self-draining pumps
- 22-in. recirculating prewash
- Electric tank heat
- Vent fan control
- 8-in. vent cowls with splash shield
- 25-in.-H opening
- Adjustable bullet feet
- 102 in. L x 25 in. W x 75 1⁄2 in. H
- 85.2 A
- 208 V/60 Hz/3 ph

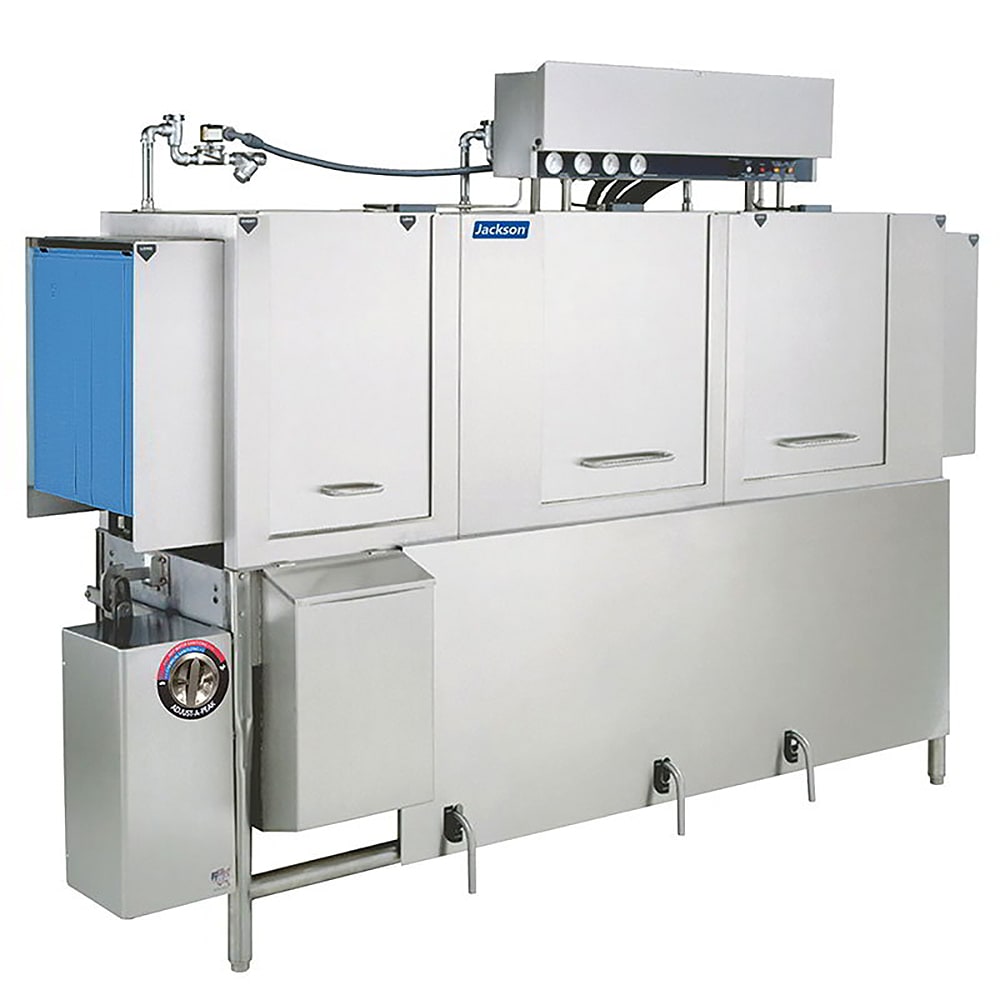

*Image may not depict product color, inclusions or accessories.
*Free shipping on Jackson AJ-86CE within the 48 contiguous states.
From The Manufacturer
Dishwasher, conveyor type, adjustable conveyor speed, approximately (287) racks/hour high temperature sanitizing rinse, (2) tank design (wash/power rinse) with 22" recirculating prewash, 25"H clearance through machine, stainless steel construction, electric tank heat, 8" vent cowls/splash shield, vent fan control, C ETL US Listed, NSF
Jackson AJ-86CE Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Jackson |
| Cavity Height (in) | 25 |
| Heat | Electric |
| Height (in) | 75.5 |
| Hertz | 60 |
| Length (in) | 102 |
| Phase | 3 |
| Product | Dishwashers |
| Product Type | Dishwashing Equipment & Supplies |
| Racks per Hour | 287 |
| Rating | Better |
| Sanitizing | High Temp |
| Special Features | Auto Clean Cycle |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Width (in) | 25 |
| Weight | 1040.00 |
