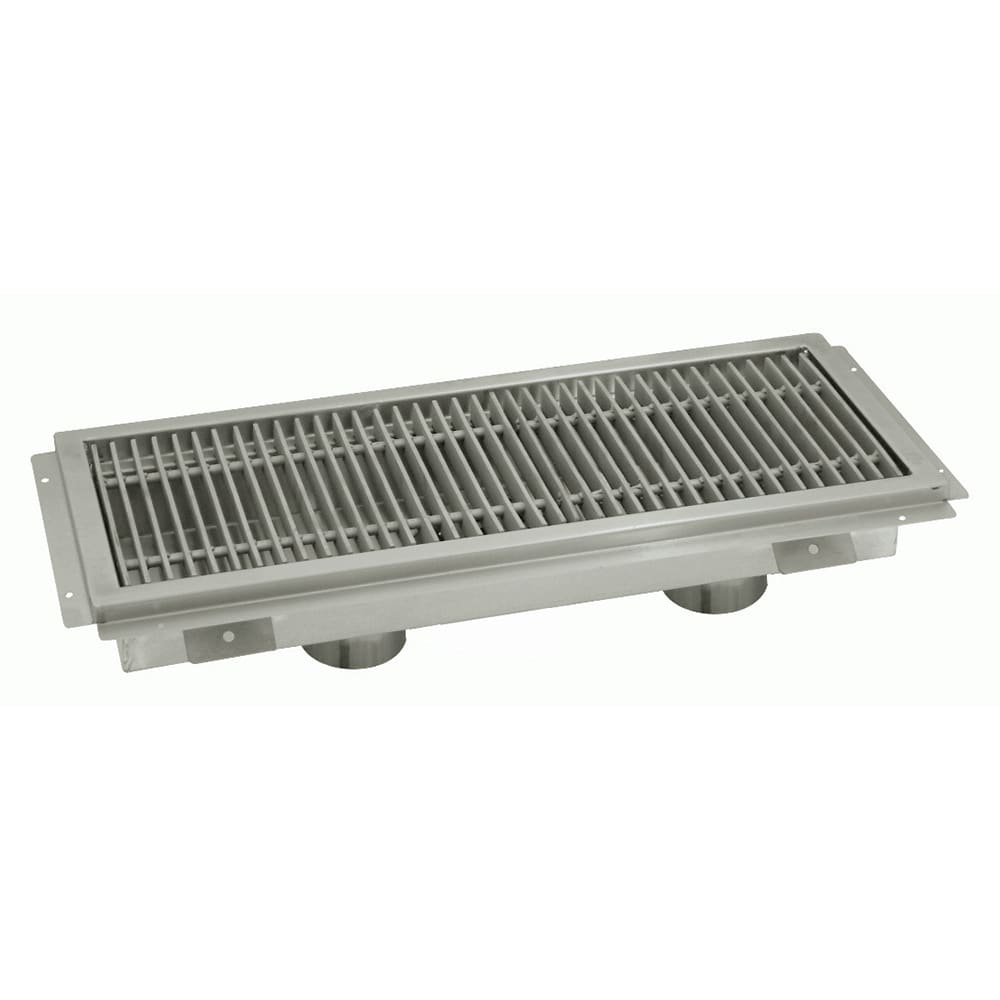

Advance Tabco FTG-2496 Floor Trough - Removable Strainer Basket, 24" x 96" x 4", 14 ga 304 Stainless

The Advance Tabco FTG-2496 floor trough is constructed of 14-gauge type 304 stainless steel and TIG welded for long-term reliability in commercial flooring systems. A satin-polished finish smooths all exterior corners, supporting daily sanitation and wear resistance. Its creased base improves flow, and the perimeter flange mounts securely to subfloor surfaces without shifting on tile installations.

Subway-style stainless steel grating rests over the Advance Tabco FTG-2496 floor trough, providing durable support for foot traffic while allowing efficient drainage through the 9 9⁄16-inch bar spacing. A removable strainer basket with a handle simplifies debris removal during cleaning. This model includes two drain openings and a 3 3⁄4-inch vertical step to align with finished floors.

Product Details

• FTG series
• 14-ga. type 304 stainless steel construction
• All TIG-welded seams with satin-polished corners
• Creased floor design
• Perimeter flange for direct subfloor mounting
• 3 3⁄4-in. vertical step
• Removable perforated stainless steel strainer basket with handle
• Stainless steel subway-style grating made of 3 3⁄16-in. x 1-in. solid bar with 9 9⁄16-in. spacing between bars
• 4-in. O.D. waste pipe with 3-in.-long plumbing sleeve included
• Supplied with (2) drain openings
• Overall dimensions: 96 in. L x 24 in. W x 4 in. H
