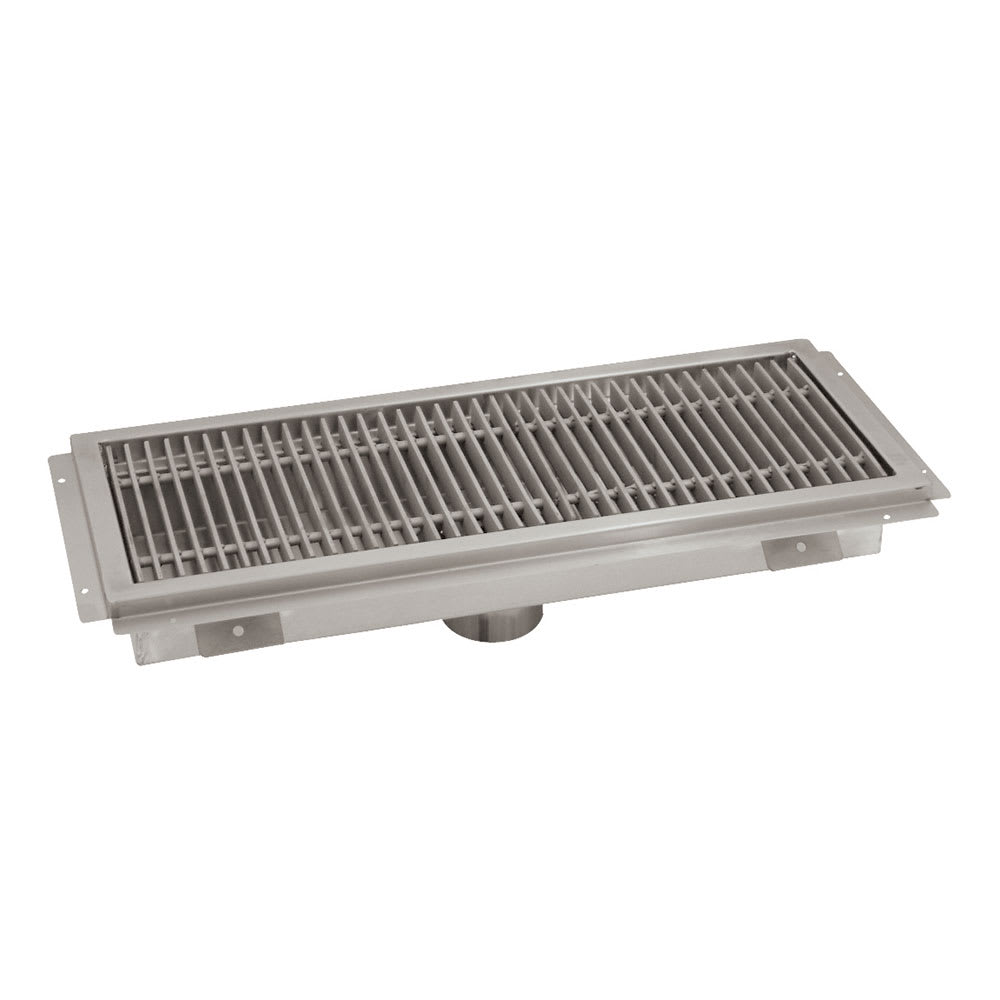

Advance Tabco FTG-2484 Floor Trough - Removable Strainer Basket, 24" x 84" x 4", 14 ga 304 Stainless
Typically ships in 4 - 8 Business Days
$3,515.94 /Each
Advance Tabco FTG-2484 Description
A removable perforated stainless steel strainer basket simplifies cleaning inside the Advance Tabco FTG-2484 floor trough. Its handled insert catches debris before it reaches the drain, promoting cleaner operation. Polished TIG-welded seams increase structural integrity, while the 3 3⁄4-inch vertical step transitions smoothly from tile floors to the drain area for level footing.
The creased floor in the Advance Tabco FTG-2484 floor trough moves liquids efficiently toward the waste outlet. Overhead, stainless steel subway-style grating—made of 3 3⁄16-inch by 1-inch solid bars—supports weight while allowing flow between bars spaced 9 9⁄16 inches apart. A perimeter flange secures the trough to the subfloor and reduces shifting during frequent use.
Product Details
- FTG series
- 14-ga. type 304 stainless steel construction
- All TIG-welded seams with satin-polished corners
- Creased floor design
- Perimeter flange for direct subfloor mounting
- 3 3⁄4-in. vertical step
- Removable perforated stainless steel strainer basket with handle
- Stainless steel subway-style grating made of 3 3⁄16-in. x 1-in. solid bar with 9 9⁄16-in. spacing between bars
- 4-in. O.D. waste pipe with 3-in.-long plumbing sleeve included
- Supplied with (1) drain openings
- Overall dimensions: 84 in. L x 24 in. W x 4 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Floor Trough, 84"L x 24"W x 4" deep, 14 gauge 304 stainless steel, includes stainless steel subway grating constructed from 3/16" x 1" bars, 4" O.D. waste pipe 3"L, pitched towards waste, NSF
Advance Tabco FTG-2484 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Depth (in) | 4 |
| Grate Material | Stainless Steel |
| Length (in) | 84 |
| Material | Stainless Steel |
| Product | Floor Troughs |
| Product Type | Floor Maintenance |
| Series | FTG Series |
| Shape | Rectangular |
| Warranty | 90-day Parts |
| Width (in) | 24 |
| Weight | 218.00 |
