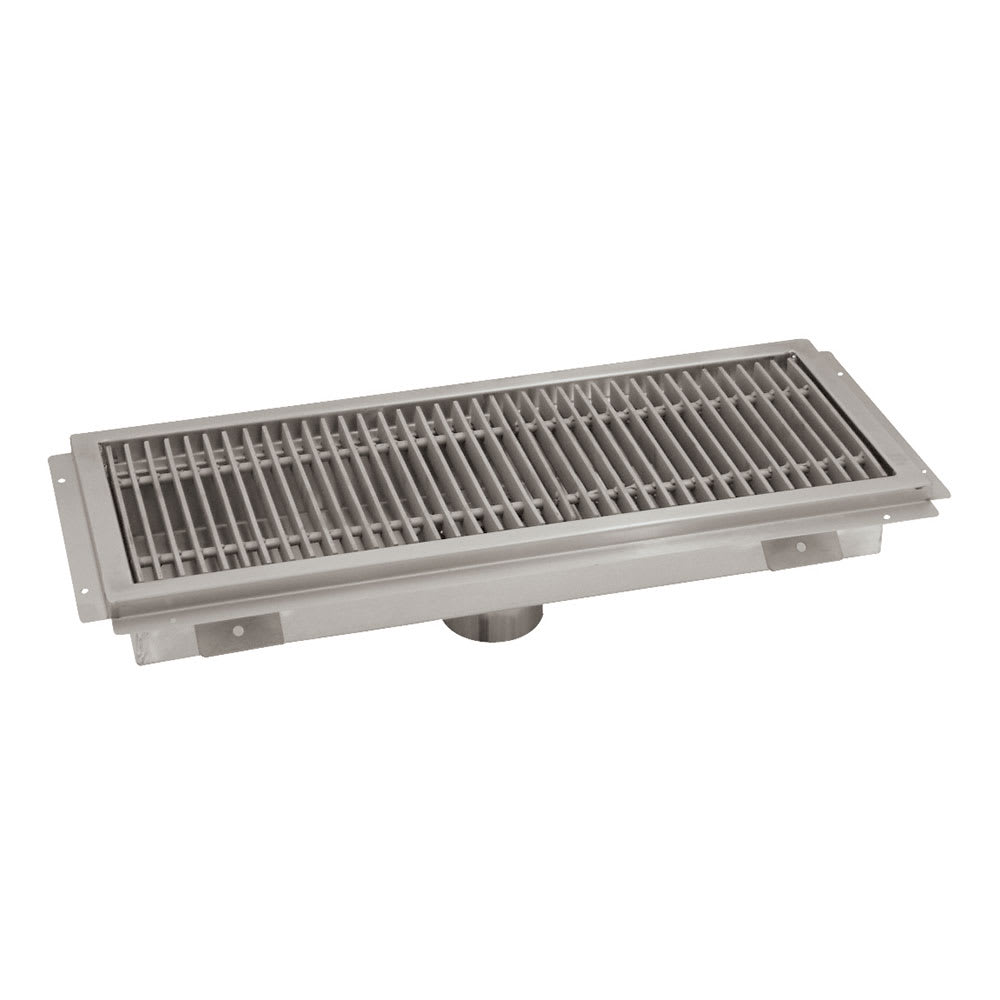

Advance Tabco FTG-1848 Floor Trough - Removable Strainer Basket, 18" x 48" x 4", 14 ga 304 Stainless

The Advance Tabco FTG-1848 floor trough features a rectangular layout measuring 48 inches long by 18 inches wide and 4 inches deep, engineered to manage drainage beneath prep stations, dish areas, or production equipment. Its 14-gauge type 304 stainless steel body includes a 3⁄4-inch vertical step to accommodate tiled flooring and a perimeter flange that mounts securely to the subfloor for a permanent fit in commercial environments.

To handle solids and waste runoff, the Advance Tabco FTG-1848 floor trough is equipped with a removable perforated stainless steel strainer basket and a 4-inch O.D. plumbing sleeve that’s 3 inches long and pitched toward the outlet to encourage flow. The stainless steel subway-style grating is fabricated from 3⁄16-inch by 1-inch solid bar stock, spaced 9⁄16 inch apart to allow consistent drainage while withstanding heavy foot traffic. For lasting use, this model is fully TIG welded with polished external corners to maintain structural integrity and appearance in moisture-prone spaces.

Product Details

• Part of the FTG series
• 14-ga. type 304 stainless steel construction
• Rectangular
• Designed for floor installation
• Includes 4-in. O.D. x 3-in. L plumbing sleeve
• Compatible with 4-in. waste pipe connection
• Pitched bottom directs water to waste outlet
• Includes removable perforated stainless steel strainer basket with handle
• Subway-style grate made from 3⁄16-in. x 1-in. solid 304 stainless steel bar stock
• 9⁄16-in. spacing between grate bars
• Creased interior for controlled drainage
• All TIG-welded seams
• External corners welded and satin polished
• Perimeter flange mounts directly to subfloor
• 3⁄4-in. vertical step supports floor tile installation
• Overall dimensions: 18 in. W x 48 in. L x 4 in. D
