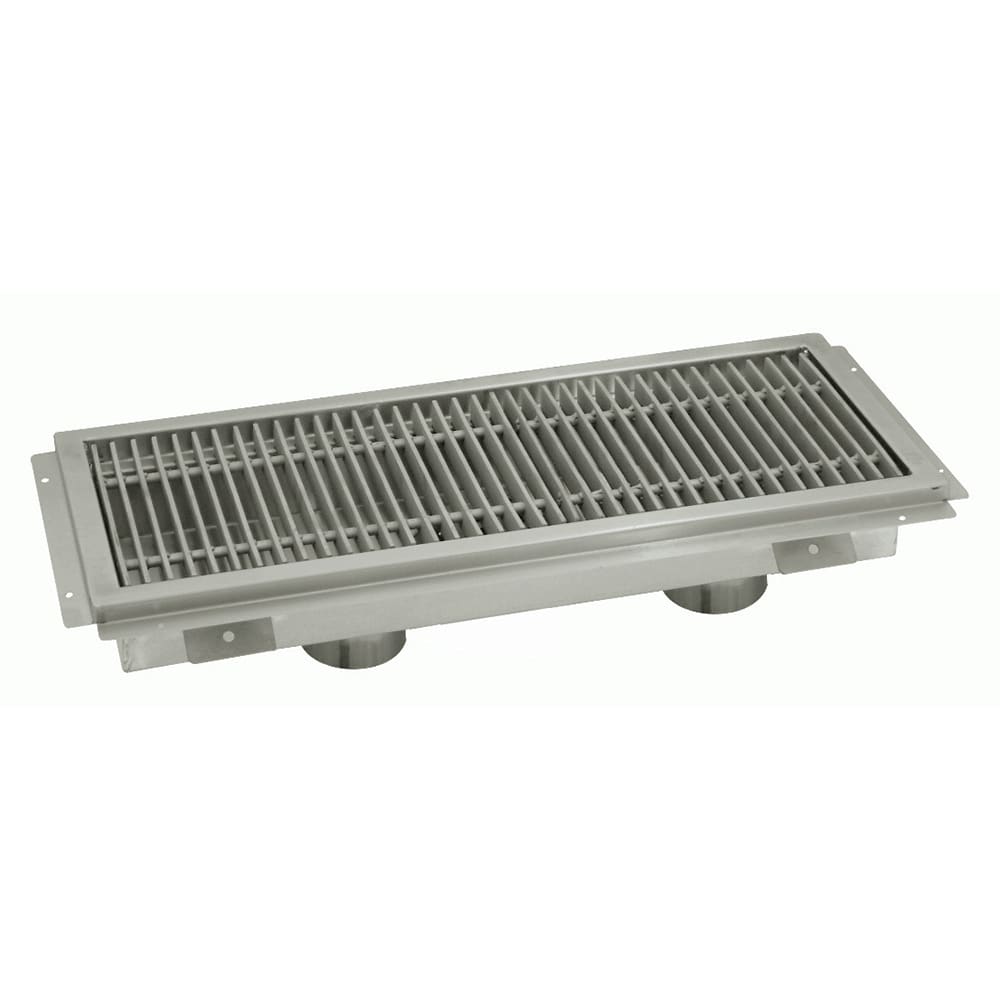

Advance Tabco FTG-18108 Floor Trough - Removable Strainer Basket, 18" x 108" x 4", 14 ga 304 Stainless
Typically ships in 4 - 8 Business Days
$3,793.26 /Each
Advance Tabco FTG-18108 Description
The Advance Tabco FTG-18108 floor trough features TIG-welded seams polished to a satin finish, eliminating rough edges that trap debris. Designed to manage drainage from both ends, this floor trough includes two drain openings that distribute water evenly across its 108-inch length. A sloped floor interior channels water toward the connected plumbing system for removal.
Inside the Advance Tabco FTG-18108 floor trough, a removable perforated strainer basket with handle captures solid debris before it enters the drain line. To secure the unit directly to the subfloor, a perimeter flange surrounds the frame, providing a stable installation point. Subway-style grating promotes even flow with spaced bars designed for reliable drainage performance.
Product Details
- FTG series
- 14-ga. type 304 stainless steel construction
- All TIG-welded seams with satin-polished corners
- Creased floor design
- Perimeter flange enables direct subfloor mounting
- 3 3⁄4-in. vertical step
- Removable perforated stainless steel strainer basket with handle
- Stainless steel subway-style grating made of 3 3⁄16-in. x 1-in. solid bar
- 9 9⁄16-in. spacing between bars
- 4-in. O.D. waste pipe with 3-in.-long plumbing sleeve included
- Supplied with (2) drain openings
- Overall dimensions: 108 in. L x 18 in. W x 4 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Floor Trough, 108"L x 18"W x 4" deep, 14 gauge 304 stainless steel, includes stainless steel subway grating constructed from 3/16" x 1" bars, 4" O.D. waste pipe 3"L, pitched towards waste (NOTE: This unit supplied with 2 drain openings), NSF
Advance Tabco FTG-18108 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Depth (in) | 4 |
| Grate Material | Stainless Steel |
| Length (in) | 108 |
| Material | Stainless Steel |
| Product | Floor Troughs |
| Product Type | Floor Maintenance |
| Series | FTG Series |
| Shape | Rectangular |
| Warranty | 90-day Parts |
| Width (in) | 18 |
| Weight | 208.00 |
