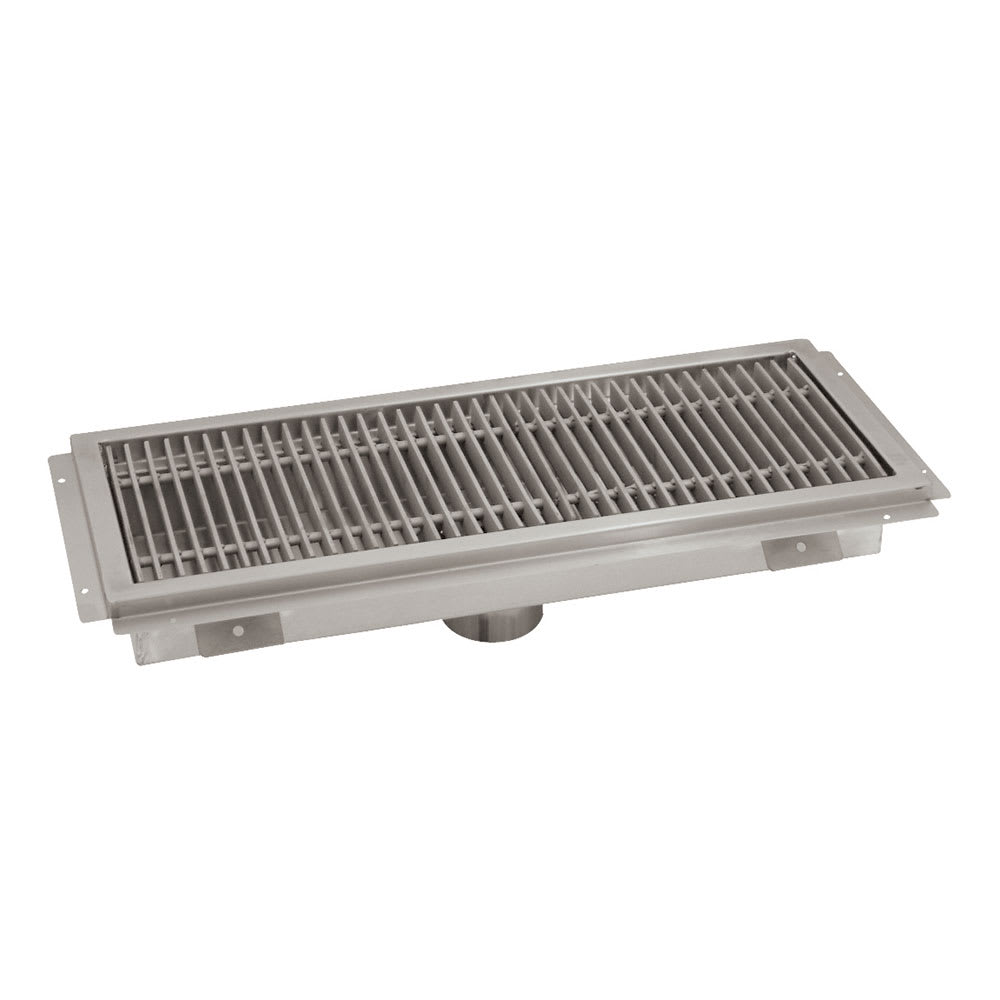

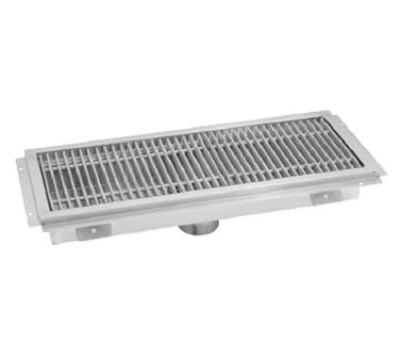

Advance Tabco FTG-1254 Floor Trough - Removable Strainer Basket, 12" x 54" x 4", 14 ga 304 Stainless
Typically ships in 4 - 8 Business Days
$1,759.50 /Each
Advance Tabco FTG-1254 Description
To anchor the unit directly to the building surface, the perimeter flange surrounding the Advance Tabco FTG-1254 floor trough provides a stable mount and clean transition to the floor. A 3 3⁄4-inch vertical step aligns with tiled surfaces. This model also includes a removable perforated strainer basket to support cleaner plumbing performance by capturing large debris.
The Advance Tabco FTG-1254 floor trough includes a 4-inch O.D. waste pipe with a 3-inch sleeve for plumbing connections. Water exits through a single drain opening positioned at the low point of the sloped interior, ensuring liquid is directed efficiently. Subway-style stainless steel grating covers the top and is spaced for steady flow and clog resistance.
Product Details
- FTG series
- 14-ga. type 304 stainless steel construction
- All TIG-welded seams with satin-polished corners
- Creased floor design
- Perimeter flange enables direct subfloor mounting
- 3 3⁄4-in. vertical step
- Removable perforated stainless steel strainer basket with handle
- Stainless steel subway-style grating made of 3 3⁄16-in. x 1-in. solid bar
- 9 9⁄16-in. spacing between bars
- 4-in. O.D. waste pipe with 3-in.-long plumbing sleeve included
- Supplied with 1 drain opening
- Overall dimensions: 54 in. L x 12 in. W x 4 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Floor Trough, 54"L x 12"W x 4" deep, 14 gauge 304 stainless steel, includes stainless steel subway grating constructed from 3/16" x 1" bars, removable stainless steel strainer basket, 4" O.D. waste pipe 3"L, pitched towards waste, NSF
Advance Tabco FTG-1254 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Depth (in) | 4 |
| Grate Material | Stainless Steel |
| Includes | Removable Strainer |
| Length (in) | 54 |
| Material | Stainless Steel |
| Product | Floor Troughs |
| Product Type | Floor Maintenance |
| Series | FTG Series |
| Shape | Rectangular |
| Warranty | 90-day Parts |
| Width (in) | 12 |
| Weight | 96.00 |
