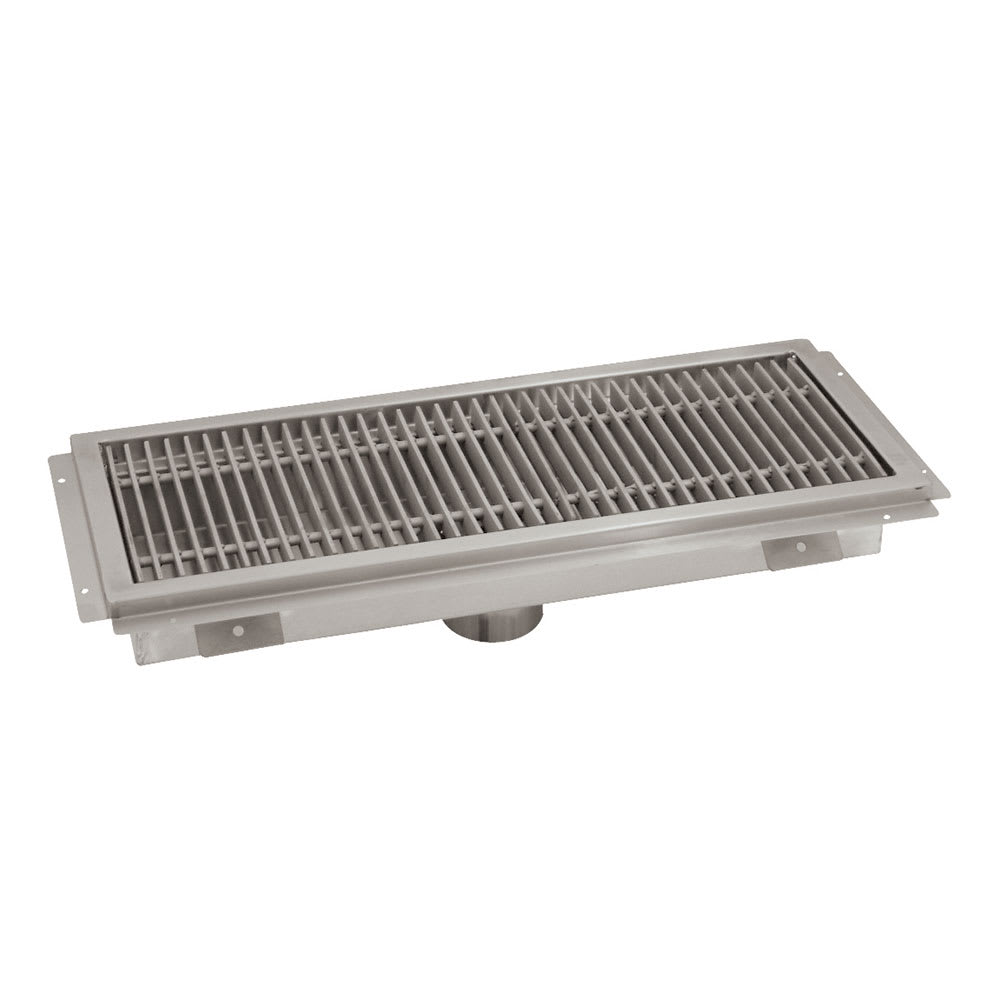

Advance Tabco FTG-1230 Floor Trough - Removable Strainer Basket, 12" x 30" x 4", 14 ga 304 Stainless
Typically ships in 4 - 8 Business Days
$1,356.34 /Each
Advance Tabco FTG-1230 Description
Featuring a creased base design, the Advance Tabco FTG-1230 floor trough directs liquids toward the plumbing line, supporting reliable drainage in wet-use areas. Its 14-gauge type 304 stainless steel body withstands routine washdowns, while the satin-polished corners reduce buildup in tough-to-reach edges. A perimeter flange helps lock the frame directly into the subfloor during installation.
To support efficient cleanup, the removable stainless steel strainer basket in the Advance Tabco FTG-1230 floor trough traps debris before it clogs the pipe. Its built-in handle makes it easy to remove and empty, saving time during cleanup. Above the basket, subway-style grating with 9 9⁄16-inch spacing lets water pass through smoothly while blocking larger solids.
Product Details
- FTG series
- 14-ga. type 304 stainless steel construction
- All TIG-welded seams with satin-polished corners
- Creased floor design
- Perimeter flange enables direct subfloor mounting
- 3 3⁄4-in. vertical step
- Removable perforated stainless steel strainer basket with handle
- Stainless steel subway-style grating made of 3 3⁄16-in. x 1-in. solid bar
- 9 9⁄16-in. spacing between bars
- 4-in. O.D. waste pipe with 3-in.-long plumbing sleeve included
- Supplied with 1 drain opening
- Overall dimensions: 30 in. L x 12 in. W x 4 in. H
*Image may not depict product color, inclusions or accessories.
From The Manufacturer
Floor Trough, 30"L x 12"W x 4" deep, 14 gauge 304 stainless steel, includes stainless steel subway grating constructed from 3/16" x 1" bars, removable stainless steel strainer basket, 4" O.D. waste pipe 3"L, pitched towards waste, NSF
Advance Tabco FTG-1230 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Advance Tabco |
| Depth (in) | 4 |
| Grate Material | Stainless Steel |
| Includes | Removable Strainer |
| Length (in) | 30 |
| Material | Stainless Steel |
| Product | Floor Troughs |
| Product Type | Floor Maintenance |
| Series | FTG Series |
| Shape | Rectangular |
| Warranty | 90-day Parts |
| Width (in) | 12 |
| Weight | 56.00 |
