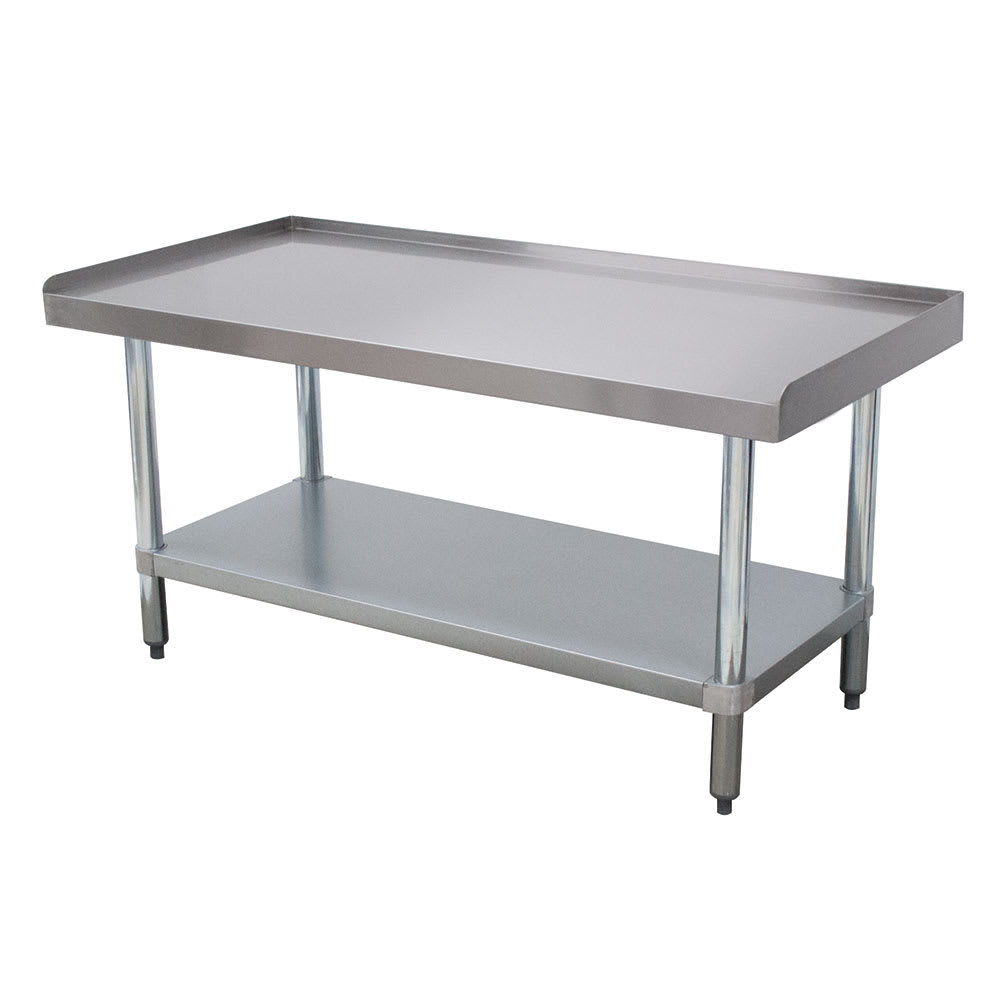

Advance Tabco EG-306 72" x 30" Stationary Equipment Stand for General Use, Undershelf

Built with an adjustable undershelf and TIG-welded frame, the Advance Tabco EG-306 equipment stand supports general-use equipment in commercial kitchens. The undershelf is made of 18-gauge galvanized steel and attaches to the legs using aluminum die-cast clamps, which eliminate the need for exposed hardware. Its 1 5⁄8-inch-diameter galvanized tubular steel legs provide stability and are reinforced by welded gussets, while 1-inch adjustable plastic bullet feet level the stand on uneven floors.

The stainless steel work surface on the Advance Tabco EG-306 equipment stand is constructed of 14-gauge 304 series steel with a galvanized understructure for added strength. It’s polished to a satin finish for a clean appearance and sound deadened to minimize vibration from heavy equipment. Galvanized hat channels are roll formed and secured underneath with structural adhesive and weld studs, then reinforced by welded gussets. A 1-inch upturn on the rear and both sides contains spills, and the front is formed with a no-drip v-edge to prevent liquid runoff.

Product Details

• EG Series
• Undershelf base style
• Top constructed of 14-ga. 304 series stainless steel
• Top features 1-in. upturn on rear and both sides
• Front no-drip v-edge
• Top surface mechanically polished to satin finish
• Top is sound deadened
• Galvanized hat channels are roll formed and embossed
• Hat channels bonded with structural adhesive and secured with weld studs
• Gussets welded to support hat channels
• TIG-welded construction
• Adjustable undershelf made of 18-ga. galvanized steel
• Leg-to-shelf aluminum die-cast clamps
• Legs are 1 5⁄8-in.-dia. tubular galvanized steel
• Galvanized steel gussets
• 1-in. adjustable plastic bullet feet
• Overall dimensions: 72 in. W x 30 in. D x 25 in. H
