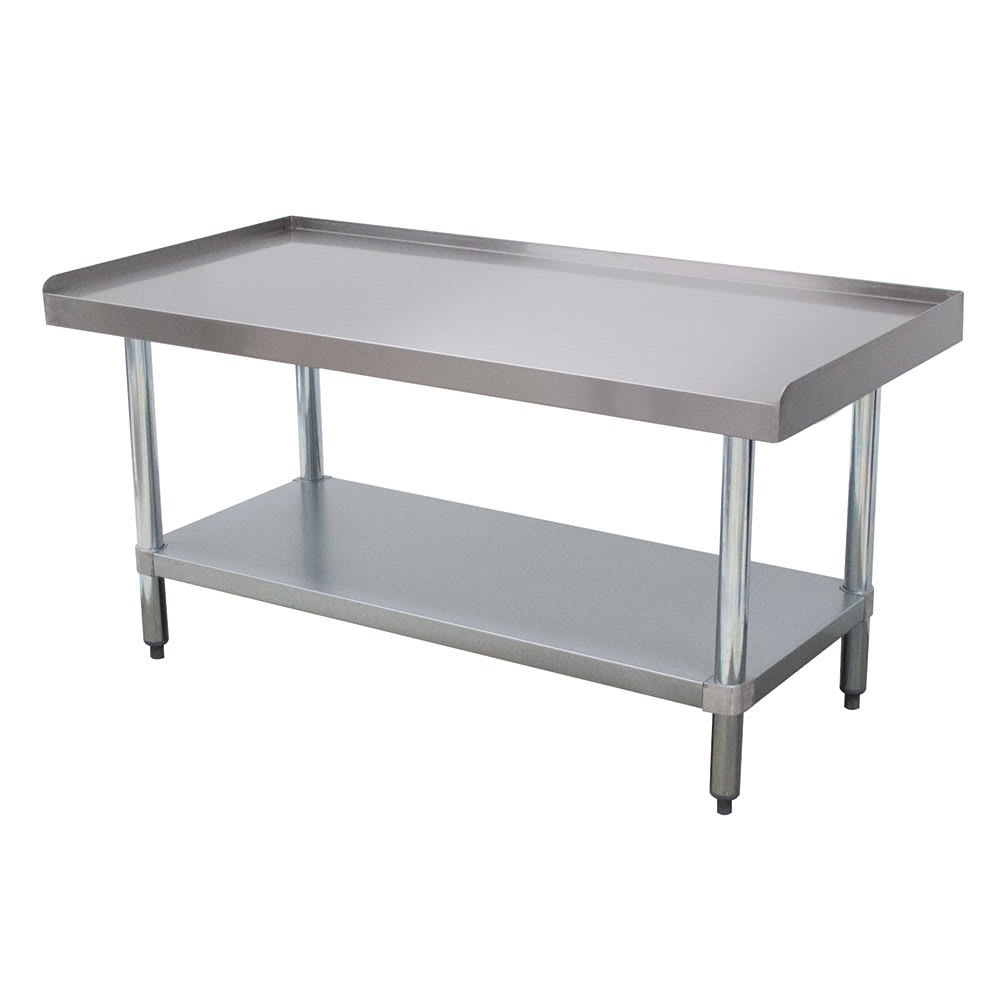

Advance Tabco EG-305 60" x 30" Stationary Equipment Stand for General Use, Undershelf

Equipped with galvanized steel legs and 1-inch adjustable plastic bullet feet, the Advance Tabco EG-305 equipment stand is designed to remain stable on uneven surfaces. Each leg measures 1 5⁄8 inches in diameter and is reinforced with galvanized gussets for added strength. The adjustable undershelf, constructed of 18-gauge galvanized steel, mounts securely using aluminum die-cast clamps that eliminate unsightly hardware and support various storage configurations.

Galvanized hat channels beneath the top of the Advance Tabco EG-305 equipment stand are roll formed and embossed to strengthen the 14-gauge 304 series stainless steel surface. These channels are bonded with structural adhesive and welded studs, then reinforced with welded gussets. The top is polished to a satin finish for a uniform appearance and sound deadened to minimize noise during use. To contain items and reduce mess, the rear and both sides feature 1-inch upturns, while the front is fitted with a no-drip v-edge to divert liquid runoff.

Product Details

• EG Series
• Undershelf base style
• Top constructed of 14-ga. 304 series stainless steel
• Top features 1-in. upturn on rear and both sides
• Front no-drip v-edge
• Top surface mechanically polished to satin finish
• Top is sound deadened
• Galvanized hat channels are roll formed and embossed
• Hat channels bonded with structural adhesive and secured with weld studs
• Gussets welded to support hat channels
• TIG-welded construction
• Adjustable undershelf made of 18-ga. galvanized steel
• Leg-to-shelf aluminum die-cast clamps
• Legs are 1 5⁄8-in.-dia. tubular galvanized steel
• Galvanized steel gussets
• 1-in. adjustable plastic bullet feet
• Overall dimensions: 60 in. W x 30 in. D x 25 in. H
