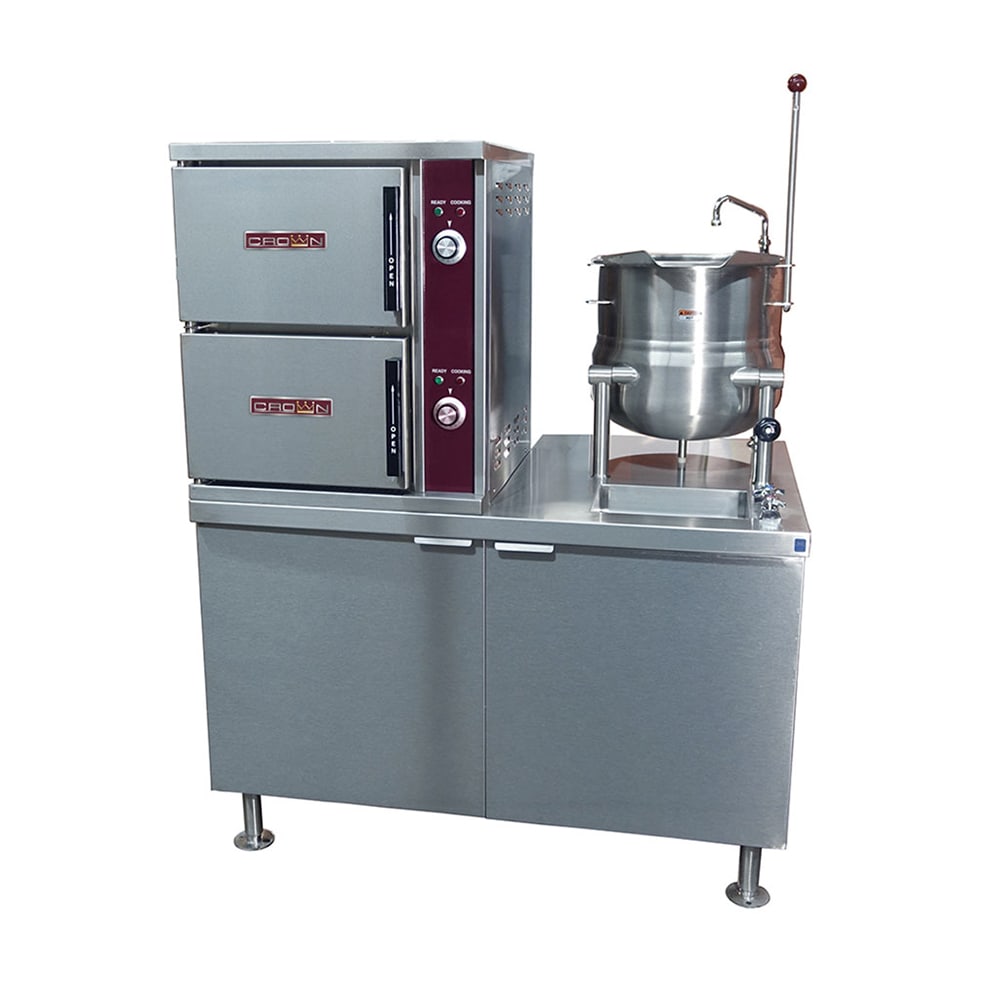

Crown Steam SCX-2-6 (6) Pan / (1) Kettle Convection Steamer - Cabinet, Steam Coil

The Crown SCX-2-6 convection steamer and steam kettle has a cabinet base with a steam coil boiler, hot water faucet and sink. Eliminating the need for buckets, the faucet conveniently provides water at the unit, and it can be used to add water directly to the kettle or rinse tools in the sink. To create food-safe steam, the base's steam coil boiler uses steam and water from an external source. Hot steam from the connection flows through coils, heats up the surrounding water, and turns the water into steam. This design is helpful in locations where there is a boiler, though its steam is not suitable for cooking food.

This Crown SCX-2-6 convection steamer and kettle can accommodate 6 gallons of product in the kettle and six pans of product in its steamer. Full-size pans of various sizes can slide onto supports in the steamer, as steam circulates around the interior to create moist, cooked dishes. A gasket seal along the door's perimeter prevents the steam from escaping, and the door shuts in heat with its lock-and-seal design. Each of the two steamer sections has its own status lights and 60-minute timer. When a cook cycle ends, the time-up alarms alert users, so they can promptly remove food from the interior.

Product Details

• Rust-resistant stainless steel construction has an elegant satin finish
• Angle frame base supports 2-section steamer and 6-gal. kettle
• 6-gal. kettle can cook large batches of food
• Cabinet base has a built-in sink and steam coil boiler
• Faucet offers water access
• Automatic blowdown reduces scale buildup in the boiler
• Automatic controls help maintain the correct water level
• Water gauge shows the boiler water level
• High-pressure limit and relief valve prevent internal damage and user injury
• Cabinet doors have magnetic latches
• Adjustable feet enable level installation
• 2-in. IPS drain
• Sink hot water tubing is ³⁄₈-in. O.D.
• Sink drain tubing is 1¹⁄₈-in. O.D.

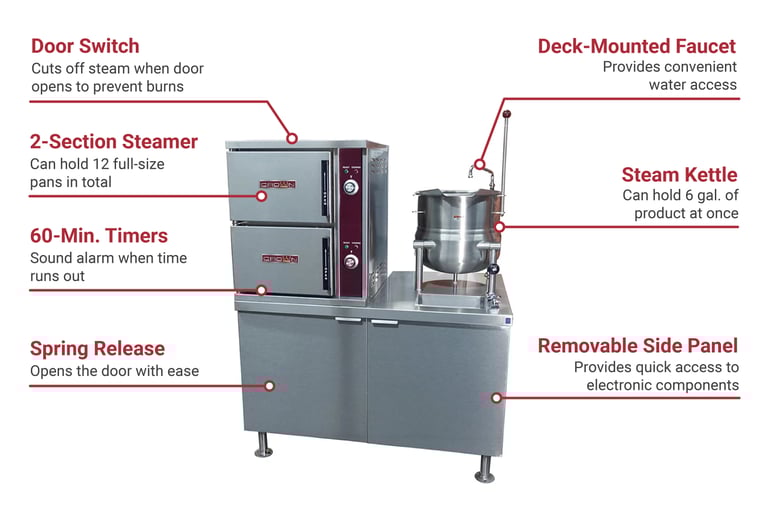

Steamer Construction

• 2 sections have separate controls
• Lock-and-seal mechanism keeps doors closed during operation
• Door gasket seal traps in heat and moisture
• Spring release opens doors without difficulty
• Door-open steam cutoff prevents user burns
• Drip trough in door frame catches and removes condensate
• Sturdy welded interiors
• Pan supports can be removed for cleaning
• Illuminated power switch
• Ready and cooking indicator lights
• 60-min. timer with a time-up alarm
• Side panel is removable for component access

Steamer Pan Capacities

• (12) 1-in.-deep, full-size pans
• (6) 2¹/₂-in.-deep, full-size pans
• (4) 4-in.-deep, full-size pans
• (2) 6-in.-deep, full-size pans

Dimensions & Utilities

• Compartments: 14 in. W x 21 in. D x 10⁵/₈ in. H
• Overall: 44 in. W x 33 in. D x 62¹/₁₀ in. H
• 120 V/50-60 Hz/1 ph
• ³⁄₄-in. IPS steam connection
• ¹⁄₂-in. NPT potable water connection

Product Features

*Free shipping on Crown Steam SCX-2-6 within the 48 contiguous states.

From The Manufacturer

Convection Steamer/Kettle, steam coil, (2) compartment, (1) 6 gallon kettle, (3) 12" x 20" pan capacity per compartment, 44" cabinet base, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & intregal sink, CSD-1 code package, stainless steel interior & exterior, 6" legs, adjustable bullet feet front, adjustable flanged feet rear, CSA, NSF

*Image may not depict product color, inclusions or accessories.

Crown Steam SCX-2-6 Specifications

Spec Attribute	Spec Value
Manufacturer	Crown Steam
Application	High Volume
Base	Cabinet
Controls	Digital
Depth (in)	33
Heat	Steam Coil
Height (in)	62.1
Hertz	60
Kettle Capacity	6 gal
No. of Compartments	2
No. of Kettles	1
Pan Capacity	3 to 9 Pans
Phase	1
Product	Steamer/Kettle Combos
Product Type	Cooking Equipment
Steam Generator	Boiler-Based
Steamer Type	Convection
Voltage	120
Warranty	1-year Limited Parts & Labor
Water Source	Plumbed
Width (in)	44
Weight	700.00
