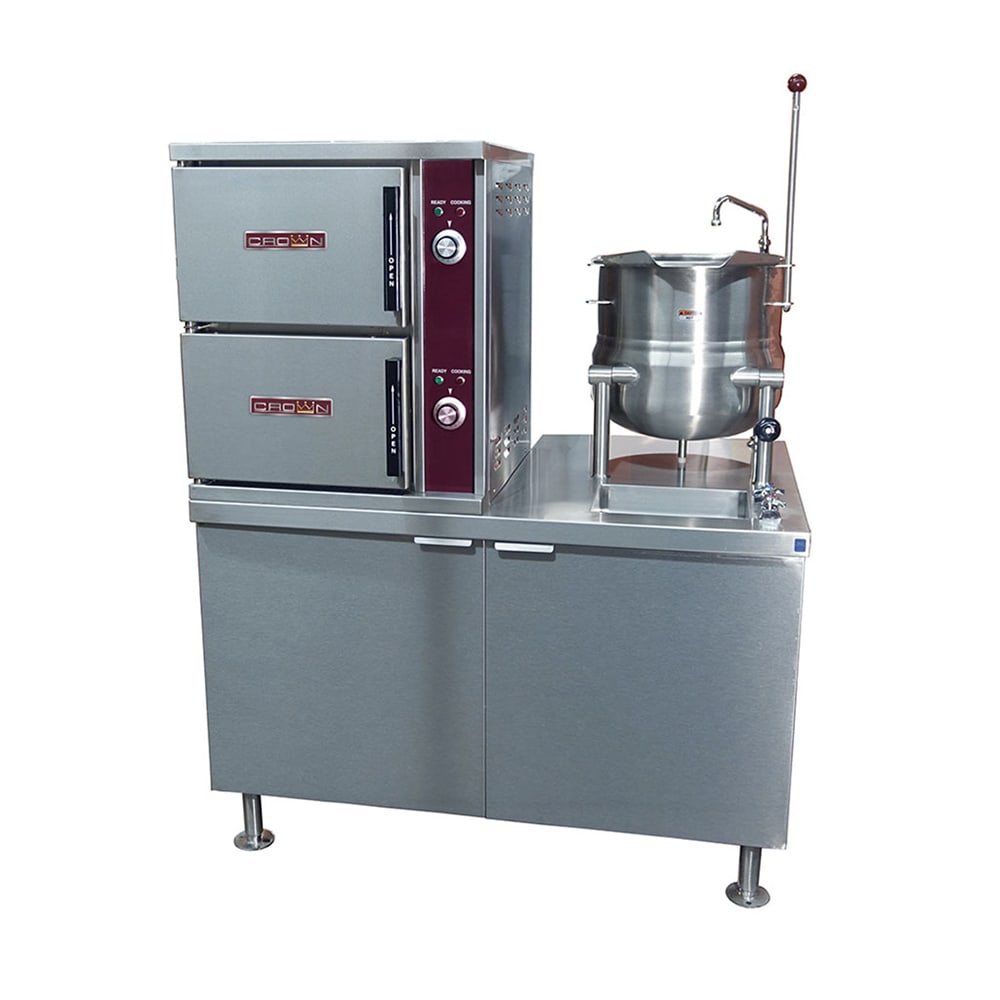

Crown Steam SCX-2-10 (6) Pan / (1) Kettle Convection Steamer - Cabinet, Steam Coil

The Crown Steam SCX-2-10 steamer and kettle sits on top of a full-perimeter, painted angle frame constructed of stainless steel. This base is 48 inches wide, supports a 10-gallon kettle and 6-pan steamer, and houses the steam coil boiler and controls. This boiler is used to produce steam and the user can monitor and adjust its operation using its controls. Automatic blowdown prevents debris from gathering on the boiler and hindering its operation.

The Crown Steam SCX-2-10 steamer and kettle unit provides two different pieces of equipment for steaming: one 10-gallon kettle and one two-compartment steamer. The kettle can be filled using the swing nozzle in the integral sink. The steamer can hold six 12-inch by 20-inch food pans, and the stainless steel pan supports are removable for cleaning. A drip trough made of stainless steel is connected to a drain for collecting condensate when the door is opened. The steamer's controls include an illuminated on/off switch and 60-minute timer with an audible signal. Cook times are controlled independently by a ready pilot light and pilot cooking light.

Product Details

• (1) 10-gal. kettle
• 2 compartments
• Can accommodate (3) 12-in. x 20-in. pans per compartment
• Steamer exterior constructed of rust-resistant, 304 stainless steel
• Cooking compartment made of fully welded, 1-piece stainless steel
• 2 doors with stainless steel inner and outer liners
• Positive lock and seal mechanism with a spring release
• Removable pan supports made of durable stainless steel
• Drip trough made of stainless steel connected to a drain for collecting condensate when the door is opened
• Stainless steel control housing with a removable side access panel
• On/off power switches are illuminated
• Cook times are controlled independently by a ready pilot light, pilot cooking light, and 60-min. timer with an audible signal

Base Details

• 48-in.-wide cabinet base
• Steam coil boiler and controls housed inside
• Boiler controls include safety high-limit pressure control, safety relief valve, automatic water level control, pressure gauge, and water gauge glass
• Automatic blowdown prevents debris from gathering on the boiler
• Faucet valve is deck mounted
• Integral sink with a swing nozzle
• CSD-1 code package
• Full-perimeter, painted angle frame made of stainless steel
• Counter and boiler mountings are reinforced for strength
• 2 doors are hinged with magnetic latches
• (4) 6-in. stainless steel legs with adjustable bullet feet on the front and adjustable flanged feet on the rear

Dimensions & Utilities

• Cooking chamber: 14 in. W x 21 in. D x 10⁵/₈ in. H
• Overall: 48 in. W x 33 in. D x 61¹/₈ in. H
• 120 V/50-60 Hz/1 ph

*Free shipping on Crown Steam SCX-2-10 within the 48 contiguous states.

From The Manufacturer

Convection Steamer/Kettle, steam coil, (2) compartment, (1) 10 gallon kettle, (3) 12" x 20" pan capacity per compartment, 48" cabinet base, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & intregal sink, CSD-1 code package, stainless steel interior & exterior, 6" legs, adjustable bullet feet front, adjustable flanged feet rear, CSA, NSF

*Image may not depict product color, inclusions or accessories.

Crown Steam SCX-2-10 Specifications

Spec Attribute	Spec Value
Manufacturer	Crown Steam
Application	High Volume
Base	Cabinet
Controls	Digital
Depth (in)	33
Heat	Steam Coil
Height (in)	61.1
Hertz	60
Kettle Capacity	10 gal
No. of Compartments	2
No. of Kettles	1
Pan Capacity	3 to 9 Pans
Phase	1
Product	Steamer/Kettle Combos
Product Type	Cooking Equipment
Steam Generator	Boiler-Based
Steamer Type	Convection
Voltage	120
Warranty	1-year Limited Parts & Labor
Water Source	Plumbed
Width (in)	48
Weight	750.00
