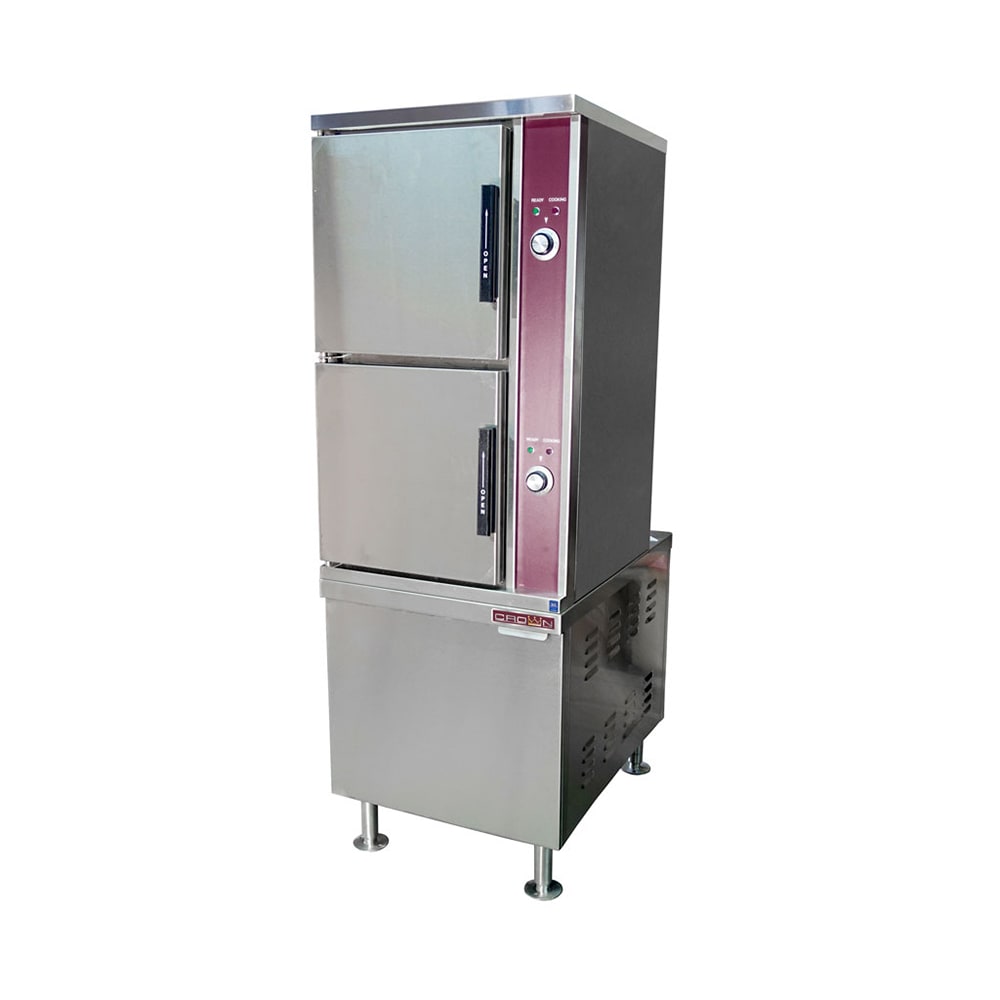

Crown Steam SCX-10-36 (10) Pan Convection Steamer - Cabinet, Steam Coil

The Crown Steam SCX-10-36 convection steamer can steam (10) 12-inch by 20-inch pans of product simultaneously. Each compartment features individual controls that are housed in stainless steel with a removable panel. A 60-minute timer is provided for cooking within a certain time frame. Pilot cooking and pilot ready lights notify the user of the unit's operation. The interior and exterior are constructed of durable stainless steel, and the doors are equipped with stainless steel liners. When the doors are opened, the operation halts, and when the doors are closed, operation resumes.

The Crown Steam SCX-10-36 10-pan convection steamer sits on top of a 36-inch-wide base, which houses the steam coil boiler that operates between 9 and 11 PSI and produces steam. The base has two doors equipped with magnetic latches, ensuring the doors remain closed. A stainless steel drip trough catches condensate and guides it into the connected drain, expediting cleanup.

Product Details

• 2 cooking compartments
• Holds (5) 12-in. x 20-in. pans per compartment
• Interior and exterior are constructed of stainless steel
• Doors feature interior and exterior liners made of stainless steel
• Positive lock and seal mechanism with a spring release on the doors
• Stainless steel, removable pan supports
• Stainless steel drip trough catches condensate
• Drip trough is connected to a drain
• Each compartment has independent controls housed in stainless steel with a removable side panel
• 60-min electric timer with an audible signal that alerts the user when the time is up
• Illuminated on/off switches
• Pilot cooking and pilot ready lights
• Cooking cycle halts when the door is opened and resumes when the door is closed

Base Details

• 36-in.-wide base
• Houses the steam coil boiler, which provides heat
• Boiler operates between 9 and 11 PSI
• Counter and boiler mountings are reinforced for strength
• 2 hinged doors
• Magnetic door latches ensure door remains closed
• 6-in. adjustable, stainless steel feet with 2 bullet feet on the front and 2 flanged feet on the rear
• Blowdown is automatic to limit debris buildup
• Standard split water line

Dimensions & Utilities

• Cooking chamber: 14 in. W x 21 in. D x 17 in. H
• Overall: 36 in. W x 33 in. D x 68¹/₂ in. H
• 120 V/50-60 Hz/1 ph

*Free shipping on Crown Steam SCX-10-36 within the 48 contiguous states.

From The Manufacturer

Convection Steamer, steam coil, (2) compartment, (5) 12" x 20" pan capacity per compartment, 36" cabinet base, automatic blowdown, 60 minute timer per compartment, removable pan supports & drip trough, CSD-1 code package, stainless steel interior & exterior, 6" legs, adjustable bullet feet front, adjustable flanged feet rear, CSA, NSF

*Image may not depict product color, inclusions or accessories.

Crown Steam SCX-10-36 Specifications

Spec Attribute	Spec Value
Manufacturer	Crown Steam
Application	High Volume
Base	Cabinet
Controls	Digital
Depth (in)	33
Heat	Steam Coil
Height (in)	68.5
Hertz	60
No. of Compartments	2
Pan Capacity	10 or More Pans
Phase	1
Product	Steamers
Product Type	Cooking Equipment
Steam Generator	Boiler-Based
Steamer Type	Convection
Voltage	120
Warranty	1-year Limited Parts & Labor
Water Source	Plumbed
Width (in)	36
Weight	625.00
