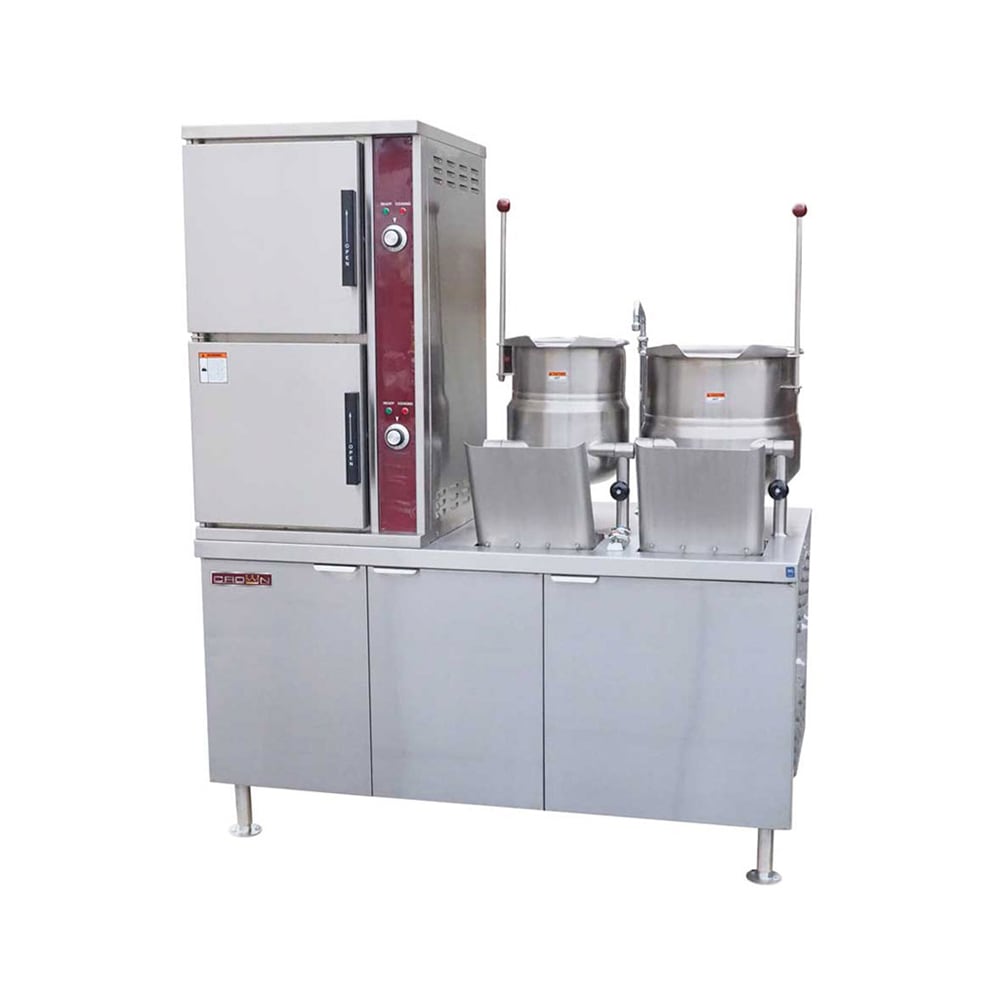

Crown Steam GCX-10-6-6 (10) Pan / (2) Kettle Convection Steamer - Cabinet, Natural Gas

Designed for efficient steaming and boiling, the Crown Steam GCX-10-6-6 convection steamer/kettle integrates two steaming compartments and dual 6-gallon kettles for versatile commercial cooking. Its stainless steel construction enhances durability, while the fully insulated cooking chambers retain heat for energy efficiency. Each compartment accommodates five 12-inch by 20-inch pans, providing ample capacity for high-volume kitchen operations. Mounted on a 60-inch cabinet base, this gas-powered unit features adjustable flanged feet for stability.

Crown Steam’s GCX-10-6-6 convection steamer/kettle is equipped with electronic ignition and automatic blowdown to maintain peak performance. Its deck-mounted faucet valve with a swing nozzle and integral sink simplifies food preparation and cleaning. The doors include a full-perimeter gasket seal, a positive lock-and-seal mechanism, and a stainless steel drip trough to collect condensate. Steam flow halts when the compartment door is opened and resumes upon closure. The gas-fired boiler features automatic water level control, a pressure gauge, and a safety relief valve. This model includes a water treatment system, a split water line, and CSD-1 boiler controls for enhanced safety and efficiency.

Product Details

• (2) 6-gal. kettles
• 2 steaming compartments with a (5) 12-in. x 20-in. pan capacity each
• Stainless steel construction
• Fully insulated cooking chambers
• Electronic ignition
• Automatic blowdown
• Deck-mounted faucet valve with swing nozzle and integral sink
• 60-minute timer per compartment
• Removable pan supports and drain trough
• Steam flow halts when doors are opened
• Doors include full-perimeter gasket seal and condensate drip trough
• ASME code-stamped and National Board registered gas-fired boiler
• Boiler system with automatic water level control and pressure gauge
• Water treatment system included
• Split water line and CSD-1 boiler controls
• Mounted on 6-in. stainless steel legs with adjustable flanged feet

Service Connections

• Gas inlet size: ³⁄₄-in. IPS supply line required
• Gas connection: ³⁄₄-in. IPS
• Steam take-off connection: ³⁄₄-in. IPS (optional)
• Boiler feed water: ¹⁄₂-in. NPT at 25-50 psi
• Condensate cold water: ¹⁄₂-in. NPT at 25-50 psi
• Drain: 2-in. IPS piped to an open floor drain (no solid connection)
• Sink drain: 1 ¹⁄₈-in. O.D. tubing
• Faucet hot water: ³⁄₈-in. O.D. tubing at 25-50 psi
• Faucet cold water: ³⁄₈-in. O.D. tubing at 25-50 psi

Dimensions & Utilities

• 60 in. W x 33 in. D x 72 ¹⁄₂ in. H
• 120 V/60 Hz/1 ph
• Natural gas

*Free shipping on Crown Steam GCX-10-6-6 within the 48 contiguous states.

From The Manufacturer

Convection Steamer/Kettle, gas, (2) compartment, (2) 6 gallon kettles, (5) 12" x 20" pan capacity per compartment, 60" cabinet base, electronic ignition, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & integral sink, CSD-1 code package, includes water filter system, stainless steel interior & exterior, 6" legs, adjustable flanged feet, CSA, NSF

*Image may not depict product color, inclusions or accessories.

Crown Steam GCX-10-6-6 Specifications

Spec Attribute	Spec Value
Manufacturer	Crown Steam
Application	High Volume
Base	Cabinet
Controls	Digital
Depth (in)	33
Gas Type	NG
Heat	Gas
Height (in)	72.5
Kettle Capacity	6 gal
No. of Compartments	2
No. of Kettles	2
Pan Capacity	10 or More Pans
Product	Steamer/Kettle Combos
Product Type	Cooking Equipment
Steam Generator	Boiler-Based
Steamer Type	Convection
Total BTU	250000
Warranty	1-year Limited Parts & Labor
Water Source	Plumbed
Width (in)	60
Weight	1020.00
