Crown Steam ES-40 40 gal. Tilt Skillet - Open Base, Measurement Marks, Strainer, 208v/3ph
QUICK SHIP: Typically ships in 1 - 3 Business Days
$20,600.00 /Each
Web price, call us!
Attention: Order by 10-30-2024 to save before the price increases!
Crown Steam ES-40 Description

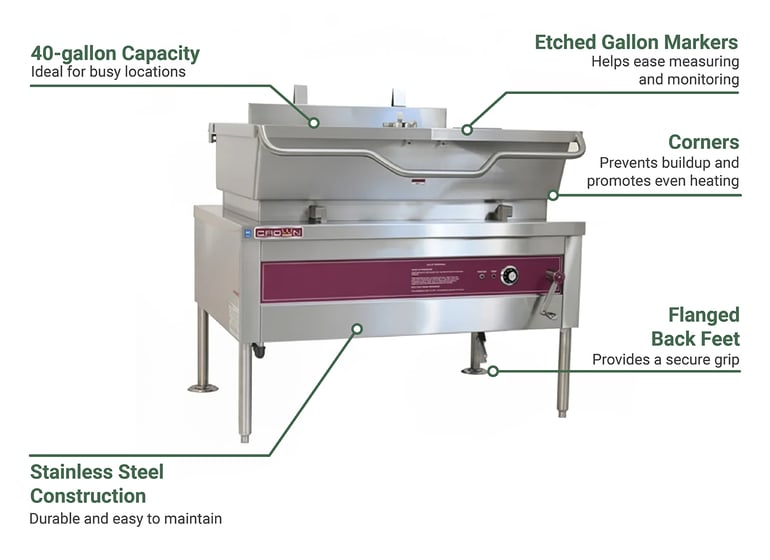

The Crown Steam ES-40 tilt skillet holds 40 gallons of food, is made of durable stainless steel, and designed to serve as an ideal addition to high-volume restaurants and cafeterias. The unit can be used to cook a variety of recipes, from burgers or large batches of stew. The sides are etched with gallon markers to help measure ingredients, while the corners are coved to prevent buildup and promote even heating.
Tilting of the Crown Steam ES-40 skillet is done via a manual crank located on the front of the unit, and to reduce the need for maintenance, the self-contained gear box remains permanently lubricated. The thermostat features an off position, an indicator light, and automatic shutoff when the temperature reaches 536 degrees Fahrenheit. The elements shut off when the skillet is tilted past 5 degrees. This unit heats from 160 to 445 degrees Fahrenheit.
Product Details
- 40-gal. capacity
- Made of stainless steel
- 10-ga. 304 stainless steel pan
- Manual tilt
- Etched gallon markings
- Coved corners
- Spring-assist cover with full-length handle
- No-drip condensate guide
- Vent port
- Removable lip strainer
- Heavy-duty welded frame
- Adjustable front bullet feet and back flanged feet
- Self-contained gear box tilt mechanism
- Thermostat with off position and indicator light
- Temperature range: 160-445 degrees F
- Automatic shut off when tilted past 5 degrees
Dimensions & Utilities
- 48 in. W x 415/8 in. D x 40 in. H (707/8 in. H with top open)
- 86.5 A, 18 kW
- 208 V/60 Hz/3 ph
Product Features
From The Manufacturer
Tilting Skillet, electric, 40 gallon capacity, manual tilt, spring assisted cover, removable lip strainer, etched interior markings, stainless steel construction, open frame, adjustable bullet feet front, adjustable flanged feet rear, 18.0 kW, CSA, NSF, 208v/60/3ph
*Image may not depict product color, inclusions or accessories.
Crown Steam ES-40 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Crown Steam |
| Base | Open |
| Capacity (gallons) | 40 |
| Heat | Electric |
| Hertz | 60 |
| Special Features | Measurement Marks |
| Special Features | Strainer |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor |
| Phase | 3 |
| Product | Tilting Skillets |
| Product Type | Cooking Equipment |
| Weight | 725.00 |
