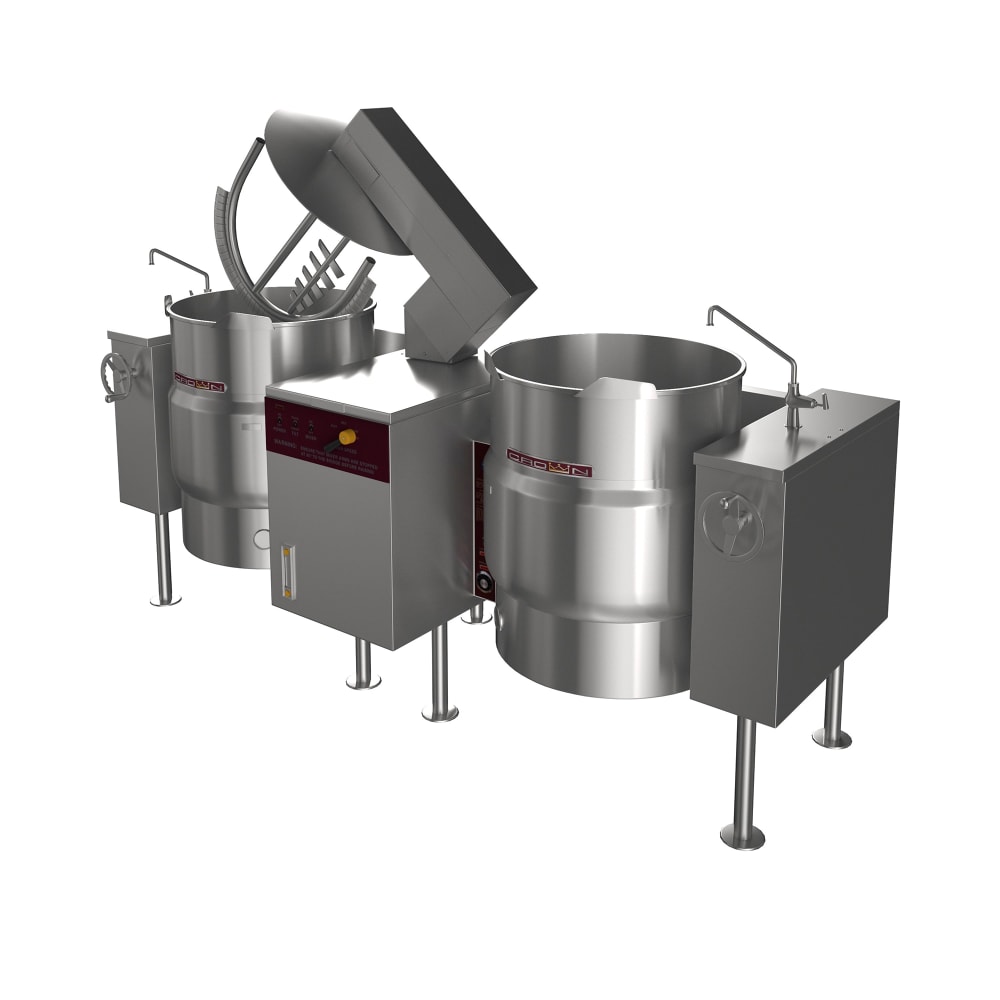

Crown Steam ELTM-80-2 (2) 80 gal. Steam Kettles - Power Tilt, 2/3 Jacket, 208v/3ph

Designed for efficiency in high-capacity cooking, the Crown Steam ELTM-80-2 tilting kettle mixer features a variable-speed mixing system. The two 80-gallon kettles are equipped with a ²/₃ steam jacket, which surrounds the lower portion of each kettle for even heat transfer, while a hemispherical bottom enhances circulation. The unit operates between 140 and 285 degrees Fahrenheit.

The Crown Steam ELTM-80-2 mixer is constructed of stainless steel for durability in commercial kitchens. A sealed tilt mechanism enables the kettles to tilt forward 90 degrees for complete emptying, and the power tilt bridge, made of 10-gauge stainless steel, swings 140 degrees to provide access for cleaning and tilting. Stability is provided by tubular stainless steel legs with four-hole adjustable flanged feet for secure floor placement. Two removable agitators—a primary stainless steel scraper/agitator and a secondary high-speed mixer—detach without tools for easy maintenance.

Product Details

• (2) 80-gal. kettles
• Stainless steel exterior and interior liner
• ²/₃ steam jacket
• Hemispherical bottom
• Variable-speed mixer
• Primary stainless steel scraper/agitator
• Secondary high-speed mixer
• Power tilt bridge swings 140 degrees
• Sealed stainless steel tilt mechanism
• Tilts forward 90 degrees
• Tubular stainless steel legs with flanged feet
• Floor-mounted control console
• Front control panel with power switch, mixer lift switch, and speed control
• Vacuum/pressure gauge
• Safety relief valve
• Low water shutoff system
• Temperature range: 140-285 degrees F
• 147.2 A, 24,000 W
• 208 V/60 Hz/3 ph

*Free shipping on Crown Steam ELTM-80-2 within the 48 contiguous states.

From The Manufacturer

Tilting Kettle/Mixer, electric, (2) 80 gallon capacity each, 2/3 steam jacket, floor mounted control console supports, includes (2) removable agitators, stainless steel construction, legs, flanged feet, CSA, NSF

*Image may not depict product color, inclusions or accessories.

Crown Steam ELTM-80-2 Specifications

Spec Attribute	Spec Value
Manufacturer	Crown Steam
Base	Console
Capacity (gallons)	160
Design	2/3 Jacket
Heat	Electric
Hertz	60
No. of Kettles	2
Phase	3
Tilt Mechanism	Power
Type	Floor Model
Voltage	208
Warranty	1-year Limited Parts & Labor; 10-year Hemisphere
Weight	1850.00
