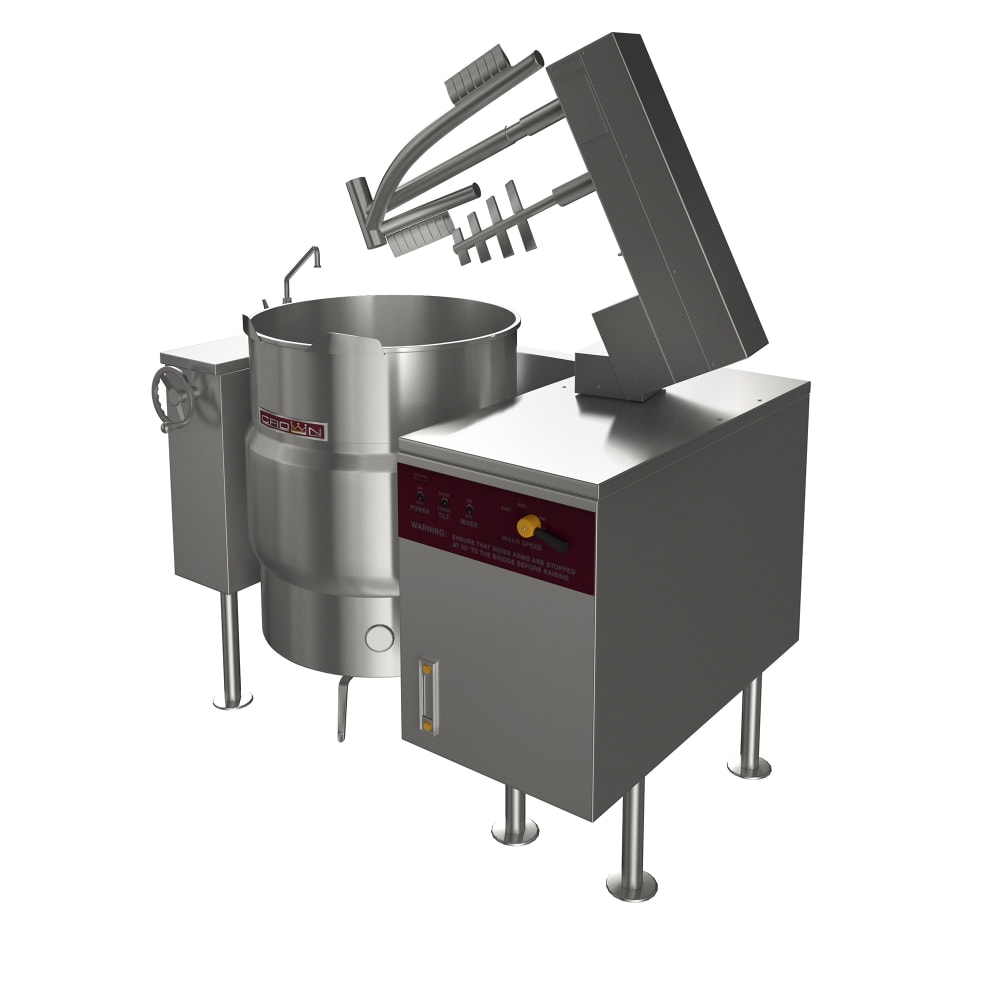

Crown Steam ELTM-60 60 gal. Steam Kettle - Power Tilt, 2/3 Jacket, 208v/3ph

Stabilized by a floor-mounted control console, the Crown Steam ELTM-60 tilting kettle mixer provides a secure and durable solution for commercial kitchens. Its 60-gallon capacity accommodates high-volume cooking, while the ²/₃ steam jacket surrounds the lower portion of the kettle to distribute heat evenly. The hemispherical bottom enhances heat transfer for thorough cooking, and a double-wall interior, factory-sealed with distilled water, maintains precise temperature control. This unit operates within a range of 140 to 285 degrees Fahrenheit.

Designed for efficiency, the Crown Steam ELTM-60 tilting kettle mixer features a variable-speed mixer. Its two removable agitators—a primary stainless steel scraper/agitator and a secondary high-speed mixer—are included, both of which detach without tools for cleaning. A sealed stainless steel tilt mechanism enables the unit to tilt forward 90 degrees for full emptying, while the power tilt bridge, made of 10-gauge stainless steel, swings 140 degrees to provide access for maintenance and tilting. Its tubular stainless steel legs, fitted with four-hole adjustable flanged feet, secure the unit firmly to the floor.

Product Details

• 60-gal. capacity
• Stainless steel exterior and interior liner
• ²/₃ steam jacket
• Hemispherical bottom
• Variable-speed mixer
• Primary stainless steel scraper/agitator
• Secondary high-speed mixer
• Tool-free agitator removal
• Sealed tilt mechanism
• Power tilt bridge swings 140 degrees
• Tilts forward 90 degrees
• Tubular stainless steel legs with flanged feet
• Floor-mounted control console
• Front-mounted control panel with power switch, mixer lift switch, and speed control
• Vacuum/pressure gauge
• Safety relief valve
• Low water shutoff system
• Temperature range: 140-285 degrees F
• 79.6 A, 24,000 W
• 208 V/60 Hz/3 ph

*Free shipping on Crown Steam ELTM-60 within the 48 contiguous states.

From The Manufacturer

Tilting Kettle/Mixer, electric, 60 gallon capacity, 2/3 steam jacket, floor mounted control console supports, includes (2) removable agitators, stainless steel construction, legs, flanged feet, CSA, NSF

*Image may not depict product color, inclusions or accessories.

Crown Steam ELTM-60 Specifications

Spec Attribute	Spec Value
Manufacturer	Crown Steam
Base	Console
Capacity (gallons)	60
Design	2/3 Jacket
Heat	Electric
Hertz	60
No. of Kettles	1
Phase	3
Tilt Mechanism	Power
Type	Floor Model
Voltage	208
Warranty	1-year Limited Parts & Labor; 10-year Hemisphere
Weight	880.00
