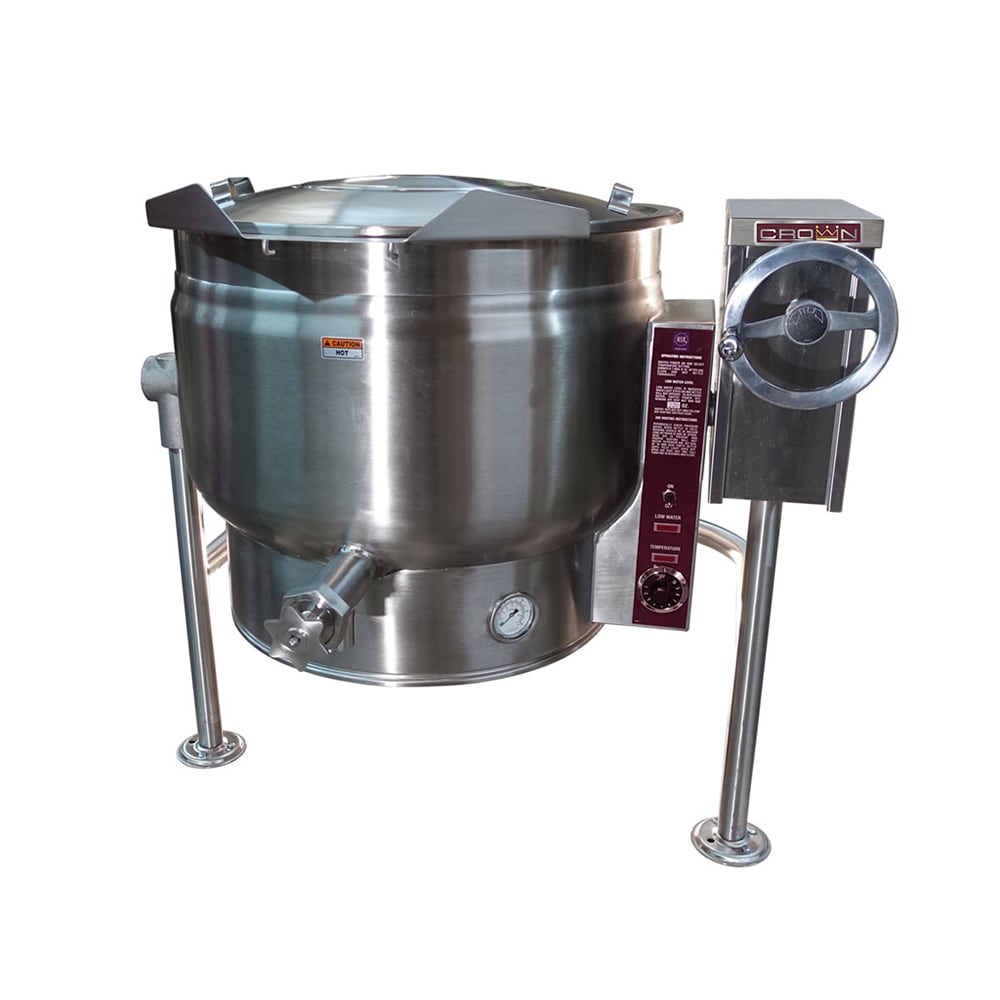

Crown Steam ELT-40F 40 gal. Steam Kettle - Manual Tilt, Full Jacket, 208v/3ph
$46,374.00 /Each
Web price, call us!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Crown Steam ELT-40F Description
The Crown Steam ELT-40F tilting kettle is designed for large-scale cooking applications, offering a 40-gallon capacity with a full-jacketed steam cavity for even heat distribution. Its 316 stainless steel interior liner resists corrosion and withstands high-acid food products, while the hemispherical bottom optimizes heat circulation for consistent cooking. The unit is supported by a stainless steel-clad console and tri-leg base, ensuring durability and stability. Its self-locking crank tilt mechanism enables the kettle to tilt forward a full 90 degrees for complete emptying, while a trunnion and out-bore bearing provide smooth pivoting action.
For user convenience, the Crown Steam ELT-40F tilting kettle includes a faucet bracket and removable heating elements for easy maintenance. The integrally mounted control panel features a power switch, thermostat, pilot light, low water light, vacuum and pressure gauge, safety relief valve, and low water shutoff for reliable operation. The factory-sealed steam jacket is pre-filled with treated water, eliminating the need for refilling. Its welded stainless steel exterior simplifies cleaning and enhances durability.
Product Details
- 40-gal. capacity
- Full-jacketed interior with a 316 stainless steel liner for high-acid food resistance
- Hemispherical kettle bottom enhances heat circulation
- Self-locking crank tilt mechanism with a full 90-degree tilt
- Trunnion and out-bore bearing ensure smooth pivoting
- Thermostatic control system with power switch and safety features
- Factory-sealed steam jacket with treated water
- Removable heating elements for simplified maintenance
- Stainless steel exterior with a number 4 finish
- Faucet bracket included
- Console and tri-leg base with stainless steel-clad construction
- 208 V/60 Hz/3 ph
*Free shipping on Crown Steam ELT-40F within the 48 contiguous states.
From The Manufacturer
Tilting Kettle, electric, 40 gallon capacity, full jacket, thermostatic control, crank tilt with self-locking positive stop, faucet bracket, 316 stainless steel interior liner, stainless steel exterior, console & tri-leg base, 18.0 kW CSA, NSF
*Image may not depict product color, inclusions or accessories.
Crown Steam ELT-40F Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Crown Steam |
| Base | Tri Leg |
| Capacity (gallons) | 40 |
| Design | Full Jacket |
| Heat | Electric |
| Hertz | 60 |
| No. of Kettles | 1 |
| Phase | 3 |
| Tilt Mechanism | Crank |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor; 10-year Hemisphere |
| Weight | 352.00 |
