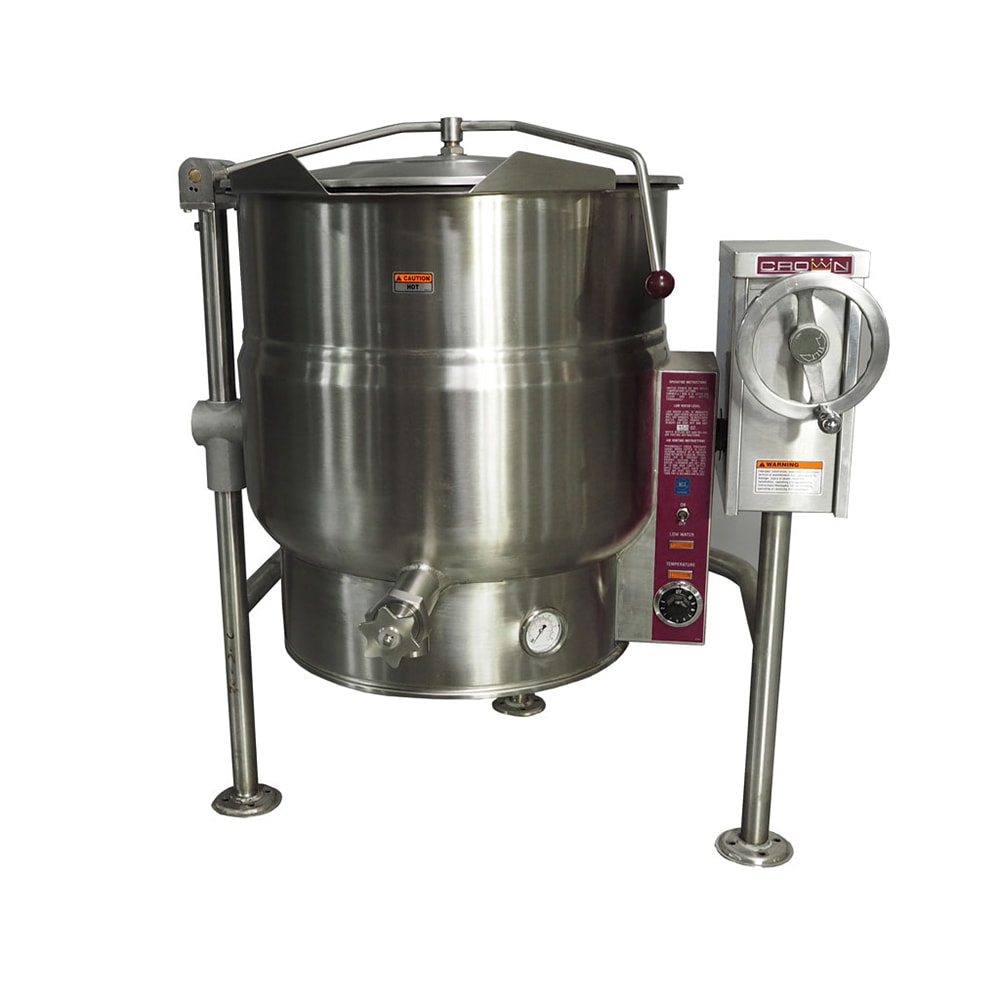

Crown Steam ELT-20 20 gal. Steam Kettle - Manual Tilt, 2/3 Jacket, 208v/3ph

The Crown Steam ELT-20 tilting kettle has a 20-gallon capacity and operates at temperatures between 165 and 285 degrees Fahrenheit. Designed for efficient cooking, its 2²/₃-jacketed interior ensures even heat distribution, while its 316 stainless steel liner provides durability and resistance to high-acid foods. The unit is supported by a console and tri-leg base, constructed with stainless steel-clad components for longevity. Its self-locking crank tilt mechanism allows the kettle to tilt forward a full 90 degrees for complete emptying, while a trunnion and out-bore bearing provide smooth pivoting action.

For user convenience, the Crown Steam ELT-20 tilting kettle features a faucet bracket and removable heating elements for easy maintenance. Its integrally mounted control panel includes a power switch, thermostat, pilot light, low water light, vacuum and pressure gauge, safety relief valve, and low water shutoff for seamless operation. The kettle’s hemispherical bottom enhances heat circulation, while its welded stainless steel exterior ensures easy cleaning. The factory-sealed steam jacket is pre-filled with treated water, eliminating the need for refilling.

Product Details

• 20-gal. capacity
• 2²/₃-jacketed interior with a 316 stainless steel liner for high-acid food resistance
• Hemispherical kettle bottom enhances heat circulation
• Self-locking crank tilt mechanism with a full 90-degree tilt
• Trunnion and out-bore bearing ensure smooth pivoting
• Thermostatic control system with power switch and safety features
• Temperature range: 165-285 degrees F
• Factory-sealed steam jacket with treated water
• Removable heating elements for simplified maintenance
• Stainless steel exterior with a number 4 finish
• Faucet bracket included
• Console and tri-leg base with stainless steel-clad construction
• 208 V/60 Hz/3 ph

*Free shipping on Crown Steam ELT-20 within the 48 contiguous states.

From The Manufacturer

Tilting Kettle, electric, 20 gallon capacity, 2/3 jacket, thermostatic control, crank tilt with self-locking positive stop, faucet bracket, 316 stainless steel interior liner, stainless steel exterior, console & tri-leg base, 12.0 kW, CSA, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Hemisphere

Crown Steam ELT-20 Specifications

Documents

Spec Sheet

Warranty

Manual
