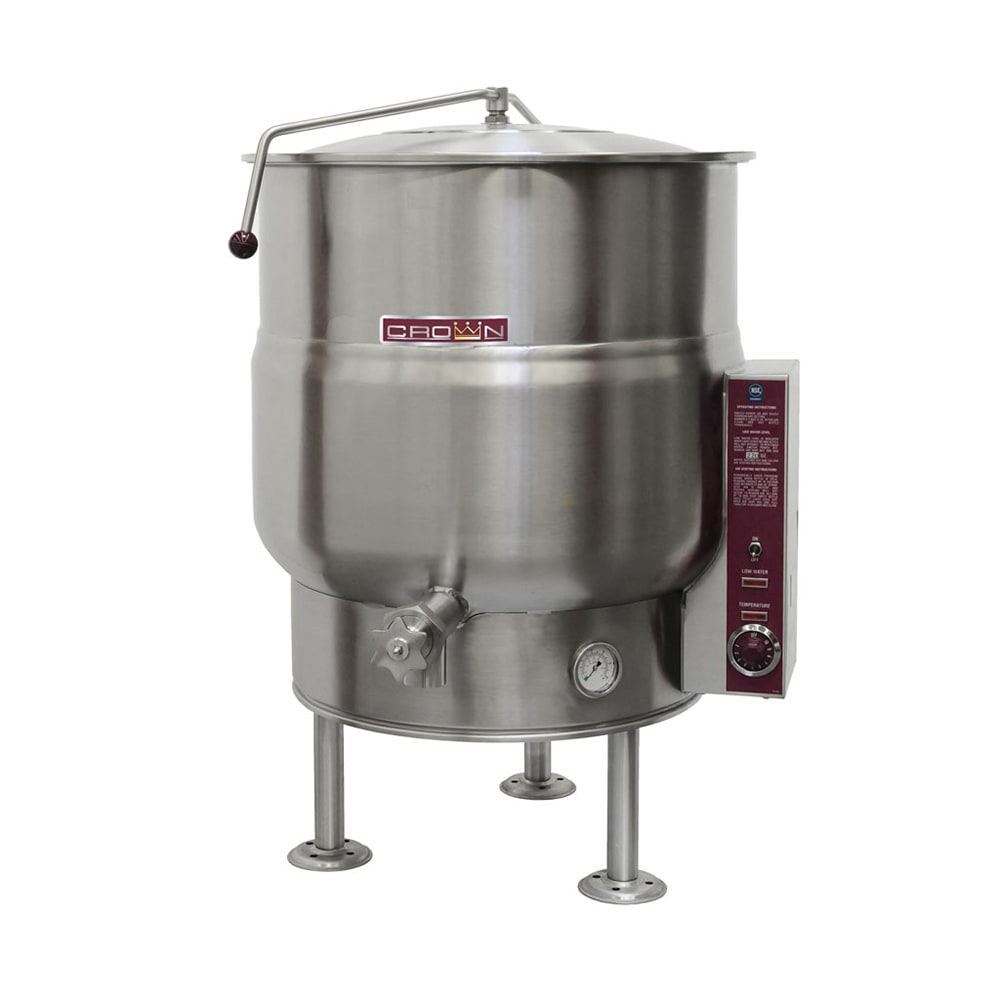

Crown Steam EL-25 25 gal. Steam Kettle - Stationary, 2/3 Jacket, 208v/3ph
$18,179.00 /Each
Web price, call us!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Crown Steam EL-25 Description
Designed for large-scale cooking, the Crown Steam EL-25 stationary kettle has a 25-gallon capacity and operates with a 2/3 steam jacket to maintain uniform heating. The double-wall interior contains factory-sealed distilled water, generating steam that surrounds the lower portion of the kettle for precise temperature control. With a thermostatic control system, operators can adjust heat settings between 165 degrees and 285 degrees Fahrenheit, while a vacuum/pressure gauge provides real-time monitoring.
Constructed of stainless steel, the Crown Steam EL-25 steam kettle includes an interior liner designed for high-acid content cooking. Its tri-leg base features tubular legs with four-hole adjustable feet. The kettle’s hemispherical bottom enhances heat circulation, and a counterbalanced, spring-assisted domed cover helps retain heat. A 2-inch sanitary draw-off valve with a perforated strainer streamlines dispensing. Mounted on the right side, the control panel features a power switch, pilot light, safety relief valve, low water shutoff, and faucet bracket.
Product Details
- 25-gal. capacity
- Stainless steel exterior and interior liner
- 2/3 steam jacket
- Factory-sealed distilled water in double-wall interior
- Hemispherical bottom
- 2-in. sanitary draw-off valve with perforated strainer
- Counterbalanced, spring-assisted domed cover
- Faucet bracket included
- Tri-leg base with tubular legs
- 4-hole adjustable foot
- Thermostatic controls
- Control panel with power switch, pilot light, and safety relief valve
- Vacuum/pressure gauge
- Low water shutoff system
- Operating temperature range: 165 to 285 degrees F
- 33.3 A, 12,000 W
- 208 V/60 Hz/3 ph
*Free shipping on Crown Steam EL-25 within the 48 contiguous states.
From The Manufacturer
Stationary Kettle, electric, 25 gallon capacity, 2/3 jacket, thermostatic control, 2" draw-off, includes: perforated strainer, counter balanced hinged cover & faucet bracket, 316 stainless steel interior liner, stainless steel exterior, tri-leg, 12.0 kW, CSA, NSF
*Image may not depict product color, inclusions or accessories.
Crown Steam EL-25 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Crown Steam |
| Base | Tri Leg |
| Capacity (gallons) | 25 |
| Design | 2/3 Jacket |
| Heat | Electric |
| Hertz | 60 |
| No. of Kettles | 1 |
| Phase | 3 |
| Tilt Mechanism | Stationary |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor; 10-year Hemisphere |
| Weight | 175.00 |
