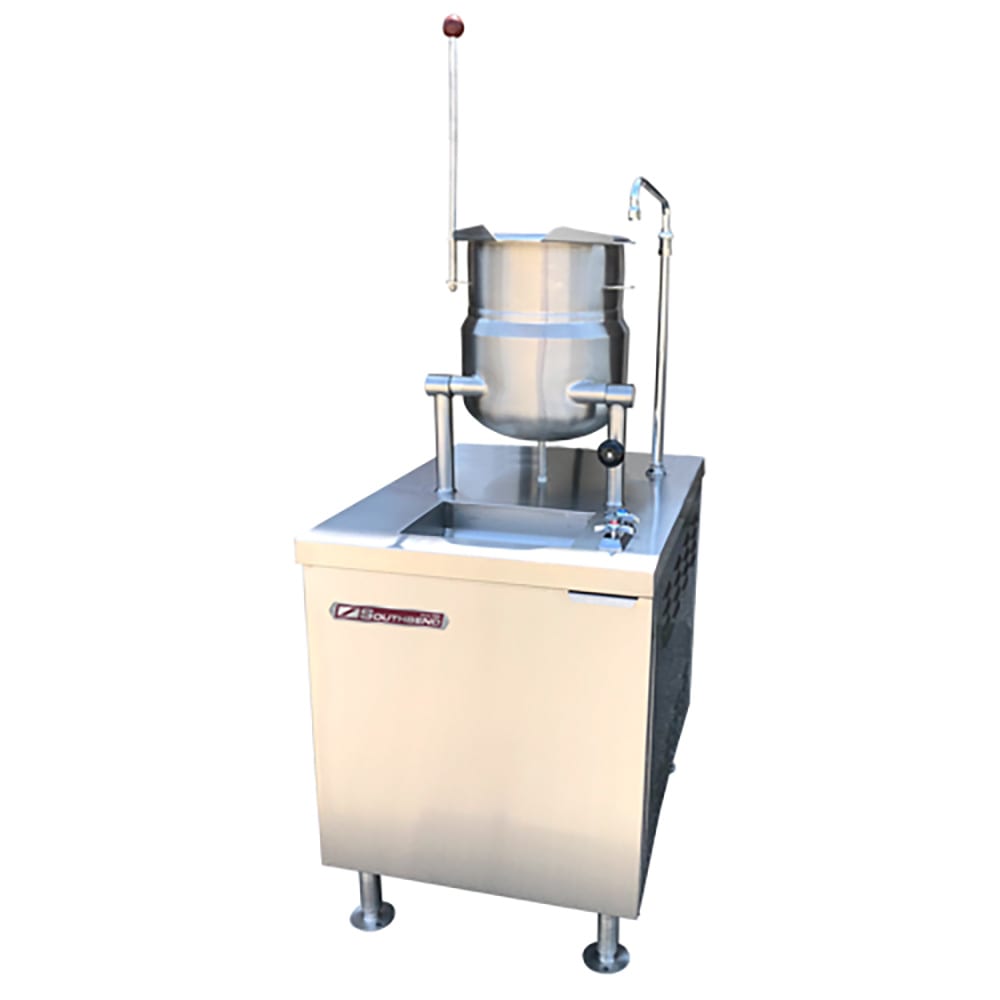

Southbend DMT-10S 10 gal. Steam Kettle - Manual Tilt, 2/3 Jacket, Direct Steam
$16,522.38 /Each
Call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Southbend DMT-10S Description
The Southbend DMT-10S kettle and cabinet assembly is a compact, high-efficiency solution for commercial kitchens, featuring a 10-gallon direct steam tilting kettle mounted on a durable 24-inch cabinet base. Designed for even heat distribution, its 2 2⁄3-jacketed interior features a 316 stainless steel liner, making it resistant to high-acid food products.
The hemispherical kettle bottom enhances heat circulation, ensuring consistent cooking. The unit is equipped with a lever tilt mechanism and a heat-resistant handle, allowing the kettle to tilt forward 90 degrees for complete emptying.
Built for durability and convenience, the Southbend DMT-10S kettle and cabinet assembly includes a reinforced stainless steel counter with stainless steel finish for easy cleaning. The cabinet base features a double pantry hot and cold water fill faucet, a deep stainless steel sink with a splash guard, and a drain for added functionality.
Concealed plumbing within the cabinet includes a steam supply manifold with a safety relief valve and a condensate return manifold with a steam trap. The unit stands on 6-inch stainless steel legs with four adjustable flanged feet for secure floor mounting, while removable side panels and a hinged door with a magnetic latch provide easy access for maintenance.
Product Details
- 10-gal. capacity
- 2 2⁄3-jacketed interior with a 316 stainless steel liner for high-acid food resistance
- Hemispherical kettle bottom enhances heat circulation
- Heat-resistant tilt handle enables forward tilt up to 90 degrees
- Stainless steel cabinet base with reinforced counter
- No. 4 stainless steel exterior finish
- Double pantry hot and cold water fill faucet
- Deep sink with drain and splash guard
- Concealed plumbing with steam supply manifold and safety relief valve
- Condensate return manifold with steam trap
- Removable side panels
- Hinged door with magnetic latch
- 6-in. stainless steel legs with four adjustable flanged feet
- Overall dimensions: 24 in. W x 33 3⁄10 in. D x 62 1⁄10 in. H
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend DMT-10S within the 48 contiguous states.
From The Manufacturer
Kettle/Cabinet Assembly, direct steam, 24" cabinet base, (1) 10 gallon kettle, double pantry fill faucet, 5" deep stainless steel sink, stainless steel interior & exterior finish, adjustable bullet feet, CSA, UL
Southbend DMT-10S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown DMT-10 |
| Base | Quad Leg |
| Capacity (gallons) | 10 |
| Design | 2/3 Jacket |
| Heat | Direct Steam |
| No. of Kettles | 1 |
| Phase | 1 |
| Tilt Mechanism | Lever |
| Type | Floor Model |
| Voltage | 208 |
| Warranty | 1-year Limited Parts & Labor; 10-year Hemisphere |
| Weight | 245.00 |
Important Prop 65 information for California residents.
