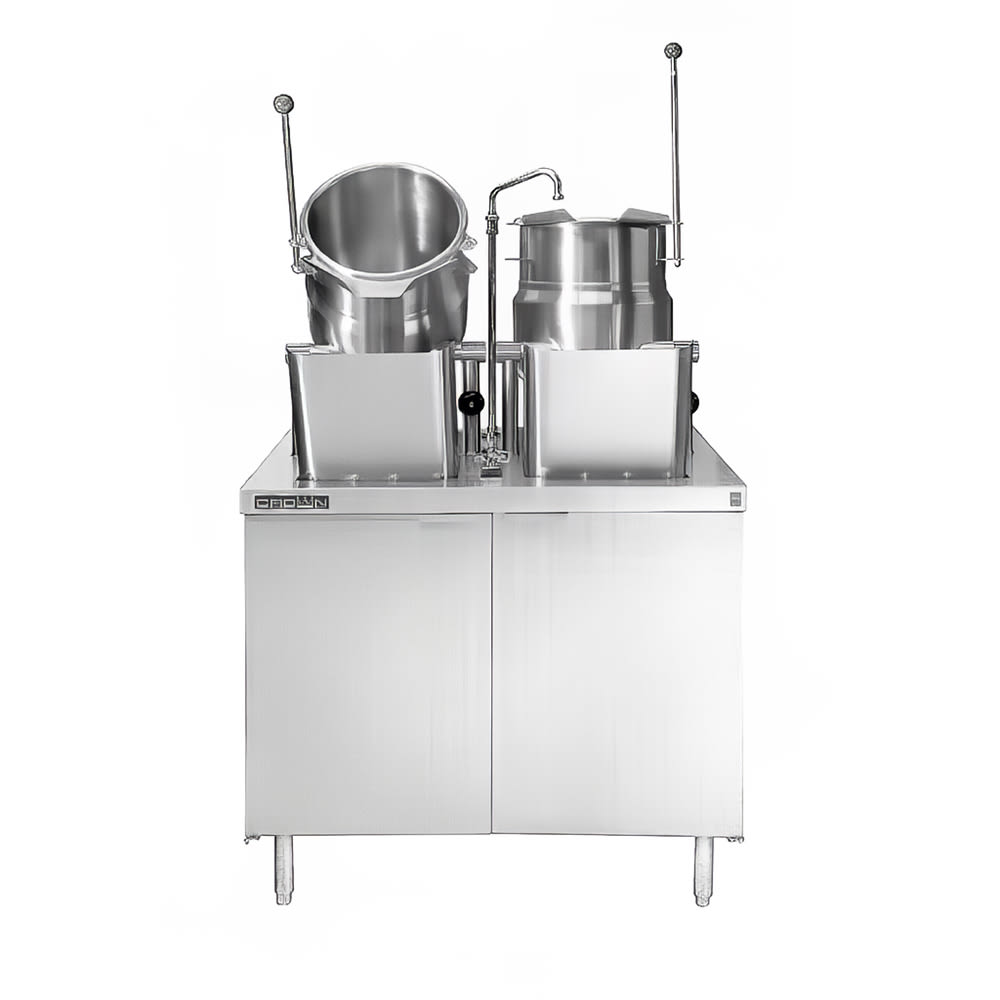

Crown Steam DMT-10-10 (2) 10 gal. Steam Kettles - Manual Tilt, 2/3 Jacket, Direct Steam

The Crown Steam DMT-10-10 kettle and cabinet assembly is designed for efficient commercial kitchen operations, featuring two 10-gallon direct steam tilting kettles mounted on a durable 24-inch cabinet base. The 2²/₃-jacketed interior provides even heat distribution, while the hemispherical bottom enhances heat circulation for consistent cooking. A 316 stainless steel liner resists corrosion and accommodates high-acid content food products. Each kettle is equipped with a lever tilt mechanism, enabling forward tilting past 90 degrees for complete emptying, and a heat-resistant knob enhances user safety.

Constructed with a reinforced counter and a stainless steel finish, the Crown Steam DMT-10-10 kettle and cabinet assembly ensures durability and ease of cleaning. The cabinet houses a steam supply manifold with a safety relief valve, a condensate return manifold, and a steam trap for each kettle. A double pantry hot and cold water fill faucet simplifies food preparation, while the integrated 5-inch-deep stainless steel sink with a splash guard and drain provides added functionality. This unit stands on 6-inch stainless steel legs with four adjustable flanged feet for secure floor mounting, while removable side panels and hinged doors with magnetic latches provide easy access for maintenance.

Product Details

• (2) 10-gal. kettles
• 2²/₃-jacketed interior
• 316 stainless steel liner for high-acid food resistance
• Hemispherical kettle bottom
• 90-degree tilt handle
• Heat-resistant tilt handle for safe operation
• Stainless steel cabinet base with reinforced counter
• No.4 stainless steel exterior finish
• Double pantry hot and cold water fill faucet
• Stainless steel sink with drain and splash guard
• Concealed plumbing with steam supply manifold and safety relief valve
• Condensate return manifold and steam trap for each kettle
• Removable side panels and hinged doors with magnetic latches
• 6-in. stainless steel legs with four adjustable flanged feet
• Overall dimensions: 24 in. W x 33¹/₁₀ in. D x 62¹/₁₀ in. H

*Free shipping on Crown Steam DMT-10-10 within the 48 contiguous states.

From The Manufacturer

Kettle/Cabinet Assembly, direct steam, 24" cabinet base, (2) 10 gallon kettle, double pantry fill faucet, 5" deep stainless steel sink, stainless steel interior & exterior finish, adjustable bullet feet, CSA, UL

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Hemisphere

Crown Steam DMT-10-10 Specifications

Documents

Spec Sheet

Warranty

Manual
