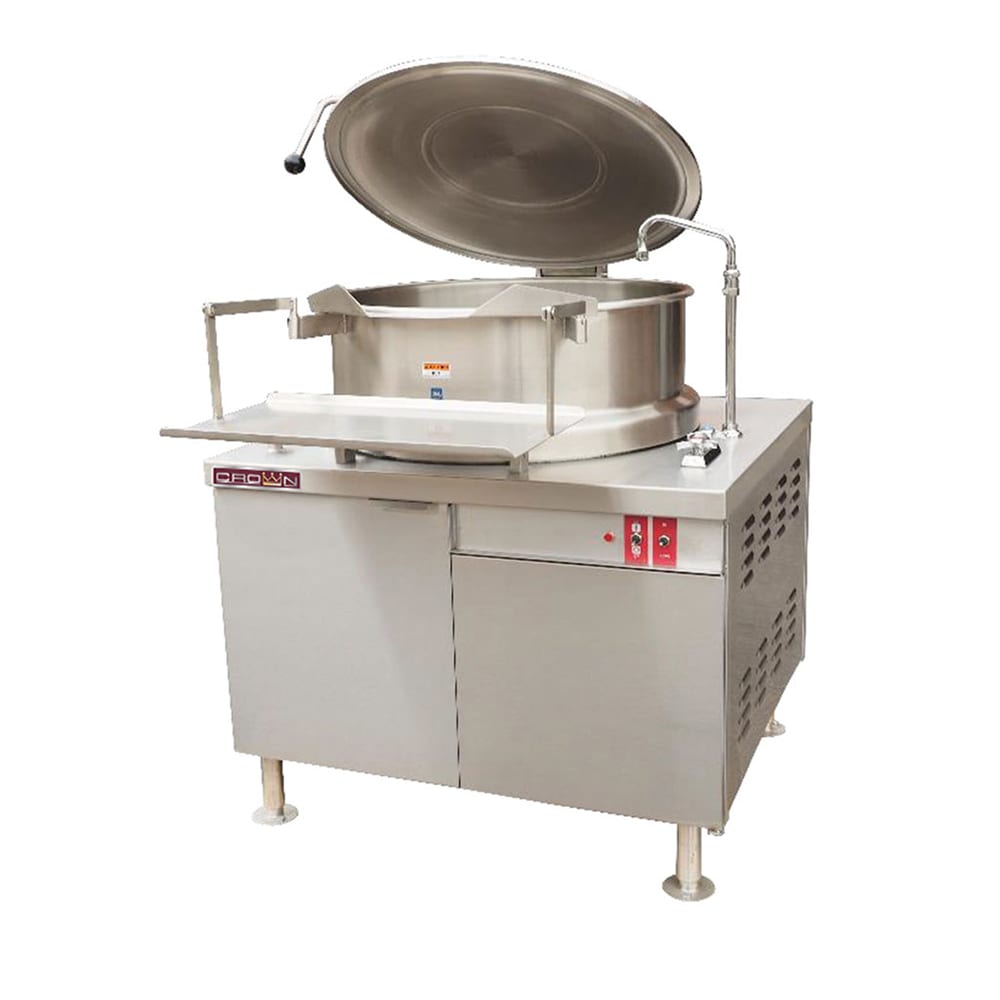

Crown Steam DMS-30 30 gal. Steam Kettle - Stationary, 2/3 Jacket, Direct Steam

The Crown Steam DMS-30 stationary kettle is designed for high-efficiency cooking in commercial kitchens, featuring a 30-gallon capacity and a 2²/₃-jacketed steam cavity for even heat distribution. Constructed with a 316 stainless steel interior liner, it resists high-acid food products and ensures durability. The hemispherical kettle bottom optimizes heat circulation for uniform cooking. Mounted on a stainless steel cabinet base, this floor model includes a perforated strainer and a 2-inch draw-off valve for smooth product dispensing. A hot and cold deck-mounted fill faucet is integrated for convenient water access, while the enclosed cabinet base houses a steam trap and safety relief valve.

For stability, the Crown Steam DMS-30 stationary kettle is supported by 6-inch stainless steel legs, with bullet feet in the front and adjustable flanged feet in the rear for secure floor mounting. A one-piece stainless steel spring-assisted hinged cover ensures safety and heat retention. The modular cabinet design matches other Crown cooking equipment, while removable side panels and magnetic latch doors provide easy access for maintenance. The unit's standard pan support holds one 12-inch by 20-inch by 2¹/₂-inch pan in a horizontal position during use and is removable without tools for convenience.

Product Details

• 30-gal. capacity
• Standard pan support holds (1) 12-in. x 20-in. x 2¹/₂-in. pan
• 2²/₃-jacketed interior with a 316 stainless steel liner for high-acid food resistance
• Hemispherical kettle bottom for optimal heat circulation
• Stainless steel cabinet base with enclosed components
• Perforated strainer with 2-in. sanitary draw-off valve
• Steam trap and safety relief valve included
• Deck-mounted hot and cold water fill faucet
• Spring-assisted hinged stainless steel cover
• 6-in. stainless steel legs with bullet feet in the front and adjustable flanged feet in the rear
• 30 PSI

Dimensions & Utilities

• 36 in. W x 33 in. D x 41¹/₂ in. H
• 10 A
• 115 V/60 Hz/1 ph

*Free shipping on Crown Steam DMS-30 within the 48 contiguous states.

From The Manufacturer

Stationary Kettle, direct steam, 30 gallon capacity, 2/3 jacket, 2" draw-off, perforated strainer, hot & cold faucet, pan support, 316 stainless steel interior liner, stainless steel cabinet base & hinged cover, 6" legs, bullet feet front, flanged feet rear, 30 psi, CSA, NSF

*Image may not depict product color, inclusions or accessories.

1-year Limited Parts & Labor; 10-year Hemisphere

Crown Steam DMS-30 Specifications
