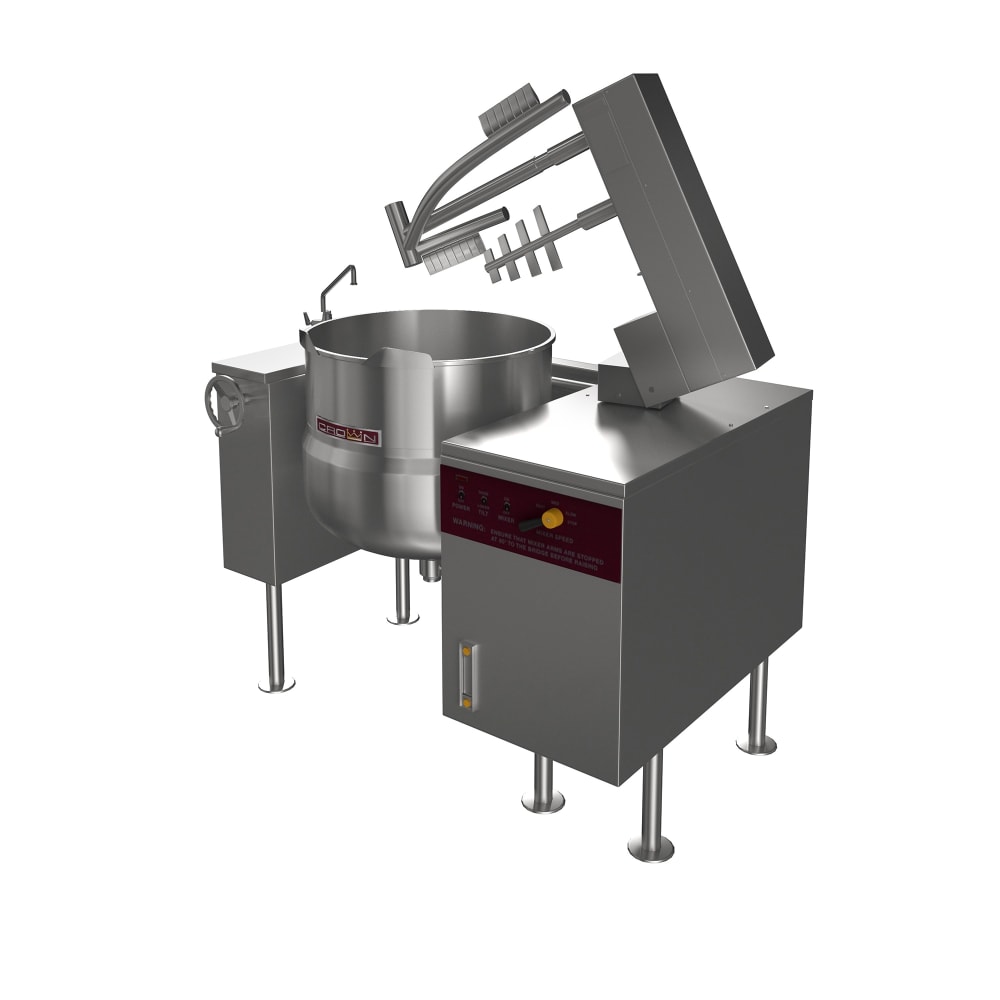

Crown Steam DLTM-40 40 gal. Steam Kettle - Power Tilt, 2/3 Jacket, Direct Steam

Designed with a variable-speed mixer powered by an electric motor, the Crown Steam DLTM-40 direct steam tilting kettle/mixer provides efficient blending for high-volume food preparation. Its power-tilt bridge swings 140 degrees out of the way, allowing full access for tilting and cleaning. Two heavy-duty hydraulic motors drive the included agitators, which consist of a primary stainless steel scraper/agitator and a secondary high-speed mixer—both removable without tools for easy cleaning.

The Crown Steam DLTM-40 steam kettle features a 40-gallon capacity and a ²⁄₃-jacketed construction, providing even heat distribution. Its hemispherical bottom maximizes heat transfer, while a sealed stainless steel tilt mechanism enables the kettle to tilt forward 90 degrees for complete emptying. Supported by tubular legs with four-hole adjustable flanged feet, this unit remains secure in demanding commercial environments. The floor-mounted control console houses the main power switch, mixer lift switch, and variable speed control for precision operation.

Product Details

• 40-gal. capacity
• Stainless steel construction
• ²⁄₃-jacketed tilting design
• Hemispherical bottom for heat transfer
• Sealed tilt mechanism with 90-degree forward tilting
• Self-locking tilt mechanism for positive stop action
• Power-tilt bridge swings 140 degrees for kettle access
• Variable-speed mixer powered by an electric motor
• 2 hydraulic motors drive the agitators
• 2 removable agitators: primary scraper/agitator and secondary high-speed mixer
• Tubular legs with 4-hole adjustable flanged feet
• Floor-mounted console with main power switch, mixer lift switch, and variable speed control
• Operates with direct steam

Dimensions & Utilities

• 62 in. W x 56 in. D x 75⁵/₈ in. H
• 14 A, 5 HP
• 208 V/60 Hz/3 ph

*Free shipping on Crown Steam DLTM-40 within the 48 contiguous states.

From The Manufacturer

Tilting Kettle/Mixer, direct steam, 40 gallon capacity, 2/3 jacket, floor mounted control console supports, includes (2) agitators, stainless steel construction, legs, flanged feet, CSA, NSF

*Image may not depict product color, inclusions or accessories.

Crown Steam DLTM-40 Specifications

Spec Attribute	Spec Value
Manufacturer	Crown Steam
Base	Console
Capacity (gallons)	40
Design	2/3 Jacket
Heat	Direct Steam
No. of Kettles	1
Tilt Mechanism	Power
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Hemisphere
Weight	700.00
