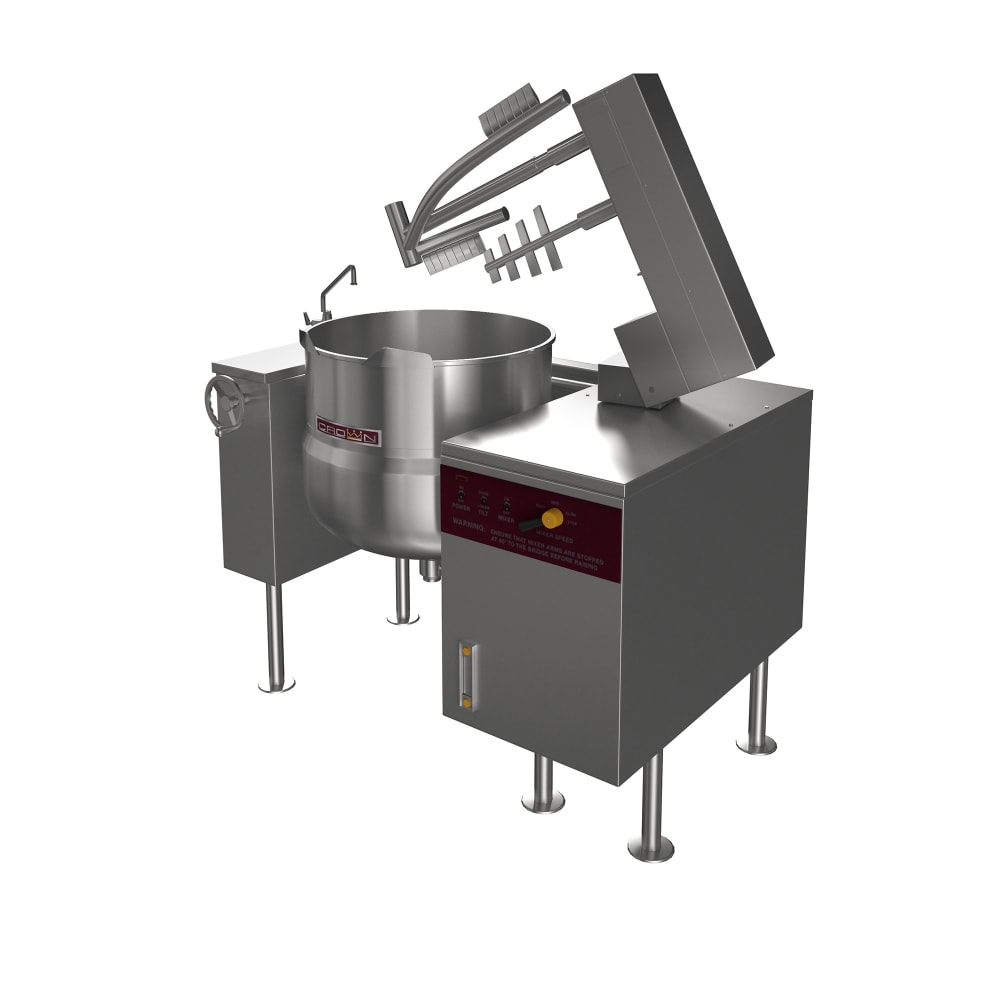

Crown Steam DLTM-100 100 gal. Steam Kettle - Power Tilt, 2/3 Jacket, Direct Steam

Equipped with a variable-speed mixer powered by an electric motor, the Crown Steam DLTM-100 direct steam tilting kettle/mixer ensures efficient blending and cooking for large-scale food preparation. The unit includes two removable agitators—a primary stainless steel scraper/agitator and a secondary high-speed mixer—both of which can be detached without tools for simple cleaning. A power-tilt bridge swings 140 degrees out of the way to allow kettle tilting and cleaning access.

The Crown Steam DLTM-100 features a 100-gallon capacity and a ²⁄₃-jacketed construction, ensuring even heat distribution. Its hemispherical bottom maximizes heat transfer, while a sealed stainless steel tilt mechanism enables the kettle to tilt forward 90 degrees for complete emptying. Supported by tubular legs with adjustable flanged feet, the unit remains stable in demanding commercial environments. The control console is mounted on floor supports and houses the main power switch, mixer lift switch, and variable speed control.

Product Details

• 100-gal. capacity
• Stainless steel construction
• ²⁄₃-jacketed tilting design
• Hemispherical bottom for maximum heat transfer
• Sealed tilt mechanism allows 90-degree forward tilting
• Self-locking tilt mechanism for positive stop action
• Power-tilt bridge swings 140 degrees for kettle access
• Variable-speed mixer
• 2 removable agitators:
• primary scraper/agitator
• secondary high-speed mixer
• Tubular legs with 4-hole adjustable flanged feet
• Floor-mounted control console with main power switch, mixer lift switch, and variable speed control
• Operates with direct steam

Dimensions & Utilities

• 70 in. W x 63 in. D x 85 in. H
• 14 A, 5 HP
• 208 V/60 Hz/3 ph

*Free shipping on Crown Steam DLTM-100 within the 48 contiguous states.

From The Manufacturer

Tilting Kettle/Mixer, direct steam, 100 gallon capacity, 2/3 jacket, floor mounted control console supports, includes (2) agitators, stainless steel construction, legs, flanged feet, CSA, NSF

*Image may not depict product color, inclusions or accessories.

Crown Steam DLTM-100 Specifications

Spec Attribute	Spec Value
Manufacturer	Crown Steam
Base	Console
Capacity (gallons)	100
Design	2/3 Jacket
Heat	Direct Steam
No. of Kettles	1
Tilt Mechanism	Power
Type	Floor Model
Warranty	1-year Limited Parts & Labor; 10-year Hemisphere
Weight	900.00
