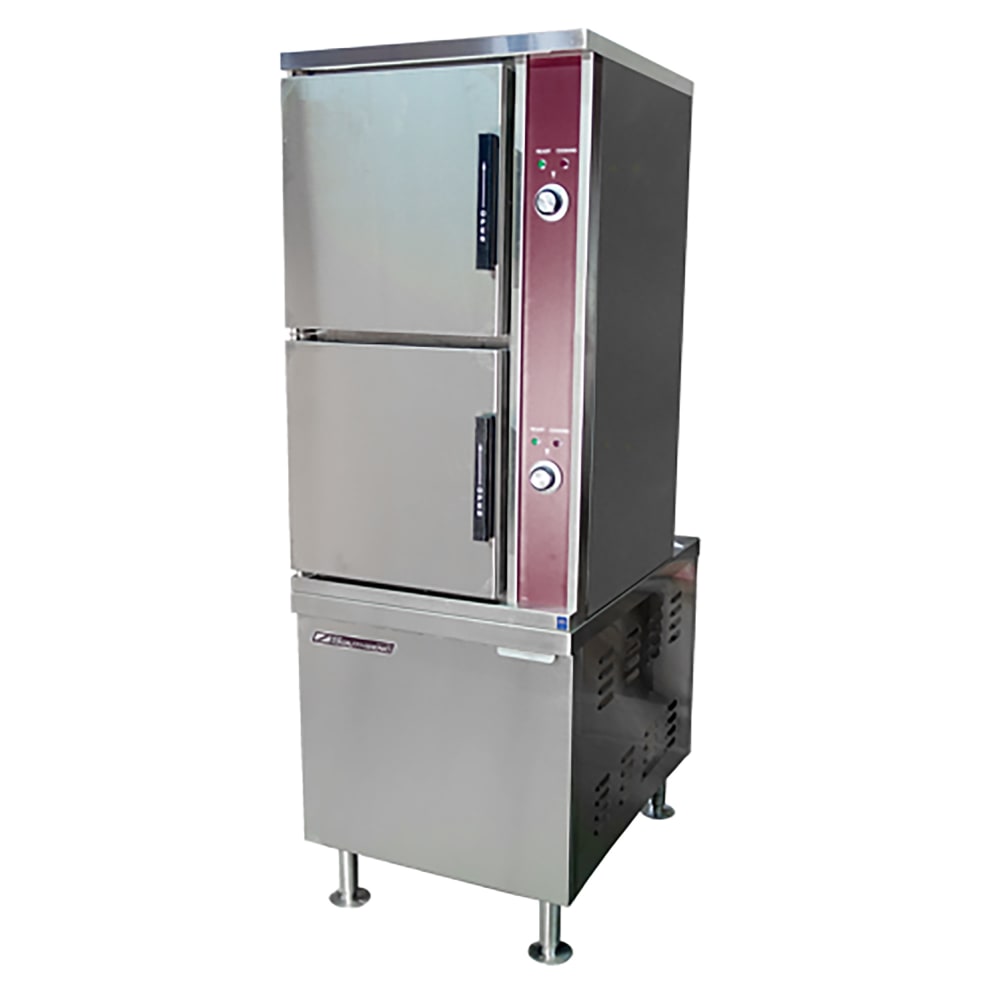

Southbend DCX-10S (10) Pan Convection Steamer - Cabinet, Direct Steam
$24,562.72 /Each
Call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Southbend DCX-10S Description
The Southbend DCX-10S convection steamer is designed for high-volume commercial kitchens, offering two independent compartments with a total capacity of ten 12-inch by 20-inch pans. Operating on direct steam, this steamer is built with a durable 24-inch cabinet base, providing stability and convenient storage. Each compartment features a 60-minute timer with a cook and ready pilot light, ensuring precise cooking control. The unit is equipped with automatic blowdown functionality, which helps maintain optimal performance and reduces maintenance needs.
Constructed of stainless steel inside and out, the Southbend DCX-10S steamer features removable pan supports and a stainless steel drip trough that collects condensate when the doors are opened. The insulated, welded cooking chamber ensures even steam distribution for consistent cooking results. Designed for ease of use, the control housing includes a full-access removable side panel, and the unit is mounted on 6-inch legs with adjustable feet for secure placement.
- 2 independent steam compartments
- Direct steam operation
- Holds up to (10) 12-in. x 20-in. pans
- Automatic blowdown system
- 60-minute timer per compartment
- Removable stainless steel pan supports
- Drip trough to collect condensate
- Stainless steel interior and exterior construction
- 6-in. legs with feet
- 24 in. W x 33 in. D x 68 1⁄2 in. H
- 120 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend DCX-10S within the 48 contiguous states.
From The Manufacturer
Convection Steamer, direct steam, (2) compartment, (10) 12" x 20" pan capacity, 24" cabinet base, automatic blowdown, 60 minute timer per compartment, removable pan supports & drip trough, CSD-1 code package, stainless steel interior & exterior, 6" legs, adjustable bullet feet front, adjustable flanged feet rear, CSA, NSF
Southbend DCX-10S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown DCX-10-24 |
| Application | High Volume |
| Base | Cabinet |
| Controls | Manual |
| Depth (in) | 33 |
| Heat | Direct Steam |
| Height (in) | 68.5 |
| Hertz | 60 |
| No. of Compartments | 2 |
| Pan Capacity | 10 or More Pans |
| Pan Type | Full Size Steam Pans |
| Phase | 1 |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Steam Generator | External Source |
| Steamer Type | Convection |
| Voltage | 120 |
| Warranty | 1-year Limited Parts & Labor |
| Water Source | Plumbed |
| Width (in) | 24 |
| Weight | 550.00 |
