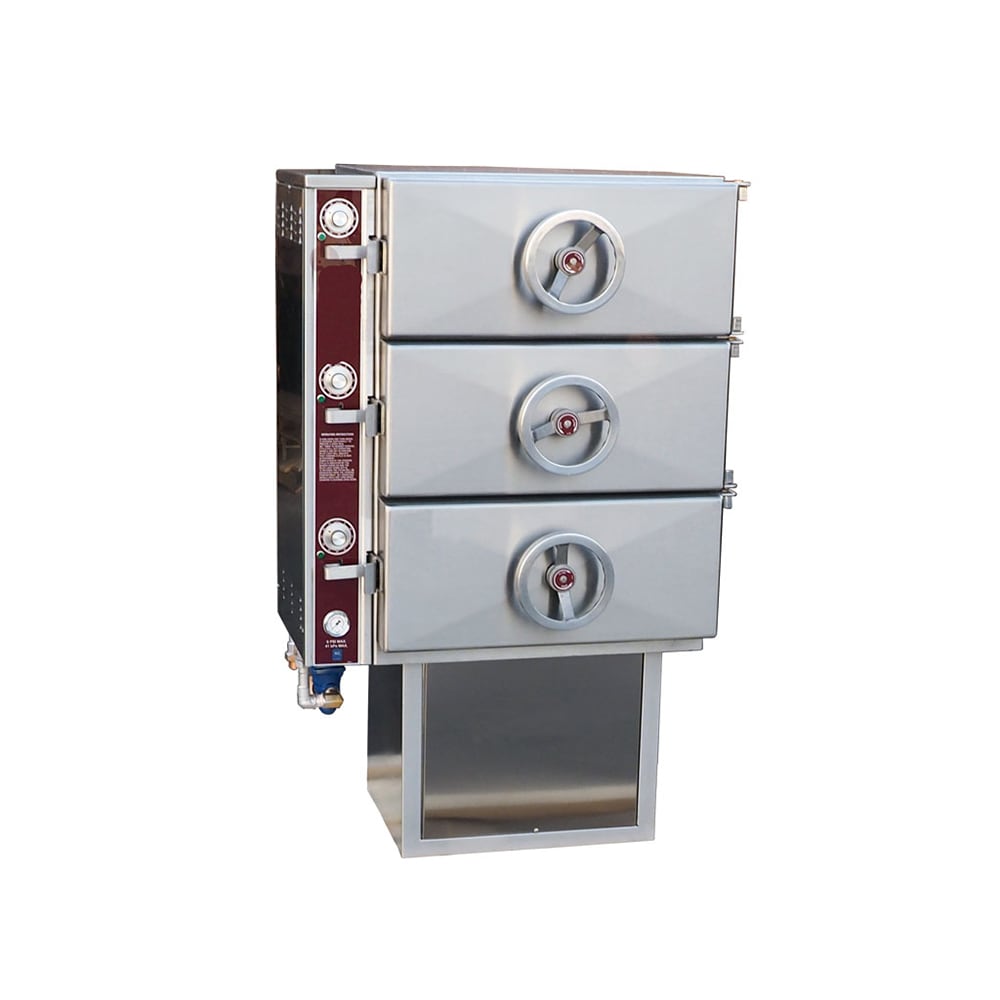

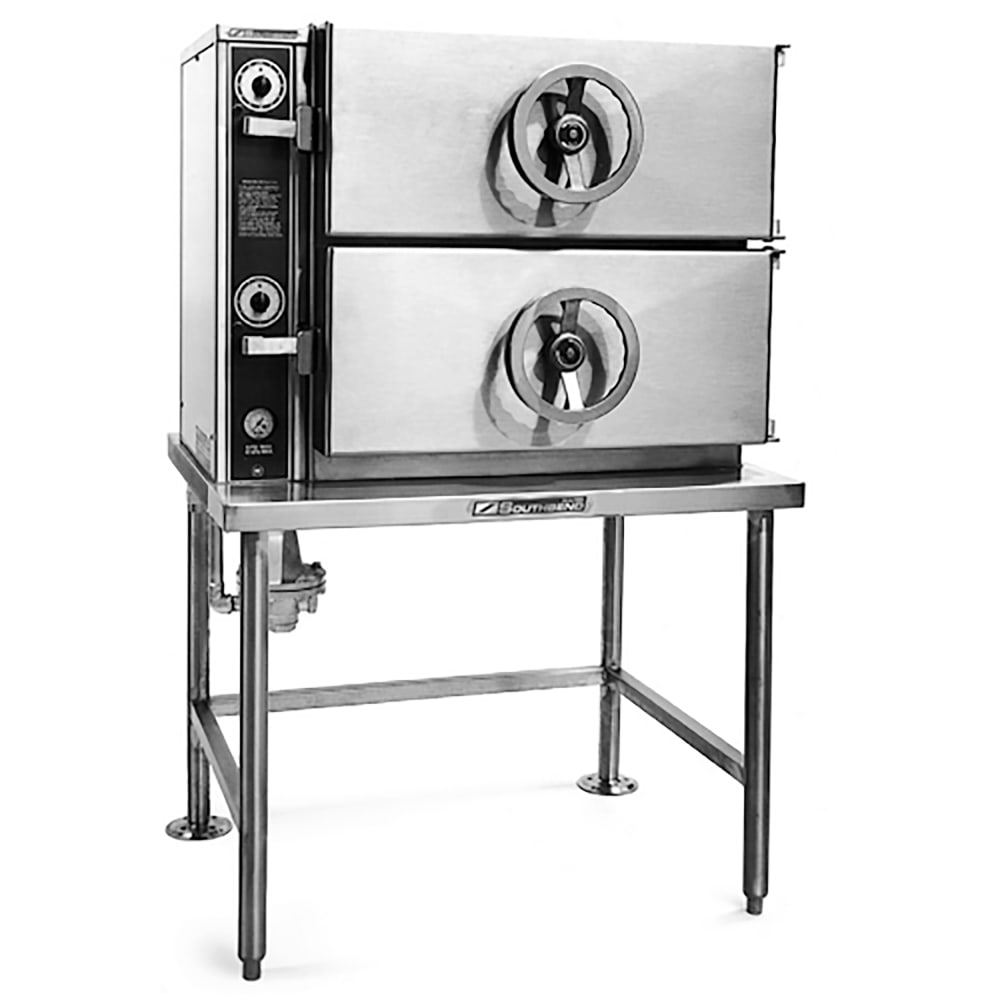

Southbend DCL-3S Direct Steam Pressure Steamer w/ (12) Full Size Pan Capacity, 115v/1ph
$29,073.96 /Each
Call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Southbend DCL-3S Description
The Southbend DCL-3S pressure steamer is built for high-volume cooking operations, providing three spacious compartments for steaming a variety of foods. Constructed of durable stainless steel, this direct steam unit ensures lasting performance in demanding kitchen environments.
The doors feature a removable aluminum liner with a full perimeter gasket seal, a stainless steel outer liner, and a wheel and screw closing mechanism for secure operation. With a clear opening of 10 1⁄4 inches by 26 3⁄8 inches, each compartment is designed for efficient loading and unloading of pans.
Equipped with manual mechanical timer controls, the Southbend DCL-3S steamer enables independent timing for each compartment, ensuring precision cooking. The unit automatically shuts down at the end of each cycle, draining condensate and releasing steam while sounding a continuous signal until turned off manually.
With a maximum pressure of 6 PSI, this steamer efficiently handles large batch cooking needs while maintaining food quality and consistency.
Product Details
- Direct steam pressure-type steamer
- 3 compartments with independent manual timer controls
- Automatic shut-down at the end of each cycle
- Constructed of durable stainless steel for longevity
- Doors include removable aluminum liners with full perimeter gasket seal
- Designed for high-volume food steaming
- Operates at a maximum pressure of 6 PSI
- Universal pan supports included
- Overall dimensions: 36 in. W x 28 1⁄2 in. D x 58 1⁄2 in. H
- 115 V/60 Hz/1 ph
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend DCL-3S within the 48 contiguous states.
From The Manufacturer
Steamer, direct steam, pressure-type, (3) compartments, 36"W, automatic timer, manual controls per compartment with visible & audible signals, automatic shut-down, CSD-1 code package, 304 stainless steel construction, stainless steel tubular frame base, (4) legs with adjustable flanged feet, 115v/60/1ph hardwire for controls, cCSAus, NSF
Southbend DCL-3S Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown DCL-3 |
| Amps | 12 |
| Application | High Volume |
| Base | Legs |
| Controls | Manual |
| Depth (in) | 28.5 |
| Heat | Direct Steam |
| Height (in) | 58.5 |
| Hertz | 60 |
| No. of Compartments | 3 |
| Pan Capacity | 12 |
| Pan Type | Full Size Steam Pans |
| Phase | 1 |
| Product | Steamers |
| Product Type | Cooking Equipment |
| Special Features | Automatic Timer |
| Special Features | Flanged Feet |
| Steam Generator | External Source |
| Steamer Type | Pressure |
| Style | Floor |
| Voltage | 115 |
| Warranty | 1-year Parts & Labor |
| Water Source | Plumbed |
| Width (in) | 36 |
| Weight | 825.00 |
