Southbend KDCT-20 20 gal. Steam Kettle - Manual Tilt, 2/3 Jacket, Direct Steam
$10,791.45 /Each
Call for details!
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
Southbend KDCT-20 Description

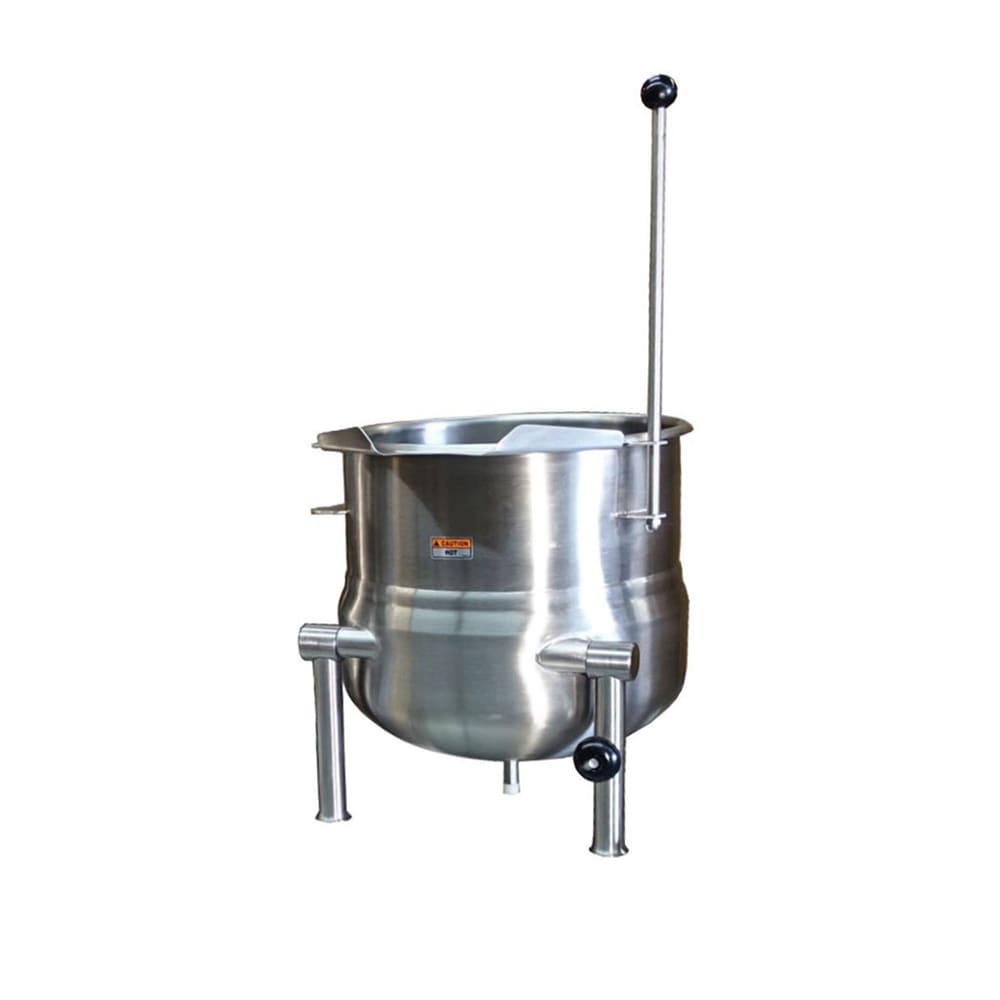

The Southbend KDCT-20 direct steam kettle has a durable stainless steel construction and 20-gallon capacity. It has a steam jacket around the lower two-thirds of the kettle's body, though because this unit uses direct steam, an external source is needed to fill the jacket. For even heat distribution, the bottom of the kettle has a hemispheric design, and the 316 stainless steel liner is made to handle acidic product without rusting. Tubular stainless steel legs conceal the steam supply and condensate return pipes. To ensure safe steam levels, a steam control valve is fitted on the right leg.
Tilt mechanism bearings enable the user to tilt the kettle past 90 degrees, using an operating handle that can be mounted on the left or right. This full tilt, along with the rounded bottom, keeps the kettle easy to wipe clean, and to save floor space, this Southbend KDCT-20 direct steam kettle sits on a countertop.
- 20-gal. capacity
- Durable stainless steel construction
- Two-thirds jacketed around kettle's lower body
- 316 stainless steel liner withstands acidic product
- Kettle bottom features a hemispheric design for even heating
- Tubular stainless steel legs conceal steam supply and condensate return pipes
- Right leg is fitted with a steam control valve
- 1 leg equipped with a nylon foot supports the kettle when upright
- Tilt mechanism bearings enable users to tilt unit forward past 90 degrees
- Removable operating handle is equipped with a heat-proof knob
- Handle can be mounted on the right or left
- Operates at a maximum 50-PSI steam pressure
- 26 in. W x 24.12 in. D x 26.5 in. H (42.38-in. H including handle)
- Direct steam
- 1⁄2-in. IPS steam supply
*Image may not depict product color, inclusions or accessories.
*Free shipping on Southbend KDCT-20 within the 48 contiguous states.
From The Manufacturer
Tilting Kettle, countertop, direct steam, 20 gallon capacity, 2/3 steam jacket, open support arms, steam control valve, stainless steel construction, CSA, NSF
Southbend KDCT-20 Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Southbend |
| Also Known As | Crown DC-20 |
| Base | Tri Leg |
| Capacity (gallons) | 20 |
| Design | 2/3 Jacket |
| Heat | Direct Steam |
| No. of Kettles | 1 |
| Tilt Mechanism | Lever |
| Type | Countertop |
| Warranty | 1-year Limited Parts & Labor |
| Weight | 95.00 |
