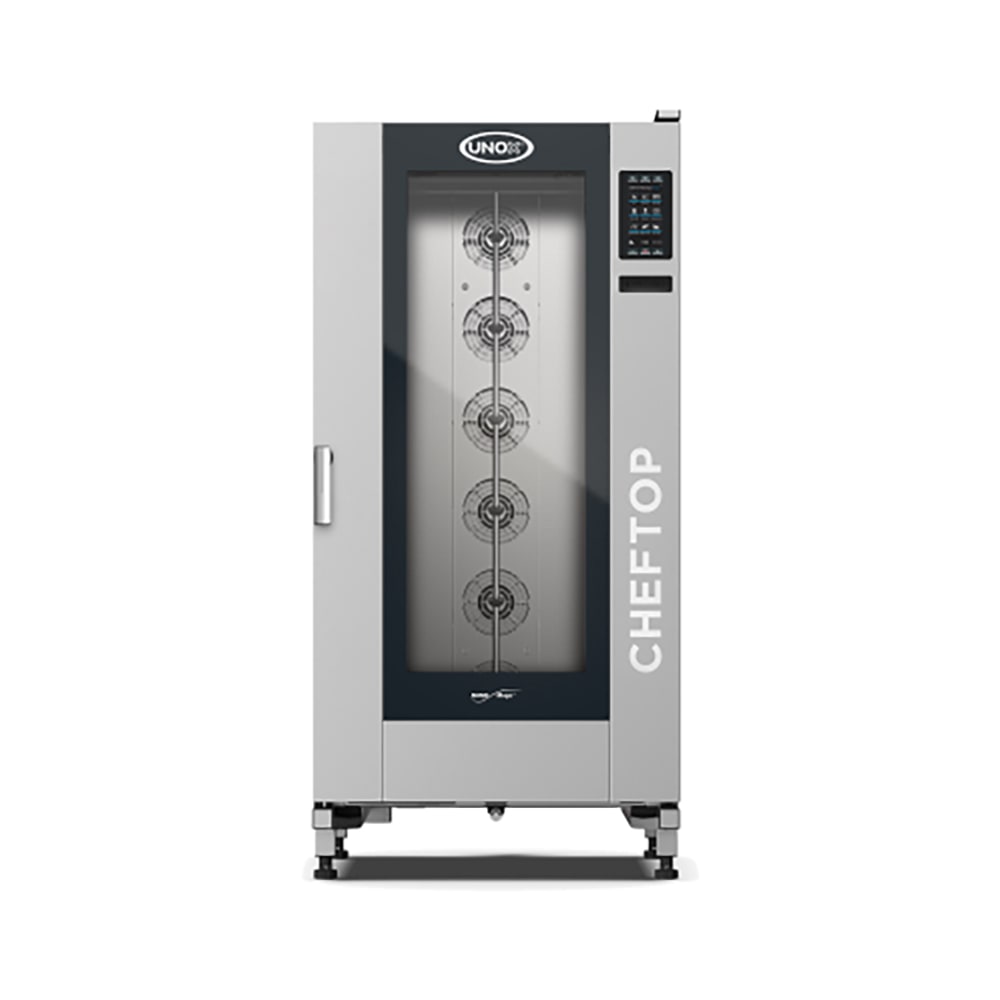

Unox XAVL-2021-GPLS (GAS 110V) CHEFTOP MIND.Maps™ Full Size Roll In Combi Oven - Boiler Based, Convertible

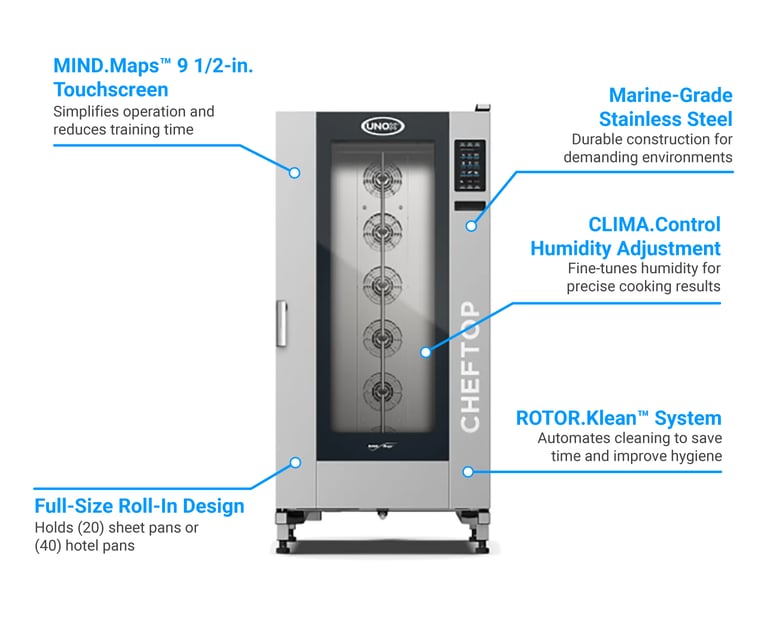

The Unox XAVL-2021-GPLS CHEFTOP MIND.Maps™ Plus combi oven is a versatile, gas-powered roll-in unit designed for professional kitchens that require efficient, high-capacity cooking. Built with a durable AISI 304 stainless steel chamber, its rounded interior edges improve hygiene by simplifying cleaning. This oven accommodates up to (20) 18-in. x 26-in. sheet pans or (40) hotel pans, offering flexibility for steaming, sous vide, roasting, baking, and grilling. A left-to-right triple-glass door enhances insulation and operator safety, while its marine-grade stainless steel exterior ensures long-lasting durability.

With MIND.Maps™ technology, the XAVL-2021-GPLS CHEFTOP MIND.Maps™ Plus enables users to draw and customize cooking processes directly on its intuitive 9¹/₂-in. touchscreen. This advanced interface reduces training time for staff and expedites adjustments during service, ensuring consistent results. Features like MULTI.TIME allow operators to manage up to 10 simultaneous cooking processes, while CLIMA.Control ensures precise humidity adjustments in 10percent increments. The ROTOR.Klean™ cleaning system provides automated washing for the fan guard and chamber, minimizing maintenance downtime and improving hygiene. Integrated Wi-Fi and USB capabilities enable effortless storage and sharing of HACCP data and recipes.

Product Details

• CHEFTOP MIND.Maps™ Plus series
• Full-size roll-in design
• Steam generator is boiler-based
• Capacity: (20) sheet pans or (40) hotel pans
• Exterior made of marine-grade stainless steel
• Interior crafted of high-resistance AISI 304 stainless steel
• Rounded edges inside the chamber
• LED lighting embedded in the door
• Triple-glass door with left-to-right opening
• Anti-tip tray supports
• Door-integrated drip collection system
• 4-speed fans and high-performance heating elements
• Temperature holding range: 86-500 degrees F

User Interface

• Wi-Fi included
• USB and Wi-Fi: upload/download HACCP data and programs
• MIND.Maps™ 9¹/₂-in. touch control panel
• 9 manual cooking steps
• CHEFUNOX recipe automation
• Manage up to 10 cooking processes with MULTI.TIME
• MISE.EN.PLACE synchronizes pan insertion
• READY.COOK quick-start function
• SMART.Preheating system
• SENSE.Klean provides cleaning suggestions
• Humidity adjustable with CLIMA.Control
• ADAPTIVE.Cooking™ technology
• Humidity managed by CLIMALUX™
• Saturated steam with STEAM.Maxi™
• Dry chamber with DRY.Maxi™
• Auto-reversing fans with AIR.Maxi™
• Delta T cooking supported with core probe
• SOUS-VIDE compatible
• 4-speed fan system

Cleaning Features

• ROTOR.Klean™ automated washing system
• Special washing system for fan guard
• DET&Rinse™ detergent container integrated

Dimensions & Utilities

• Overall dimensions: 35¹/₈ in. W x 45⁵/₆ in. D x 73⁷/₈ in. H
• 307,093 BTU/hr.
• Gas hook-up: 1-in. NPT
• 120 V/60 Hz/1 ph
• 2.6 kW power draw

Product Features

*Unox XAVL-2021-GPLS (GAS 110V) is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

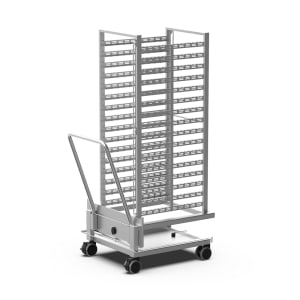

CHEFTOP MIND.Maps™ Plus Combi Oven/Steam Oven is a gas roll-in oven that combines heat, hot air flow and steam. Floor model, (20) 18" x 26" full size sheet or (40) hotel size pan capacity, MIND.Maps™ technology, programmable menu, 3-5/16" shelf spacing, glass door, left-to-right door opening, XEVTL-2021 trolley included (holds (40) full hotel size pans only, will need adapter grids GRP521 to convert to hold (20) 18”x 26” full size sheet), marine grade stainless steel interior & exterior, 2.6kW, 120v/60/1-ph, 307,093 BTU, NSF, cETLus, ENERGY STAR®, (gas lines is not included with the oven and must be purchased separately)

*Image may not depict product color, inclusions or accessories.

2-year Parts; 1-year Labor
