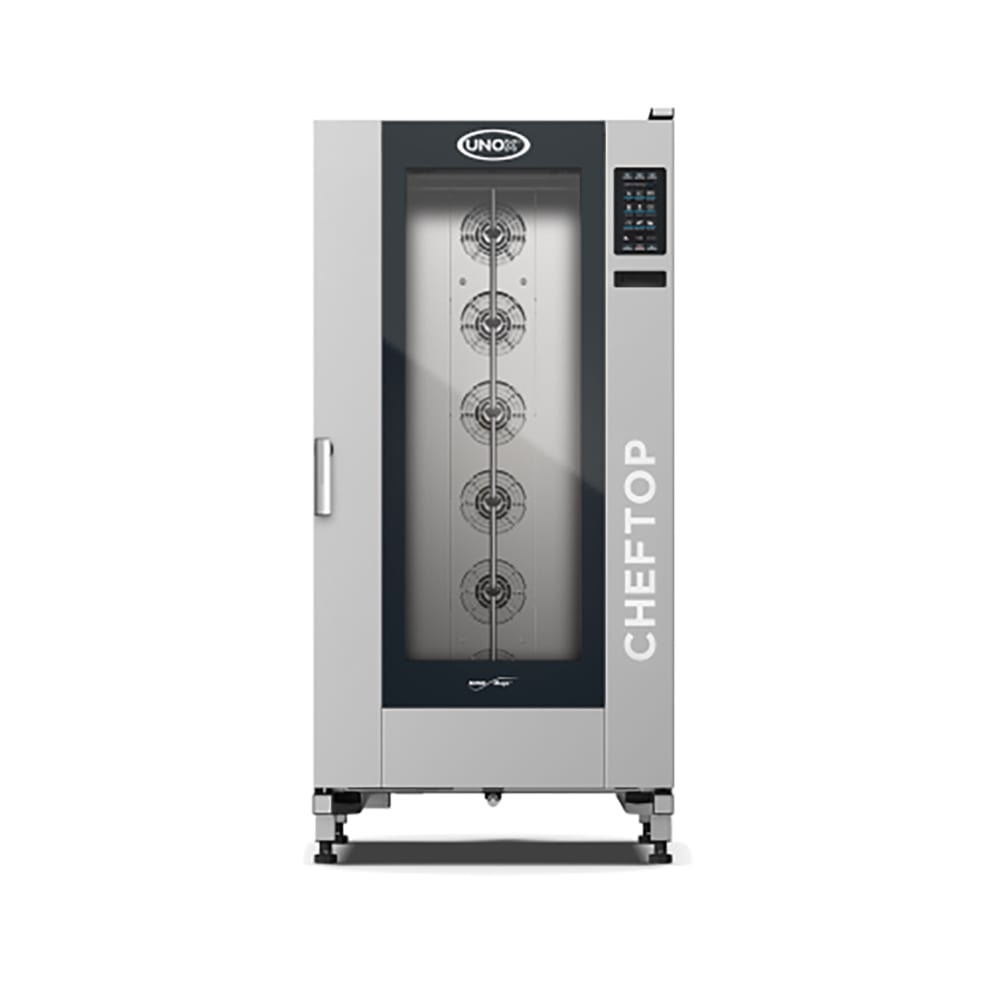

Unox XAVL-2021-DPLS CHEFTOP MIND.Maps™ Full Size Roll In Combi Oven - Boiler Based, 208-240v/3ph
Retail Price: $42,800.00
$34,894.84 /Each
Selected Hinge: Right Hinge
Left Hinge
Ship times may vary due to supply chain constraints. Please contact our Sales Team if you need this item in a specified time frame.
White Glove Delivery
Contact your sales rep for availability
Similar Products in Stock Now
Looking for ENERGY STAR® Combi Ovens?
See our selection of Unox ENERGY STAR® Combi Ovens below

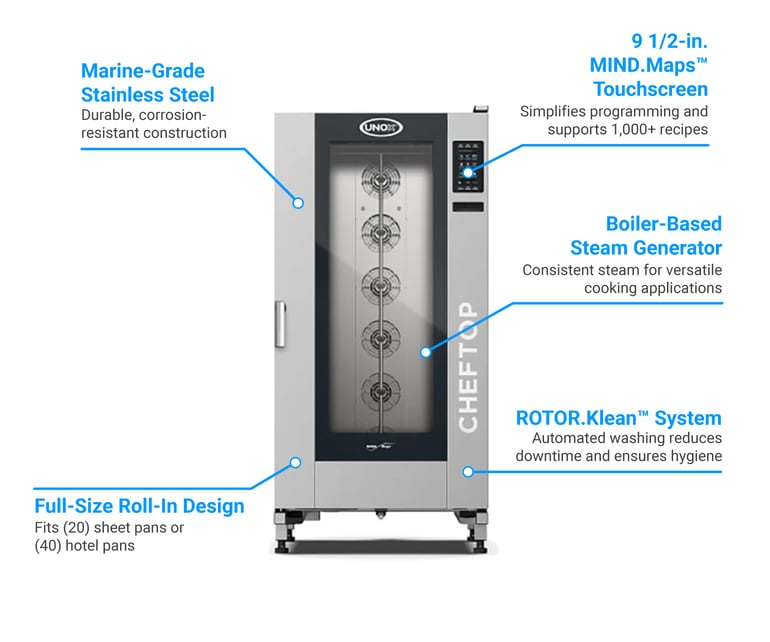

Unox XAVL-2021-DPLS Description
The Unox XAVL-2021-DPLS CHEFTOP MIND.Maps™ Plus combi oven is an electric roll-in unit built to handle the demands of high-capacity kitchens. Featuring a boiler-based steam generator, this oven ensures consistent steam production for baking, roasting, steaming, sous vide, and grilling. Its durable marine-grade stainless steel construction resists corrosion, while the high-resistance AISI 316L stainless steel chamber includes rounded edges for easier cleaning. With capacity for (20) 18-in. x 26-in. sheet pans or (40) hotel pans, and a triple-glass door with left-to-right opening, this oven is designed for efficient and versatile operation in professional kitchens.
With advanced cooking and cleaning technology, the XAVL-2021-DPLS CHEFTOP MIND.Maps™ Plus streamlines workflows. Its 91/2-in. MIND.Maps™ touchscreen simplifies recipe programming and supports over 1,000 automated settings, while MULTI.TIME manages up to 10 cooking processes simultaneously. CLIMA.Control ensures precise humidity adjustments in 10 percent increments, and the READY.COOK function expedites preheating for peak service times. For maintenance, the ROTOR.Klean™ system automates washing, SENSE.Klean suggests cleaning cycles, and the integrated DET&Rinse™ detergent container simplifies upkeep. Additionally, Wi-Fi and USB capabilities provide HACCP compliance and easy recipe sharing, ensuring smooth kitchen operations.
Product Details
- CHEFTOP MIND.Maps™ Plus series
- Full-size roll-in design
- Boiler-based steam generator
- Holds (20) sheet pans or (40) hotel pans
- Marine-grade stainless steel construction
- Cooking chamber crafted of high-resistance AISI 316L stainless steel
- Rounded interior edges
- Cooking chamber lighting through LED lights embedded in the door
- Triple-glass door with left-to-right opening
- Tray supports with anti-tip system
- Drip collection system integrated in the door (works even when the door is open)
- 4-speed fan system and high-performance heating elements
- Temperature holding range: 86-572 degrees F
User Interface
- Integrated Wi-Fi
- Wi-Fi and USB data: download/upload HACCP data and programs
- 91/2-in. MIND.Maps™ touch control panel
- Up to 9 manual cooking steps
- CHEFUNOX automated recipes
- MULTI.TIME cooking management
- MISE.EN.PLACE synchronization
- READY.COOK quick-start settings
- SMART.Preheating
- SENSE.Klean cleaning suggestions
- Humidity adjustable with CLIMA.Control
- ADAPTIVE.Cooking™ technology
- CLIMALUX™ humidity control
- Saturated steam with STEAM.Maxi™
- Dry chamber with DRY.Maxi™
- Auto-reversing fans with AIR.Maxi™
- Delta T cooking supported with core probe
- SOUS-VIDE compatible
- 4-speed fan system
Cleaning Features
- ROTOR.Klean™ automatic washing system
- Automatic special washing behind the fan guard
- DET&Rinse™ detergent container integrated
Dimensions & Utilities
- Overall dimensions: 351/8 in. W x 455/6 in. D x 737/8 in. H
- 208-240 V/60 Hz/3 ph, (plug not included)
- 53.7/71 kW
- 164/172.5 A maximum draw
- 175/200 A required breaker size
- Power cable requirements: 4 x AWG 00 (208 V) / 4 x AWG 000 (240 V)
Product Features
*Unox XAVL-2021-DPLS is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.
From The Manufacturer
CHEFTOP MIND.Maps™ Plus Combi Oven/Steam Oven is an electric roll-in oven that combines heat, hot air flow and steam, floor model, (20) 18" x 26" full size sheet or (40) hotel size pan capacity, MIND.Maps™ technology, programmable menu, 3-5/16" shelf spacing, glass door, left-to-right door opening, XEVTL-2021 trolley included (holds (40) full hotel size pans only, will need adapter grids GRP521 to convert to hold (20) 18”x 26” full size sheet), marine grade stainless steel interior & exterior, 53.7-71kW, 208-240v/60/3-ph, NSF, cMETus, (water line to connect from oven to ¾” mpt water connection with in three feet of water placement is included)
*Image may not depict product color, inclusions or accessories.
Unox XAVL-2021-DPLS Specifications
| Spec Attribute | Spec Value |
|---|---|
| Manufacturer | Unox |
| Controls | Touch Screen |
| Depth (in) | 45.83 |
| Hinge Configuration | Right |
| Heat | Electric |
| kW | 53.7/71 |
| Hertz | 60 |
| Height (in) | 73.88 |
| No. of Compartments | Single |
| Pan Type | Half Size Steam Pans |
| Pan Type | Full Size Steam Pans |
| Pan Type | Half Size Sheet Pans |
| Pan Type | Full Size Sheet Pans |
| Phase | 3 |
| Rating | Best |
| Sheet Pan Capacity | 20 Full |
| Size | Full Size |
| Steam Generator | Boiler-Based |
| Steam Pan Capacity | 40 Full |
| Steam Source | Water Reservoir |
| Series | CHEFTOP MIND.Maps™ |
| Special Features | USB Port |
| Special Features | Roll-In |
| Special Features | HACCP Record Keeping |
| Product Type | Cooking Equipment |
| Product | Combi Ovens |
| Voltage | 208/240 |
| Width (in) | 35.13 |
| Warranty | 2-year Parts; 1-year Labor |
| Weight | 747.40 |
