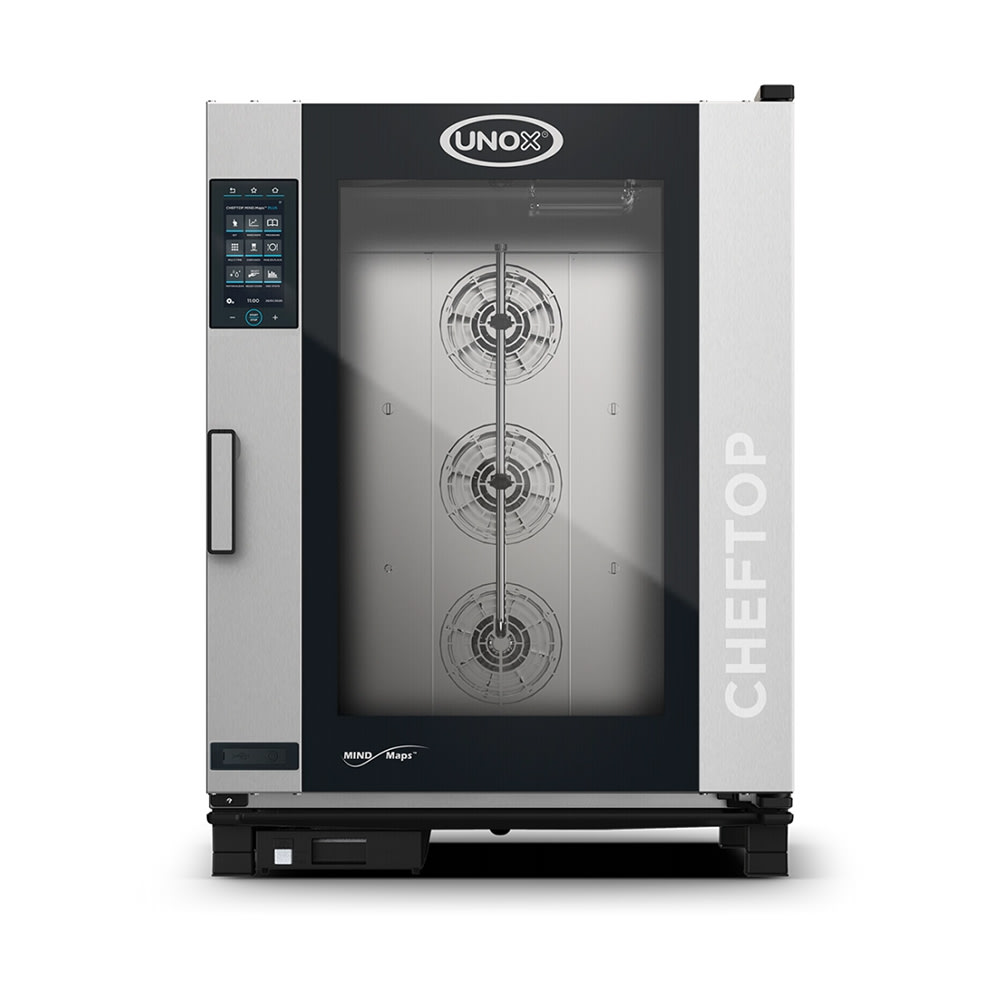

Unox XAVC-10FS-EPLM CHEFTOP MIND.Maps™ Half Size Combi Oven - Boiler Based, 208v/3ph

The Unox XAVC-10FS-EPLM CHEFTOP MIND.Maps™ Plus combi oven features a boiler-based steam generator and integrated water reservoir, delivering consistent steam for steaming, sous vide, roasting, grilling, and baking. This electric countertop unit accommodates up to (10) 18-inch by 26-inch sheet pans or 20 hotel pans, making it an ideal choice for professional kitchens with limited space. Built with a high-resistance AISI 316L stainless steel chamber, this oven ensures long-term durability and hygiene, while its left-to-right triple-glass door improves energy efficiency and operator safety. The included rack slides and water line connection to a ³/₄-inch MPT source provide added convenience during installation and operation.

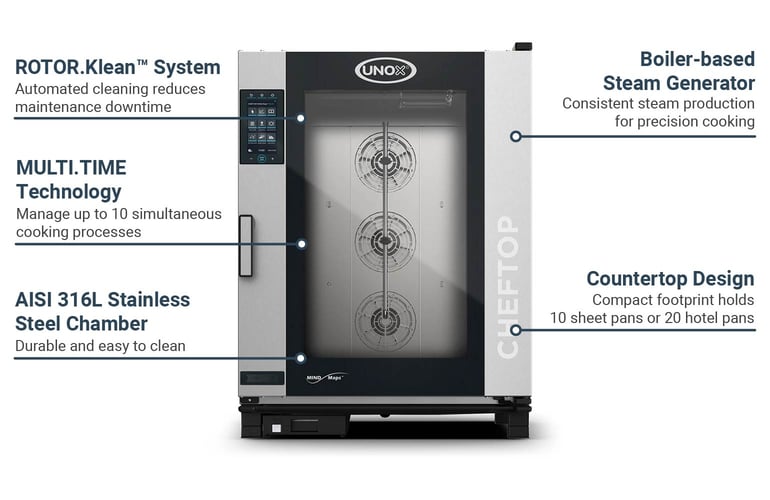

With MULTI.TIME technology, the Unox XAVC-10FS-EPLM oven allows operators to manage up to 10 simultaneous cooking processes, optimizing kitchen productivity. The intuitive 9¹/₂-inch touchscreen enables operators to draw cooking processes directly on the display and adjust parameters such as temperature, time, and humidity with precision. The ROTOR.Klean™ automated washing system and integrated DET&Rinse™ detergent container streamline cleaning, while built-in Wi-Fi and USB connectivity allow for HACCP data storage and seamless recipe sharing.

Product Details

• From the CHEFTOP MIND.Maps series
• Countertop design
• Boiler-based steam generator
• Holds 10 sheet pans or 20 hotel pans
• AISI 316L stainless steel chamber
• Rounded edges
• Triple-glass door, left-to-right opening
• LED chamber lighting
• Tray supports with anti-tip system
• Drip collection system
• 4-speed fan system
• Temperature holding range: 86-500 degrees F

User Interface

• Integrated Wi-Fi
• USB connectivity
• MIND.Maps™ touch control panel
• Up to 9 manual cooking steps
• CHEFUNOX automated recipes
• MULTI.TIME cooking management
• MISE.EN.PLACE synchronization
• READY.COOK quick-start settings
• SMART.Preheating
• SENSE.Klean cleaning suggestions
• Humidity adjustable with CLIMA.Control
• ADAPTIVE.Cooking™ technology
• CLIMALUX™ humidity control
• Saturated steam with STEAM.Maxi™
• Dry chamber with DRY.Maxi™
• Auto-reversing fans with AIR.Maxi™
• Delta T cooking supported with core probe
• SOUS-VIDE compatible

Cleaning Features

• ROTOR.Klean automatic washing system
• Special washing behind fan guard
• DET&Rinse detergent container

Dimensions & Utilities

• 33⁷/₈ in. W x 38¹/₁₆ in. D x 45³/₄ in. H
• 66 A, 22 kW
• 208 V/60 Hz/3 ph, (hardwired)

Product Features

*Unox XAVC-10FS-EPLM is free shipping eligible. Users must be signed in with an order total greater than $500 and be shipping to the 48 contiguous states.

From The Manufacturer

CHEFTOP MIND.Maps™ Plus Combi Oven/Steam Oven is an electric countertop oven that combines heat, hot air flow and steam. (10) 18" x 26" full size sheet or (20) hotel size pan capacity, MIND.Maps™ technology, programmable menu, 2-11/16" shelf spacing, glass door, left-to-right door opening, stainless steel interior & exterior, WIFI/USB for data transfer to HACCP software, 29kW, 70 amps, cMETus, NSF, ENERGY STAR® (cooking chamber built from 316L stainless steel), The water line to connect from oven to ¾” mpt water connection with in three feet of water placement is included. Ovens come standard with rack slides for sheet pans.

*Image may not depict product color, inclusions or accessories.

2-year Parts; 1-year Labor
